collapse expand iconDescription

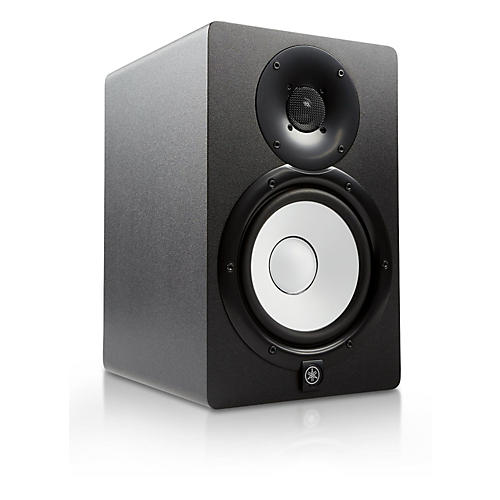

Yamaha's revolutionary HS7 nearfield studio monitor delivers Yamaha's signature mix-translation accuracy that audio engineers and producers have relied on for decades. With the inherited legacy of the iconic NS-10s and distinctive white cones, the HS7 provides transparent sonic honesty for professional studios and passionate home producers. The bi-amplified 6.5" cone woofer and 1" dome tweeter are powered by an integrated amplifier perfectly matched to the speaker units for optimized performance. Adjustable room control and high-frequency trim switches allow for custom tailoring to any monitoring environment.

High-performance Speakers for Unparalleled Accuracy

The HS7's elegant white-cone speakers are mounted to a vibration-eliminating system for full sonic potential. The woofer's oversized magnet provides tight, controlled bass response while the tweeter's advanced frame minimizes high-frequency loss for remarkable clarity. The result is smooth, precise audio across the spectrum.

Built-in Bi-amplification for Superior Sound

As powered bi-amplified monitors, the HS7 offers the convenience of not needing external amplifiers while ensuring the amplifiers are optimized for the speaker units. Separate amplifiers for the woofer and tweeter eliminate interaction and passive crossover phase issues, allowing both units to perform at their best for high sonic quality.

Advanced Magnetic Design for Wide, Dynamic Range

The HS7's oversized magnets and advanced magnetic circuit design produce a powerful, uniform magnetic field for exceptionally smooth, wide-range response and dynamic capability.

Room Control and High-Frequency Trim for Optimal Response

With adjustable room control and high trim switches, the HS7 provides versatility for any monitoring environment. The room control compensates for low-end exaggeration from wall or corner placement, while the high trim adjusts high-frequency response. These controls allow for tailored performance no matter the setup.

Yamaha HS7 6.5" Powered Studio Monitor (Each)
Yamaha HS7 6.5" Powered Studio Monitor (Each)
Yamaha HS7 6.5" Powered Studio Monitor (Each)

collapse expand iconFeatures

  • Size: Nearfield
  • System type: Active
  • Configuration: 2-way
  • Low-frequency driver: 6.5"
  • Mid-frequency driver: Not applicable
  • High-frequency driver: 1"
  • Full-range driver: Not applicable
  • Driver type: Info not available
  • Frequency response: 43Hz–30kHz
  • Max peak SPL: Info not available
  • Amplifier class: Info not available
  • Output power: 95W
Onboard Features
  • Input connectors: XLR, TRS
  • Standby mode: Info not available
  • Acoustic space control: Yes
  • Power indicator: Yes
  • Width: 8.3"
  • Height: 13.1"
  • Depth: 11.2"
  • Weight: 18.1 lb.
  • Enclosure type: Ported

collapse expand iconSpecs

Speaker type 2-way bi-amp powered studio monitor
Frequency range (-10dB) 43Hz - 30kHz
Components LF 6.5" cone
HF 1" dome
Crossover 2kHz
Output power 95W (LF:60W, HF:35W)
I/O connectors XLR3-31 type (balanced), PHONE (balanced)
Power consumption 55W
Shape Bass-reflex type
Cabinet material MDF
W 210mm (8.3")
H 332mm (13.1")
D 284mm (11.2")
Net weight 8.2kg (18.1 lbs.)
Others LEVEL control (+4dB/center click) , EQ: HIGH TRIM switch (+/- 2dB at HF) / ROOM CONTROL switch (0/-2/-4 dB under 500Hz)
