Description

The Yorkville PSA1 Paraline 4x6" powered loudspeaker combines cutting-edge technology with robust power for professional-grade sound reinforcement. Delivering 1,200W of peak power (700W program), it ensures dynamic, distortion-free performance for live events and installations. With four 6" neodymium woofers and two 1" compression drivers, the PSA1 produces tight bass and crisp highs, supported by the patented Paraline lens for precise sound coverage. Its 15º vertical dispersion and 110º horizontal spread offer wide, uniform audio ideal for small to mid-sized venues. Built for durability and ease of use, this lightweight yet powerful cabinet ensures reliable performance wherever you need it.

Wide Coverage With Paraline Technology

At the heart of the Yorkville PSA1 is its innovative Paraline lens, designed for precise sound projection. This unique technology shapes the wavefront to match the cabinet’s 110° horizontal and 15° vertical dispersion, ensuring every listener hears balanced, consistent audio. The result is exceptional clarity and control, even in challenging acoustic environments. This feature makes the PSA1 a powerful tool for delivering professional-grade sound to audiences of all sizes.

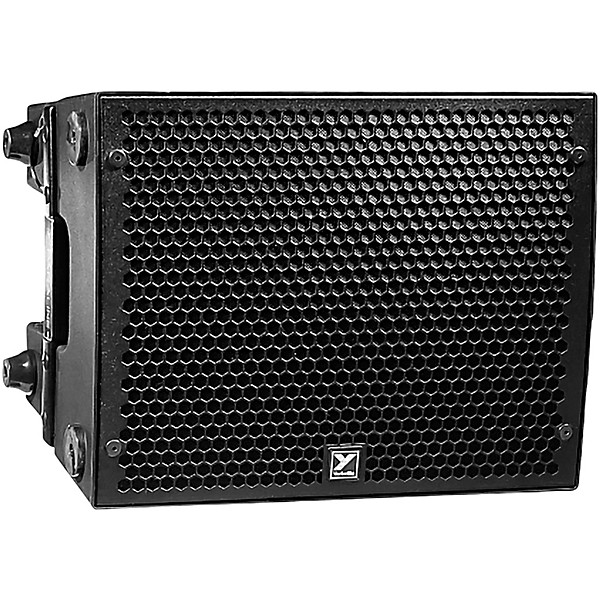

Yorkville PSA1 Paraline 4x6" Powered Loudspeaker
Yorkville PSA1 Paraline 4x6" Powered Loudspeaker
Yorkville PSA1 Paraline 4x6" Powered Loudspeaker

Features

  • 1200W peak power delivers clean, powerful sound for large venues
  • Four 6" neodymium woofers provide tight bass and quick response
  • Two 1" HF drivers ensure clear highs with minimal distortion
  • Patented Paraline horn lens shapes sound for precise 110° coverage
  • 15° vertical dispersion reduces interference when stacking multiple cabinets
  • Dual-position pole mount adjusts for optimal audience coverage
  • Optional rigging hardware supports flying up to four cabinets
  • Lightweight ABS enclosure makes transport and setup more manageable

Specs

Type
  • System type: Powered loudspeaker
  • Country of origin: Made in Canada
  • Biampable: Yes (bi-amped configuration)
Power
  • Power rating: 1,200W peak (700W program)
  • HF amplifier power: 75W
  • HF amplifier type: 2-tier Class-H
  • LF amplifier power: 625W
  • LF amplifier type: Class-D
  • Cooling scheme: Convection
  • Power cable: Removable locking IEC input and loop-thru output
  • Power consumption (typ/max): 135VA/225VA
Audio performance
  • Maximum SPL: 128dB peak (125dB continuous)
  • Frequency response (±3dB): 75Hz–20kHz
  • Dispersion (H × V): 110° × 15°
  • Crossover frequency: 1.2kHz
  • Limiter: Peak and average limiting on horn and woofer
Drivers
  • Cabinet configuration: 4 × 6" LF drivers, 2 × 1" HF drivers
  • LF driver(s): 4 × 6" neodymium woofers with 1.75" voice coils
  • LF program power: 1,000W peak (675W program)
  • LF protection: Excursion and RMS limiting
  • HF driver(s): 2 × 1" ceramic compression drivers with 1.75" voice coils
  • HF program power: 200W peak (75W program)
  • HF dispersion: 110° × 15°
  • HF protection: Peak and average limiting

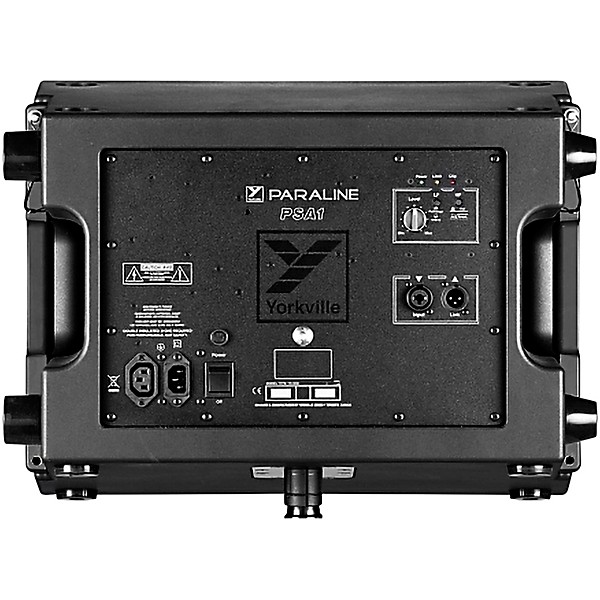

Inputs & controls
  • Inputs: 1 × combo XLR / 1/4" TRS
  • Input sensitivity (Vrms sine): Line in 1.4 at center, 0.35 at max
  • Level controls: Volume
  • EQ controls: HF boost switch, full-range / sub switch
  • LED indicators: Power, limit, clip
Construction
  • Enclosure material: Injection-molded ABS
  • Baffle material: Injection-molded ABS
  • Finish: Painted enclosure
  • Optional finishes: White (PSA1W)
  • Flying hardware: PSA1RIGKIT (1 per cabinet), PSA1FRAME1 (1 per array, up to 4 cabinets)

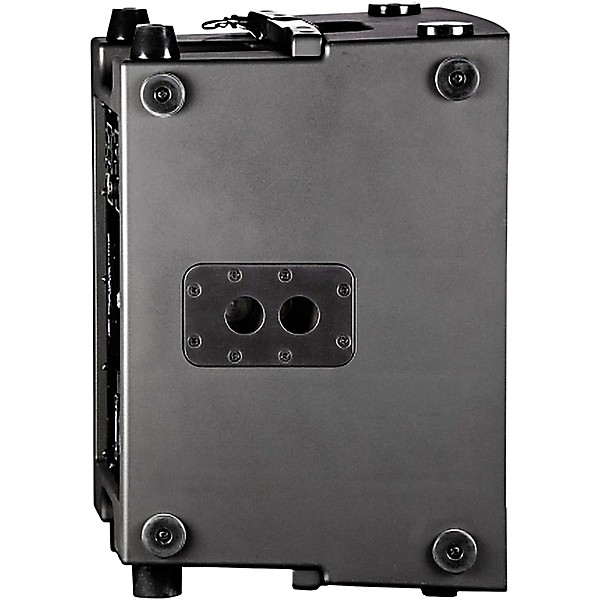

  • Pole mount adapter: Dual-angle 1-3/8" (bottom)
Physical unit
  • Dimensions: 14.5" × 20.5" × 16" (36.8 × 52.1 × 40.6 cm)
  • Weight: 52 lb. (23.6 kg)
