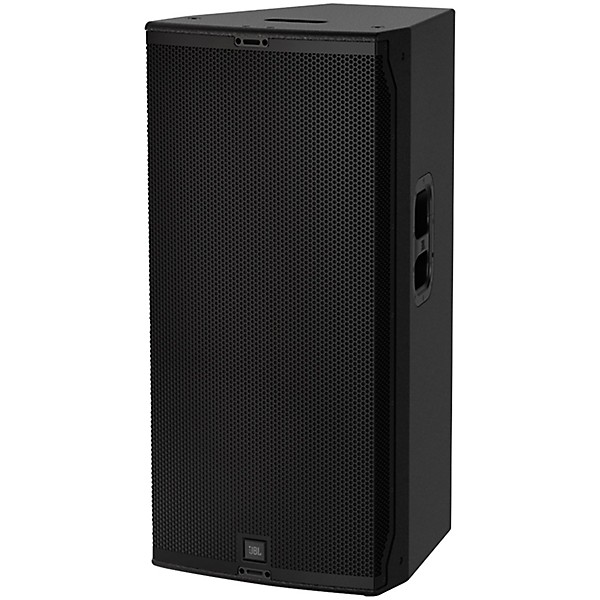

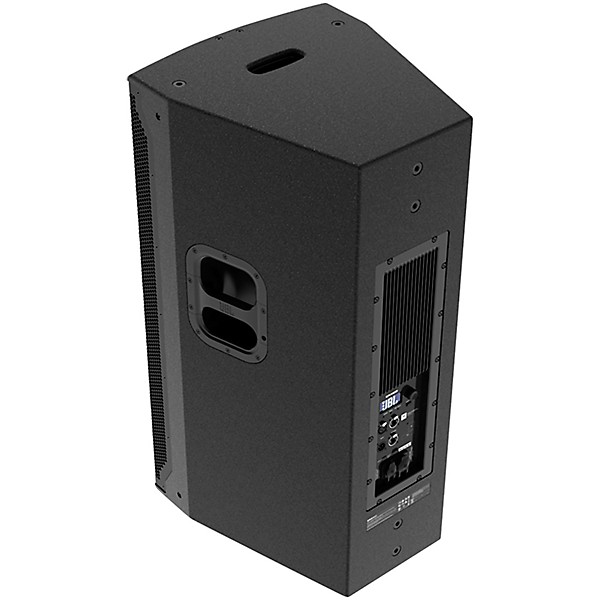

JBL SRX922 12" Dual 3-Way Powered Speaker

Designed as a high-impact point-source solution within the SRX900 family, the JBL SRX922 is an acoustically three-way, dual 12" powered loudspeaker built for applications that demand exceptional output, controlled directivity and full-range performance from a compact enclosure. Its advanced topology pairs dual Differential Drive low-frequency transducers with a horn-loaded 6" mid-frequency driver and a 1.5" annular-diaphragm compression driver, delivering greater headroom and clarity than traditional two-way designs. Dual 90° × 60° Progressive Transition waveguides ensure smooth predictable coverage, while integrated Class-D amplification, advanced DSP with extensive filtering and delay, global power compatibility and networked control via Harman HControl make the SRX922 a powerful plug-and-play solution for mains, side-fills and high-performance point-source deployment within SRX900 systems.

Advanced Three-Way Acoustic Architecture With Dual 12" Authority

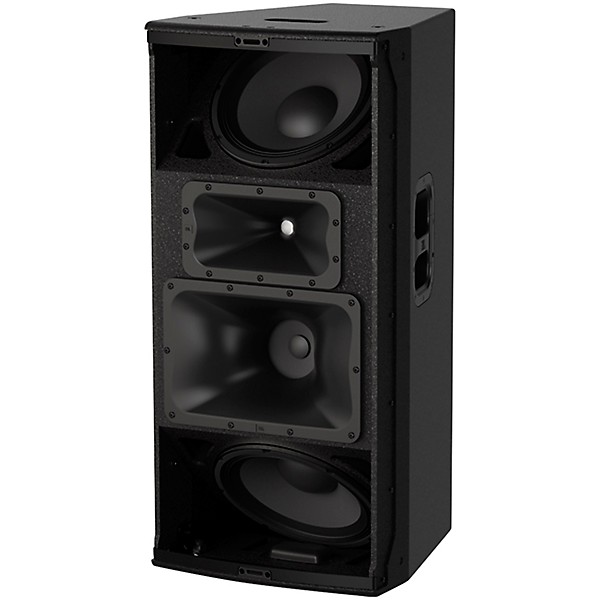

The SRX922’s acoustically three-way design sets it apart from conventional full-range point-source loudspeakers. Dual 12" JBL 2273G woofers deliver significantly greater low-frequency headroom than traditional single-woofer or 15" designs, while a horn-loaded 6" mid-frequency driver allows the low-frequency section to operate in its most efficient range. High frequencies are handled by a 1.5" annular-diaphragm compression driver, delivering clarity and articulation at high output levels. Dual 90° × 60° Progressive Transition waveguides provide smooth controlled coverage across large audience areas, with low-frequency extension down to 40Hz for full-range impact.

High Output and Controlled Directivity

Designed for applications requiring both power and precision, the SRX922 delivers up to 138dB peak SPL with exceptional headroom and tonal consistency. The symmetrical dual-woofer layout improves vertical directivity control, reducing unwanted floor and ceiling reflections while maintaining even coverage throughout the listening area. Carefully optimized voicing and phase response ensure seamless integration with SRX900 line-source systems, making the SRX922 well suited for mixed deployments where point-source and line-array elements must work together efficiently.

Integrated Class-D Amplification and Professional DSP

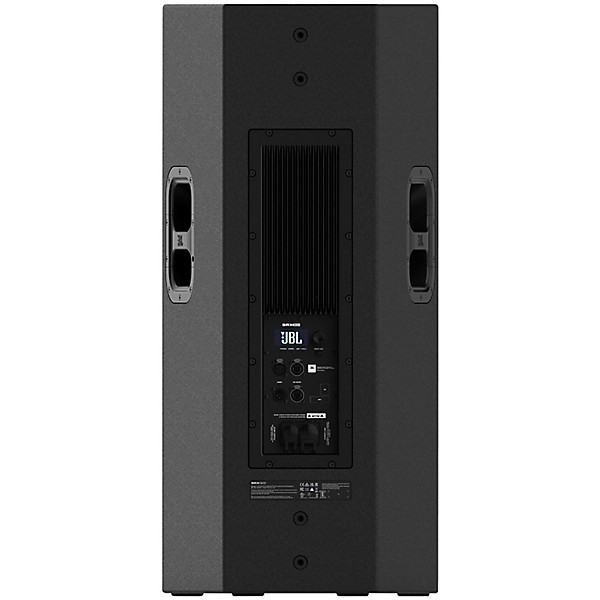

Fully self-powered for global deployment, the SRX922 features onboard Class-D amplification delivering up to 1600W peak power with optimized thermal performance. Integrated DSP provides 24 user-adjustable filters, up to 2,000 ms of delay and essential loudspeaker management tools for precise system tuning. A rear-panel LCD with encoder control enables fast configuration on site, while global AC compatibility supports reliable consistent performance worldwide.

Versatile Rigging, Transport and Installation Options

Built for touring and installed applications alike, the SRX922 offers extensive mounting and deployment flexibility. Eight M10 QuickLink suspension points support fast secure rigging using standard hardware, while the dedicated SRX922 AF Array Frame allows precise angle adjustment for flown configurations. Truss mounting is supported via the RC500 rotating clamp, and professional transport accessories including a front-face dolly, protective cover and vertical transport system simplify handling in demanding production environments. Optional rain protection further extends usability for outdoor events.

Tour-Ready Construction and SRX900 System Integration

Constructed from exterior-grade Baltic birch plywood and finished with JBL’s rugged DuraFlex coating, the SRX922 is designed to withstand the rigors of professional touring while maintaining a clean modern appearance. Network control via dual etherCON ports enables comprehensive monitoring and configuration across Windows, macOS and iPadOS platforms. As part of the SRX900 ecosystem of loudspeakers, subwoofers, accessories and software, the SRX922 serves as a powerful scalable building block, delivering uncompromising performance for high-end live sound and installed systems.
