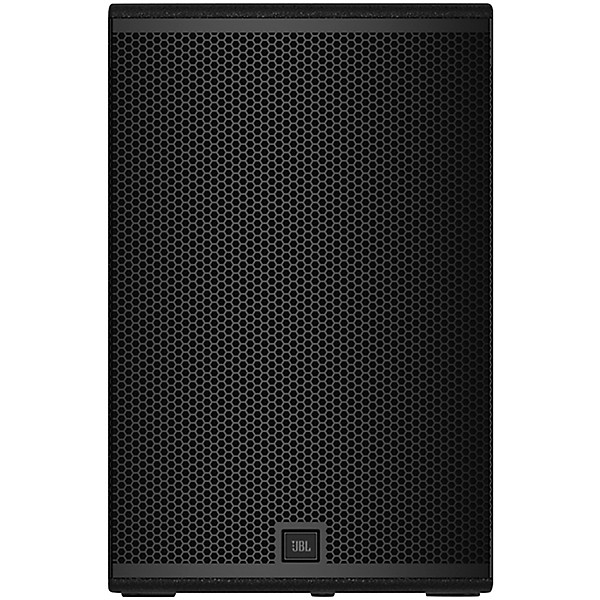

JBL SRX912M 12" 2-Way Powered Speaker

Built to deliver touring-grade performance from an efficient footprint, the JBL SRX912M is a two-way, 12" powered point-source loudspeaker engineered for applications where output, control and consistency matter most. Leveraging JBL’s Differential Drive low-frequency technology, a 1.5" annular-diaphragm compression driver and a 90° × 60° Progressive Transition waveguide, it achieves best-in-class SPL with smooth, predictable coverage. Integrated Class-D amplification, advanced DSP with user-adjustable filters and delay, global power compatibility and networked control via Harman HControl make the SRX912M a true plug-and-play solution for main PA, stage monitoring and front-fill roles within modern SRX900 systems.

High-Performance Acoustic Design With Exceptional Output

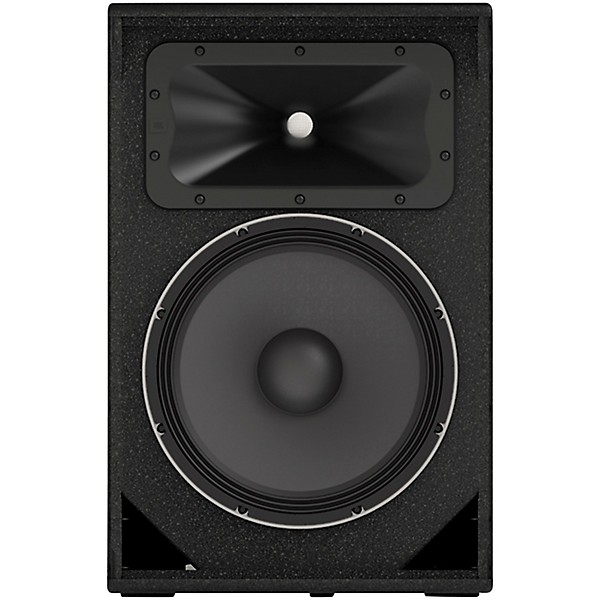

At the core of the SRX912M is a purpose-built two-way acoustic system designed to deliver clarity, punch and consistency across its full operating range. A high-excursion JBL 272F 12" woofer using patented Differential Drive technology provides powerful low-frequency output down to 50Hz while maintaining excellent thermal efficiency. High frequencies are handled by a 1.5" annular-diaphragm neodymium compression driver mounted to a 90° × 60° Progressive Transition waveguide, ensuring smooth coverage, high gain before feedback and uniform response throughout the listening area. With up to 133dB peak SPL, the SRX912M delivers true live-capable performance in a remarkably compact form.

Integrated Class-D Amplification and Advanced DSP

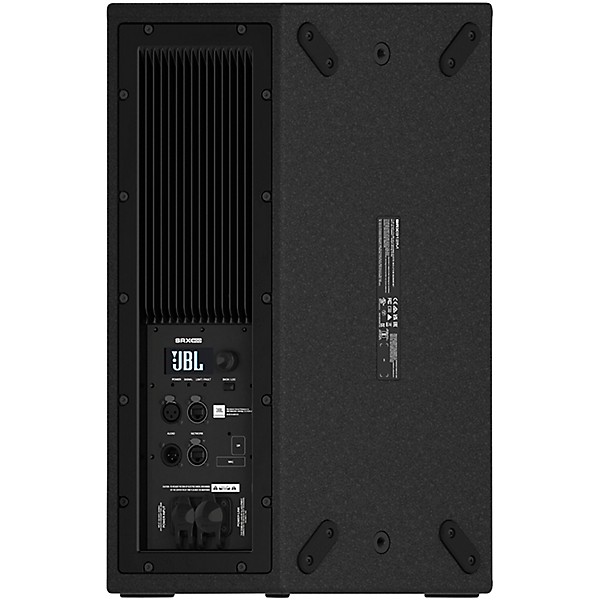

Fully self-powered for maximum reliability, the SRX912M features onboard Class-D amplification delivering up to 880W peak power with optimized DSP loudspeaker management. Internal processing provides 24 user-adjustable filters, up to 2,000 ms of delay and application-specific presets for consistent results across venues and deployments. A rear-panel LCD with encoder control allows fast configuration on site, while global AC operation ensures stable performance anywhere in the world.

Purpose-Built for Stage Monitor, PA and Front-Fill Use

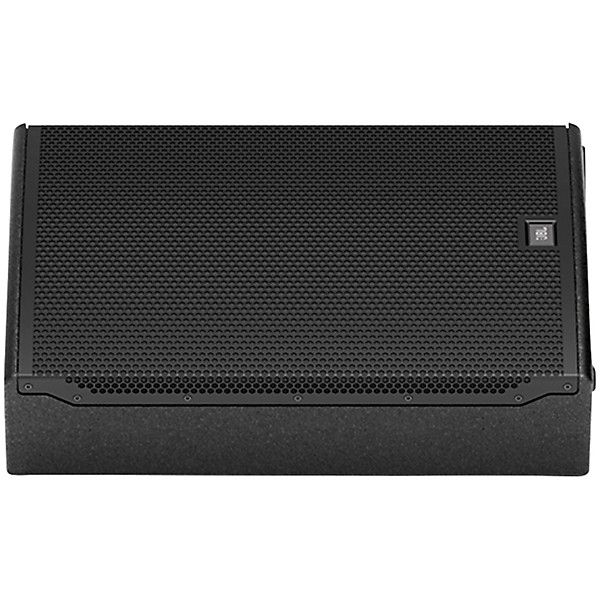

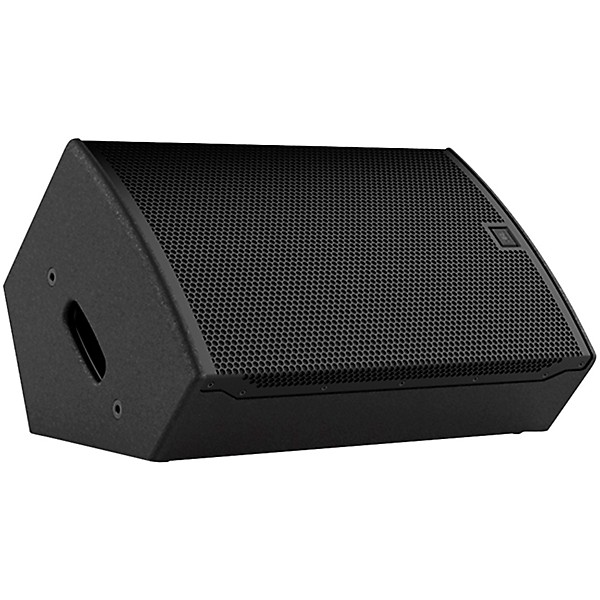

The enclosure design of the SRX912M supports multiple real-world deployment scenarios without compromise. When used as a stage monitor, its low-profile cabinet provides a precise 42º monitor angle for focused performer coverage. As a main PA or front fill, the loudspeaker delivers controlled dispersion and phase-coherent voicing that aligns seamlessly with SRX900 line-source systems, allowing straightforward integration into larger JBL touring rigs.

Flexible Mounting and Installation Options

Designed for maximum versatility, the SRX912M includes six M10 QuickLink suspension points for fast, secure rigging using standard hardware. Dedicated vertical and horizontal U-brackets support a wide range of portable and fixed installations, while truss mounting is supported via standard clamps or JBL’s RC100 rotating clamp for full 360º horizontal adjustment. Both U-brackets are compatible with 50 mm pole adapters for added positioning flexibility, and an optional RC2 rain cover enables outdoor use while maintaining access to controls and connections.

Tour-Ready Construction With Full System Integration

Constructed from outdoor-grade Baltic birch plywood and finished with JBL’s durable DuraFlex coating, the SRX912M is built to withstand the rigors of professional use while maintaining a clean, modern appearance. Network control via dual etherCON ports enables monitoring and configuration across Windows, macOS and iPadOS using JBL’s software ecosystem. As part of the SRX900 family, the SRX912M serves as a powerful, flexible building block within a complete loudspeaker system, delivering confidence, consistency and uncompromising performance wherever sound matters most.
