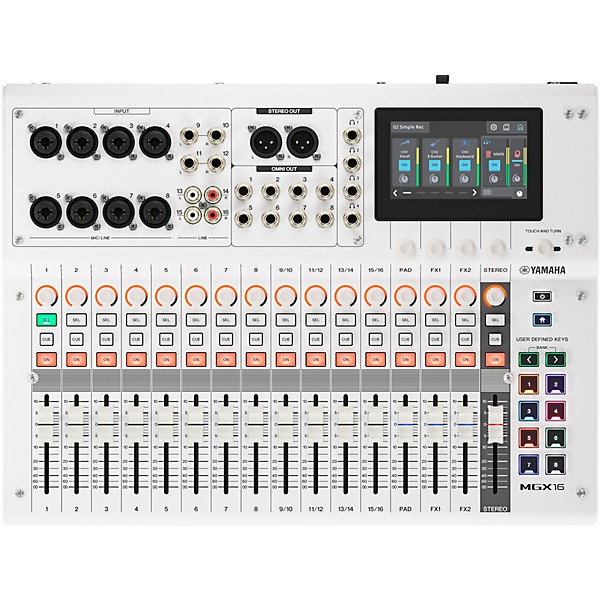

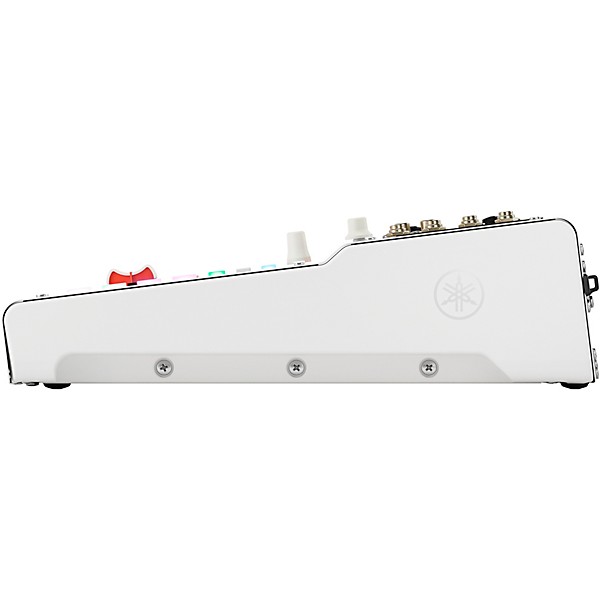

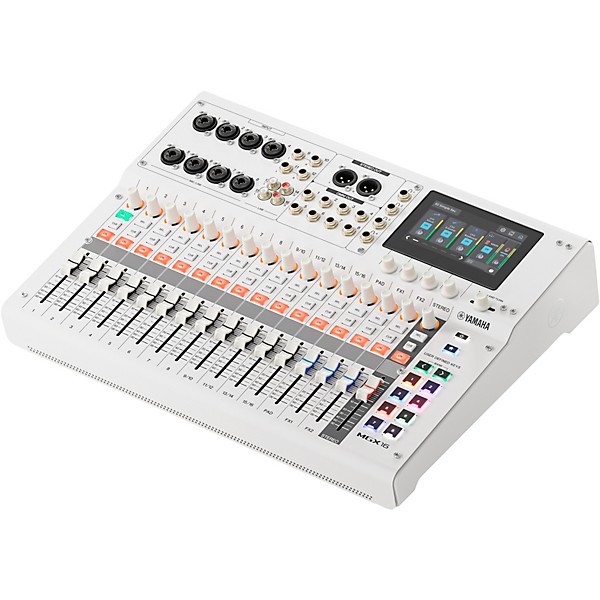

Yamaha MGX16 22-Channel Digital Mixer - White

Designed to handle larger, more demanding audio workflows with speed and confidence, the Yamaha MGX16 combines expanded channel capacity, professional DSP and intuitive digital control in a streamlined mixing console. A responsive 4.3" color touchscreen, 15+1 fader layout and 22-channel mixing with extensive analog I/O allow the MGX16 to adapt easily to live sound, installed venues, podcasting, streaming and studio recording. Dual USB audio interfaces enable flexible multitrack recording and streaming, Bluetooth audio input supports modern playback needs and onboard microSD recording provides reliable backup capture. Paired with Yamaha’s renowned MG-series “True Sound” quality and assistive tools such as Auto Gain, Clip Safe and Scene Recall, the MGX16 delivers powerful, professional mixing capability without slowing down the workflow.

Touch-Controlled Digital Mixing With Expanded Channel Capacity

At the center of the MGX16 is Yamaha’s “Touch and Turn” operating concept, pairing a 4.3" color touchscreen with five dedicated control knobs and a 15+1 non-motorized fader configuration. This hybrid interface delivers fast, confident access to channel processing, routing and effects while preserving the tactile feel engineers expect. With eight mono inputs, four stereo channels, FX returns and sound pad integration, the MGX16 accommodates larger ensembles, multi-mic applications and layered playback sources without compromising operational speed.

Professional DSP and Assist Tools for Consistent Results

Every channel on the MGX16 benefits from Yamaha’s comprehensive DSP suite, including EQ, gate, compression and the Sweet Spot Morphing Channel Strip for intuitive tone shaping. Streaming-focused tools such as ducking, multiband compression and output-stage processing help maintain clear, controlled levels for broadcast and online content. Assistive features including Auto Gain, Clip Safe, Simple/Standard modes and Scene Recall reduce setup time and minimize errors — making the MGX16 effective for both experienced engineers and fast-paced production environments.

Flexible Connectivity and Multitrack Recording Integration

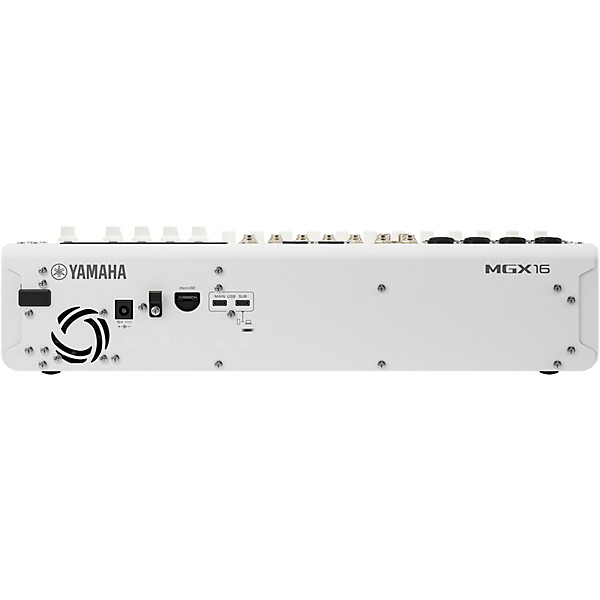

Built for hybrid workflows, the MGX16 offers extensive connectivity and recording options. Dual USB ports provide a 22-in/22-out 32-bit/96kHz MAIN interface for multitrack recording, alongside a secondary 2-in/2-out USB SUB interface for streaming or auxiliary routing. Bluetooth 5.0 enables wireless audio playback, while microSD recording supports up to 16-track capture and 2-track playback for backup or standalone use. With multiple mic/line inputs, stereo channels, eight TRS outputs and four headphone outputs, the MGX16 adapts readily to complex system configurations.

Customizable Sound Pads and Workflow Control

Eight onboard sound pads add both creative and operational flexibility, allowing users to trigger samples, music cues, sound effects, test tones or scene recalls directly from the mixer. The pads — along with assignable control banks — enable deep customization for soundcheck routines, podcast production, live events or theatrical cueing, helping streamline operation where speed, accuracy and repeatability are essential.

A Complete Mixing Ecosystem for Live, Studio and Streaming

Beyond hardware, the MGX16 integrates seamlessly into Yamaha’s broader production ecosystem, including bundled Steinberg software for music creation, podcasting, editing and publishing. Lightweight yet robust, it delivers the reliability of a professional console with the flexibility of modern digital technology. For productions that require more channels, deeper routing and dependable performance across live sound, recording and streaming applications, the Yamaha MGX16 digital mixer stands as a powerful, future-ready centerpiece.
