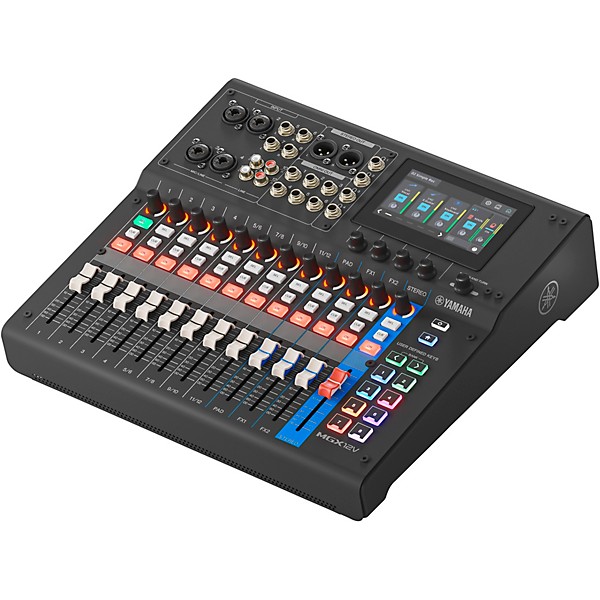

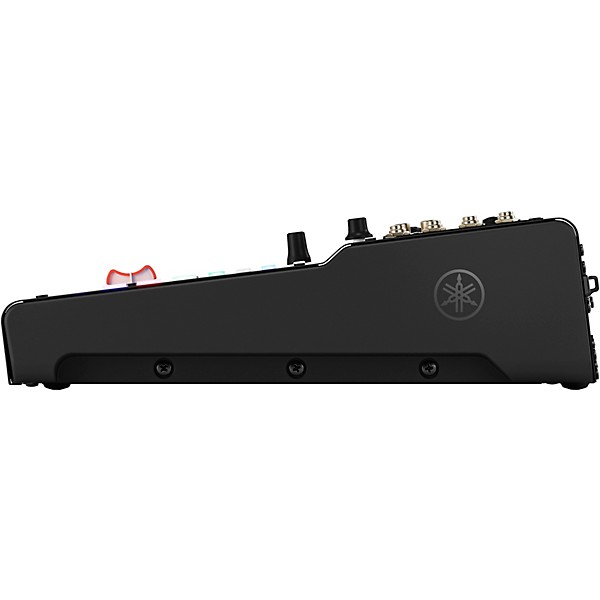

Yamaha MGX12V 18-Channel Digital Mixer With Video Interface - Black

Modern productions increasingly rely on synchronized audio and video workflows, and the Yamaha MGX12V 18-channel digital mixer is built around that reality. Combining Yamaha’s trusted MG-series sound with intuitive digital control and an integrated USB-HDMI audio/video interface, the MGX12V provides a unified hub for live sound, streaming, podcasting, installed systems and content creation. Responsive touch-panel control, physical faders, four mic inputs, four headphone outputs and simultaneous HD video capture with HDMI passthrough allow multi-participant productions to run from a single device—reducing external hardware, simplifying signal flow and improving reliability in hybrid A/V environments.

Touch-Controlled Digital Mixing With Professional DSP Power

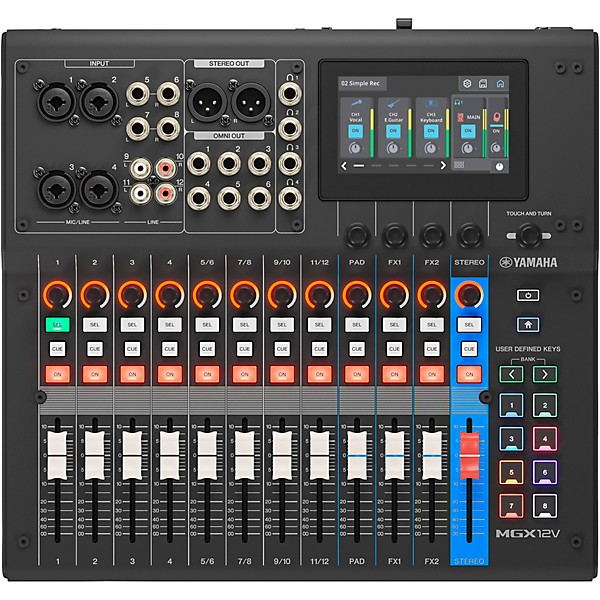

At the core of the MGX12V is Yamaha’s “Touch and Turn” operating concept, pairing a vivid 4.3" color touchscreen with five dedicated control knobs and an 11+1 non-motorized fader layout. This hybrid interface delivers fast, confident access to channel processing, routing and effects while preserving the tactile control engineers expect. Comprehensive onboard DSP includes EQ, gate, compression, Yamaha’s Sweet Spot Morphing Channel Strip and latency-free monitoring, helping ensure clean, consistent results in live, broadcast and recording environments.

Integrated HDMI-to-USB Audio/Video Capture and Passthrough

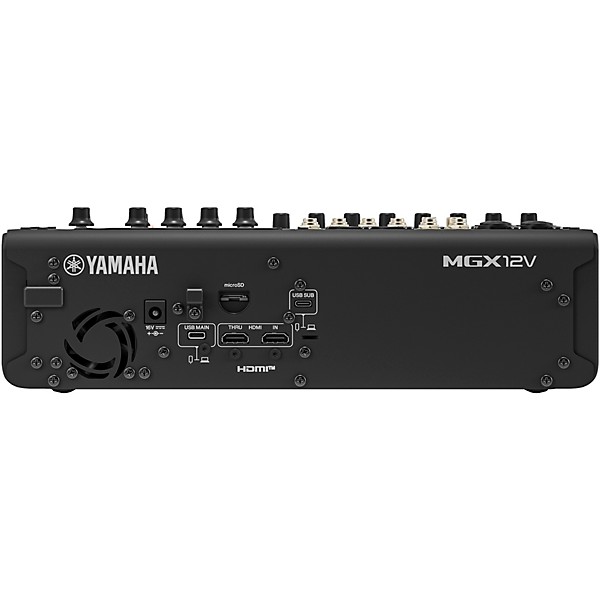

What sets the MGX12V apart is its integrated USB-HDMI interface, enabling simultaneous high-definition video capture and real-time HDMI passthrough alongside full audio mixing. This allows creators to route video directly into a PC while mixing microphones, instruments and playback sources—simplifying hybrid events, livestreams and podcast productions with video. Supporting resolutions up to 4K/60, the MGX12V replaces external HDMI splitters and capture devices, reducing complexity and improving reliability in A/V workflows.

Flexible Connectivity and Multitrack Recording Options

The MGX12V is built for hybrid production with extensive I/O and recording capabilities. Dual USB ports provide an 18-in/18-out 32-bit/96kHz MAIN interface for multitrack recording, plus a secondary 2-in/2-out SUB interface for streaming or routing. Bluetooth 5.0 enables wireless audio input, while a microSD slot supports up to 16-track recording and 2-track playback for backup capture or standalone operation. With multiple mic/line inputs, stereo channels, FX returns and four headphone outputs, the MGX12V adapts easily to multi-participant productions.

Assist Tools, Sound Pads and Fast Workflow Control

Designed to reduce setup time and prevent errors, the MGX12V includes powerful assist tools such as Auto Gain, Clip Safe, Scene Recall and Simple/Standard operation modes. Eight customizable sound pads support both creative cues and utility functions—triggering samples, music cues, sound effects or test tones—with four assignable banks for deeper customization. These tools make the MGX12V especially effective for podcast production, live streaming and event operation where speed and consistency are critical.

A Complete Audio-Visual Mixing Ecosystem

Beyond hardware, the MGX12V integrates into Yamaha’s broader production ecosystem, including bundled Steinberg software for music creation, podcasting, editing and publishing. Built for creators, engineers, performers and streamers working with both sound and picture, it delivers the reliability of a professional mixer with the flexibility of modern audio-video integration. For any production where audio and video must work together seamlessly, the Yamaha MGX12V stands as a confident, future-ready centerpiece.
