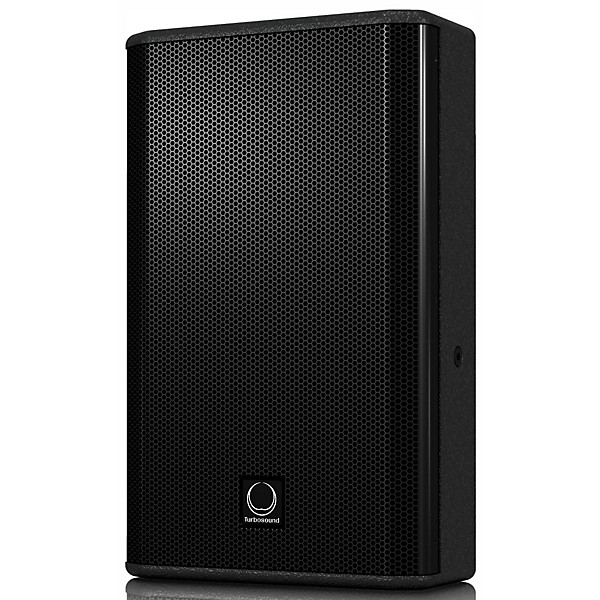

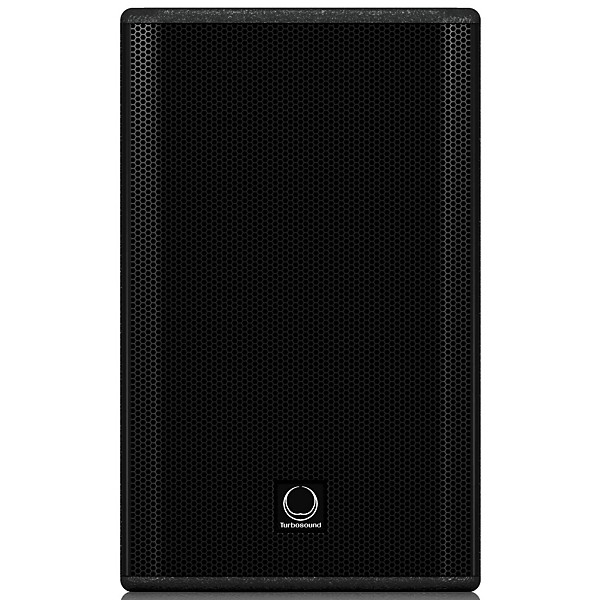

Turbosound Madrid TMS122M 12" Full Range Loudspeaker

The 2-way full-range TMS122M is a switchable passive/bi-amp 12" 3200 Watt loudspeaker system that is suited for a wide range of portable speech and music sound reinforcement applications. The TMS122M is designed to work in conjunction with TURBOSOUND loudspeaker management systems, providing optimal performance for FOH, side fill and floor monitor applications, as well as offering considerable flexibility to readily adapt to varying venue requirements.

The TMS122M loudspeaker features a carbon fiber loaded 12" low frequency driver with inside/outside wound coil with low mass voice coil for improved transient response, and a titanium dome 1.4" neodymium motor compression driver mounted on a 90° horizontal by 50° vertical low distortion waveguide. All drivers are matched with an internal passive crossover network in a reflex-loaded enclosure, and bi-amp mode can be enabled by means of a rear panel switch.

Finished in a highly durable semi matte black paint, the cabinet is constructed from 15 mm (5⁄8") birch plywood, and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam. The TMS122M includes internal M10 threaded rigging points for permanent installation, a dual-angle pole mount socket for high or low height use with 35 mm poles/speaker stands to optimize audience coverage, and durable handles for easy transport. The dual angle wedge shape design also enables the TMS122M to be utilized in low profile stage monitor applications where improved audience line of sight is of paramount importance. Two Neutrik speakON* NL4 connectors are provided for input and link connections to additional enclosures.


2 way full range loudspeaker for portable PA and installation applications
800 Watts continuous, 3,200 Watts peak power

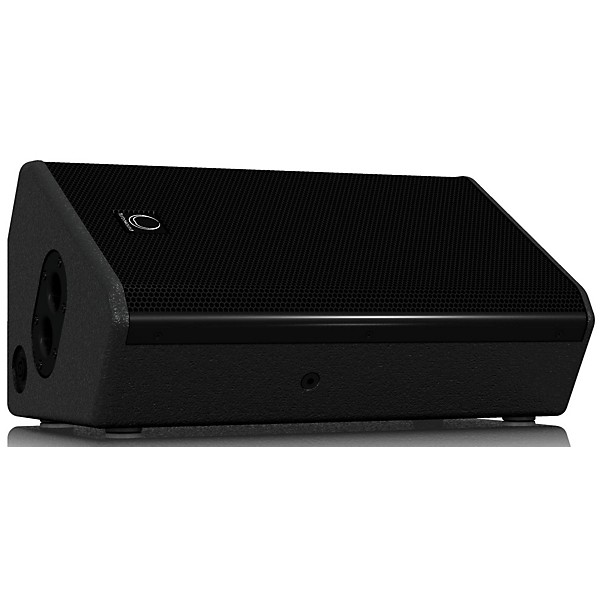

Ideal for FOH, side and drum fill applications
Carbon fibre loaded 12" low frequency driver with inside/outside wound coil
Titanium dome 1.4" neodymium motor compression driver
Switchable passive/bi-amp operation for flexibility of use
Low distortion waveguide provides 90° H x 50° V dispersion
15 mm (5/8") birch plywood enclosure with hard wearing semi matt black paint finish
Rugged powder coated perforated steel mesh grille
Dual angle pole mount for accurate audience coverage
Durable handles for easy lifting and carrying
Multiple internal rigging points for installation applications
Neutrik speakON* NL4 connectors for reliable long life operation
3-Year Warranty Program*
Designed and engineered in England
