collapse expand iconDescription

The PreSonus StudioLive 32SX is a 32 channel digital mixer with built in recording features to handle productions of any scale. Powered by PreSonus' robust FLEX DSP engine, the 32SX offers 40 mixing channels, 26 busses and 286 processors in a compact 25 fader chassis. This innovative mixer allows you to capture up to 64 channels via USB and record directly to an SD card for virtual soundchecks.

Flexible Mixing Options for Any Application

With 16 FlexMixes that can be configured as aux mixes, subgroups or matrix mixes, the 32SX provides nearly limitless routing possibilities. It also includes 24 DCA groups to help manage complex mixes, as well as a touchscreen interface and channel scribble strips for visual feedback. The Fat Channel processing section offers vintage EQ and compression on each channel and output bus.

Record and Play Back with Ease

The 32SX ships with PreSonus' Capture recording software, allowing you to record all 32 channels and a stereo mix via USB or SD card. You can run Capture directly on the mixer or on a Mac or PC for a redundant live recording system. The 32SX also provides 64x64 USB connectivity to interface with DAWs like PreSonus Studio One. An onboard SD card slot allows for quick capture and playback of your tracks for virtual soundchecks.

Expand Your Options with AVB Networking

Thanks to its AVB-enabled Ethernet port, the 32SX networks readily with PreSonus' EarMix 16M personal monitor mixers for customized stage mixes and NSB-series stage boxes for remote inputs. The 32SX's compact size also makes it ideal for any space where desk space is limited.

A Complete Mixing Solution

In addition to its robust features, the 32SX includes UC Surface touch-control software, Studio One Artist DAW software and the Studio Magic plug in suite with emulations of classic studio gear. The 32SX provides an all-in-one mixing and recording solution for productions of any size.

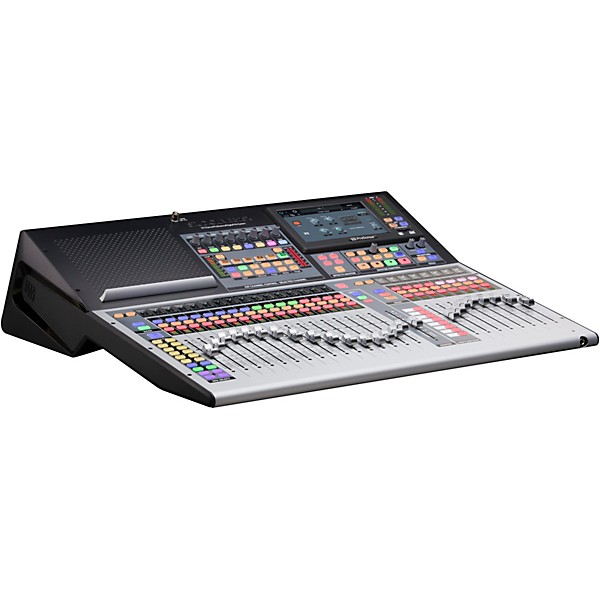

PreSonus StudioLive 32SX 32-Channel Mixer With 25 Motorized Faders and 64x64 USB Interface
PreSonus StudioLive 32SX 32-Channel Mixer With 25 Motorized Faders and 64x64 USB Interface
PreSonus StudioLive 32SX 32-Channel Mixer With 25 Motorized Faders and 64x64 USB Interface

collapse expand iconFeatures

  • Dual-core FLEX DSP Engine powers 286 simultaneous processors, 26 mix buses and 40 mixing channels
  • Fully recallable, 40-input, 32-channel digital mixing console
  • Built-in AVB networking to create a complete ecosystem with PreSonus NSB stage boxes, EarMix 16M personal monitor mixers and SW5E AVB switch
  • Built-in 128-channel (64x64) USB interface—the most of any digital mixer on the market
  • Onboard multitrack SD Card recorder with true Virtual Soundcheck
  • Expandable plug-in processing with vintage EQ and compression options on every input channel and output bus
  • 16 FlexMixes (AUX mixes, subgroups or matrix mixes)
  • 32 mic/line inputs with recallable XMAX preamps
  • 25 touch-sensitive, motorized faders
  • All-new scene management, with scenes organized into projects with scene lock and channel safe
  • Password protected user profiles enable restricting access to specific features
  • FLEX FX multi-effects processor with 4 slots to load reverb emulations and delays with 4 dedicated effects buses
  • Channel scribble strips and input metering
  • DAW Control (Advanced Studio One control integration/MCU emulation for Logic/HUI emulation for Pro Tools)
  • Complete solution: Includes UC Surface mix control software for macOS, Windows, Android and iPad; Capture live-recording software and Studio One Artist DAW for macOS and Windows; compatible with free QMix-UC personal monitoring control for iPhone and Android

collapse expand iconSpecs

  • Analog/digital: Analog
  • Number of channels: 32
  • Busses/groups: 26
  • Aux sends: 16
  • Total inputs: 40
  • Mic preamps: 32
  • XLR/TRS combo jacks: 32
  • XLR only jacks: 0
  • 1/4" only jacks: 0
  • S/PDIF in: No
  • ADAT/optical in: No
  • RCA in: 1 (pair)
  • USB: 2.0 Type B
  • Total outputs: 15 (12 FLEX)
  • XLR out: 6 FLEX, 2 main, 1 mono
  • Sub Group Out: 4 TRS
  • ADAT/optical out: 0
  • RCA out: 1 (pair)
  • AES / EBU: XLR Male
Other Connectivity
  • Connections: USB, 2.0
  • MIDI I/O: N/A
  • Headphone output(s): 1
  • Bluetooth: 4.1
  • AVB: Locking Ethernet
  • I/O expansion: No
Onboard effects
  • Compression: Yes
  • Reverb: Yes
  • Delay: Yes
  • Chorus/flange: Yes
  • Type: Many plug-ins
  • EQ bands: Various types
  • Master graphic: No
  • Width: 25.98"
  • Height: 6.51"
  • Depth: 22.97"
  • Weight: 30 lb.
  • Automation: Through software
  • Fader type: 25 Touch-sensitive
  • Motorized faders: Yes
  • Bundled software: Yes

collapse expand iconWarranty

One year parts and labor warranty.
