Nady

collapse expand iconDescription

The new Nady UHF-4/LT Lavalier Wireless System offers high-quality wireless for an amazingly affordable price. Interference-free operation on select UHF frequencies; companding circuitry for an industry best 120dB dynamic range; and clear, natural sound. DigiTRU Diversity dual-antenna system prevents dropouts and extends range. Tone Squelch blocks potential interference. Full LED indicators keep you on top of things. Unbalanced 1/4" and unbalanced XLR outputs and silent transmitter on/off.

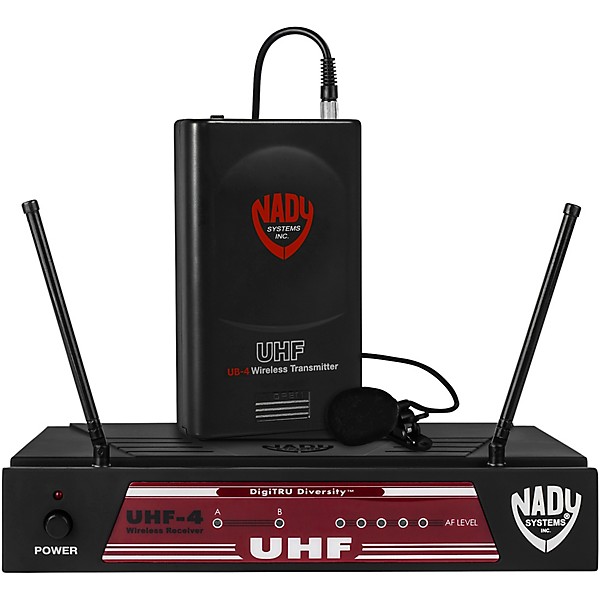

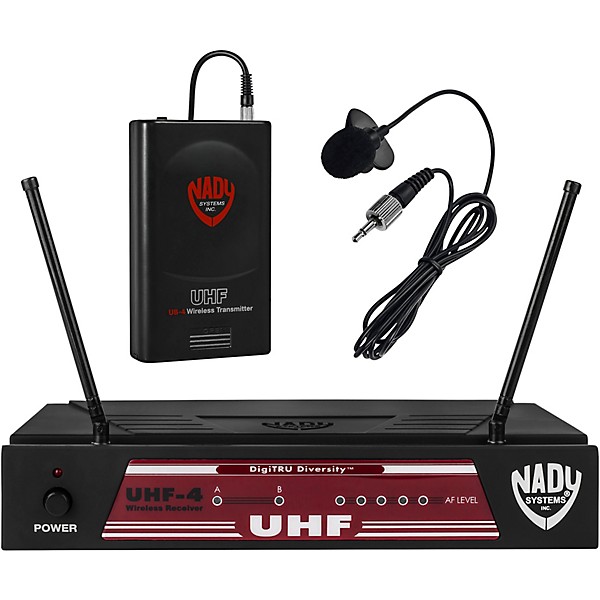

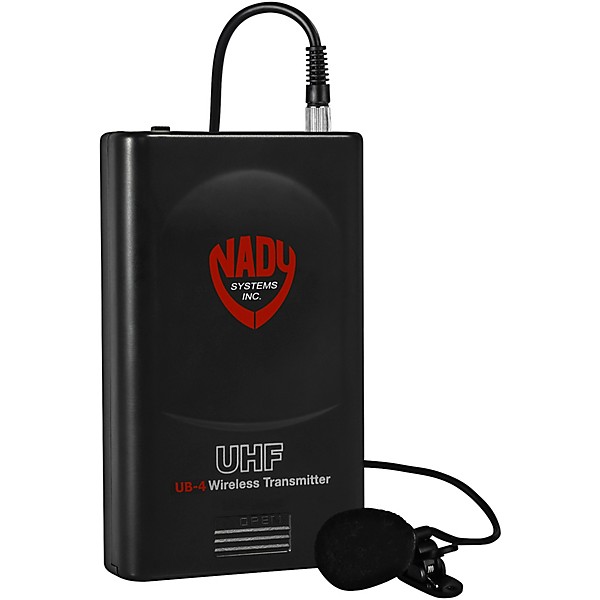

UHF-4/LT Wireless System includes receiver, bodypack transmitter, and Lavalier microphone. Transmitter features status and low-battery indication and a off/standby/on switch. 9V alkaline or NiMH battery provides 4-6 hours continuous use.

collapse expand iconFeatures

  • Unprecedented value in a full-featured single-channel UHF wireless Lavalier mic system
  • Interference-free operation on select UHF frequencies from 794 to 865MHz

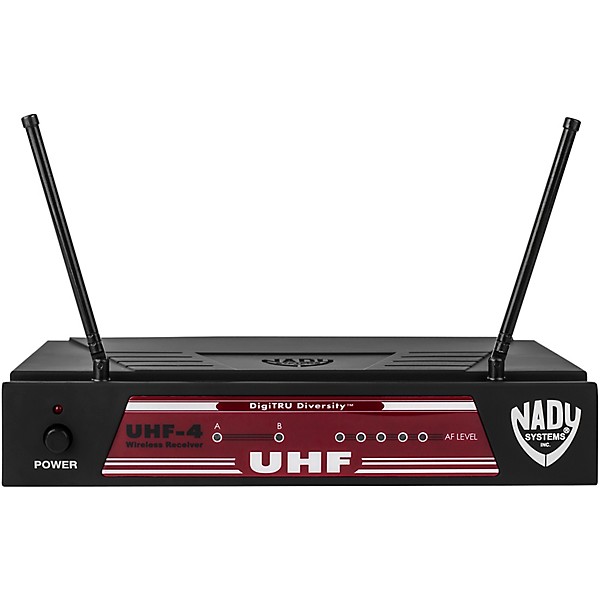

  • Half-rack receiver design
  • Dual folding antennas on front panel
  • Snap-out panel locking tabs for single receiver or dual receiver (side-by-side) rack mounting
  • Exclusive Nady companding circuitry a 120dB dynamic range
  • Clear, natural sound
  • Tone Squelch for locking out potential interference
  • DigiTRU Diversity for maximum range and dropout protection
  • Full LED indicators
  • Both 1/4" unbalanced and XLR balanced outputs
  • Noiseless transmitter ON/OFF switching

collapse expand iconSpecs

  • Frequency Response 30Hz-18kHz, ±3 dB
  • Dynamic Range 120dB
  • Total Harmonic Distortion <0.6%
    RF Carrier Frequency Range UHF, choice of single frequencies in separate bands within 794-865 MHz
  • Frequency Stability ±0.005%, crystal controlled
  • Modulation FM (F3E), ±20KHz normal
  • Operating Range Up to 250 ft. typical (depending on site conditions); up to 500+feet optimum line-of-sight
    • Receiver
    • Reception Mode DigiTRU Diversity (Dual Antenna)
    • Squelch External Control, Tone Key (30.768kHz)
    • Controls Power ON/OFF, Volume Control, Squelch (Mute) Adjust
    • Connectors DC in, 1/4
    • Reception Mode DigiTRU Diversity (Dual Antenna)
    • Squelch External Control, Tone Key (30.768kHz)
    • Controls Power ON/OFF, Volume Control, Squelch (Mute) Adjust

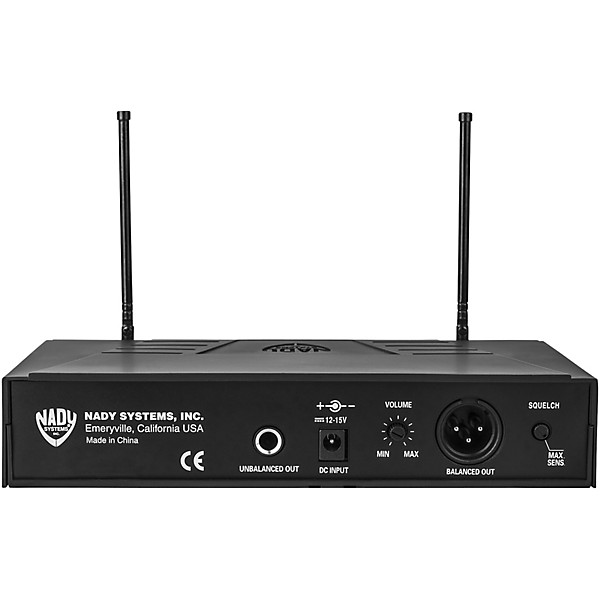

    • Connectors DC in, 1/4" (6.3 mm) unbalanced phone jack (360 mV/no load), XLR balanced output (±24 mV/600 ohm load)
    • LED Indicators Power ON, Diversity A/B, Audio LED Bars +Peak
    • Unwanted Signal Rejection 60dB image and spurious

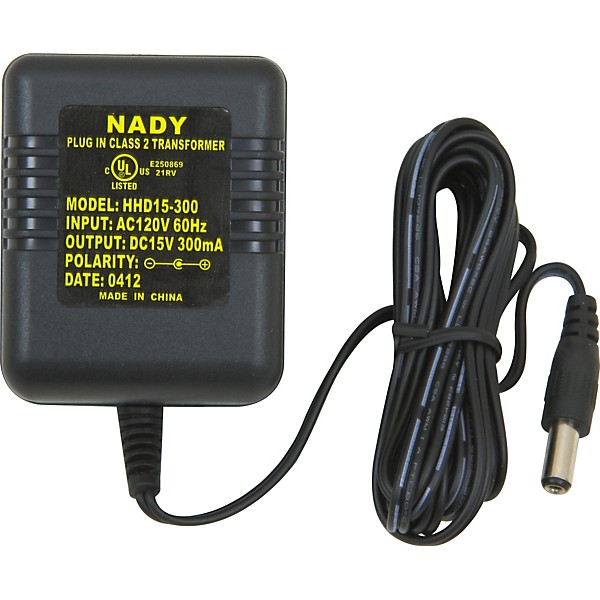

    • Power Requirements DC 15V @300 mA, AC/DC adapter included
    • Dimensions (Max.) 1.75" x 7.5" x 8.1" (4.5 x 19 x 20.6 cm)
    • Weight 0.9 lb (0.41 kg)
    • Antenna 3.5" (9.0 cm), dual telescopic
    • TRANSMITTERS
    • Audio Inputs UB-4 Bodypack: 3.5mm locking mini-jack, switchable inputs: instrument, headworn mic, or Lavalier mic
    • UH-4 Hand-held: Integral Nady DM-10D neodymium
    • Dynamic cartridge
    • Controls UB-4: Power/Standby/Off, Instrument/Headworn Mic/Lav Mic, Input Level
    • UH-4: Power/Standby/Off/Input Level
    • LED Indicator Single color (red), Unit ON (single flash red), Low Battery
    • Alert (steady red)
    • RF Power Out 50mW nominal (maximum allowed by FCC)
    • Harmonic & Spurious Emissions <-50 dB
      Battery UH-4: 9V Alkaline UB-4: 9V Alkaline
    • Battery Life 10 Hours
    • Dimensions UB-4 Bodypack: 4-1/4" x 2-1/2" x 1"
    • (10.8 cm x 6.4 cm x 2.5 cm)
    • UH-4 Hand-held: 9-1/2" x 2"
    • (24 cm x 5.1 cm)
    • Weight UB-4 Bodypack: 3.1 oz. (88 g) without battery
    • UH-4 Hand-held: 6.6 oz. (187 g) without battery
    • Frequency Response 30Hz-18kHz, ±3dB
    • Dynamic Range 120dB
    • Total Harmonic Distortion <0.6%
      RF Carrier Frequency Range UHF, choice of single frequencies in separate bands within 794-865 MHz
    • Frequency Stability ±0.005%, crystal controlled
    • Modulation FM (F3E), ±20kHz normal
    • Operating Range Up to 250 ft. typical (depending on site conditions); up to
    • 500+ feet optimum line-of-sight
    • RECEIVER
    • Reception Mode DigiTRU Diversity (Dual Antenna)
    • Squelch External Control, Tone Key (30.768kHz)
    • Controls Power ON/OFF, Volume Control, Squelch (Mute) Adjust
    • Connectors DC in, 1/4"
    • Reception Mode DigiTRU Diversity (Dual Antenna)
    • Squelch External Control, Tone Key (30.768kHz)
    • Controls Power ON/OFF, Volume Control, Squelch (Mute) Adjust
    • Connectors DC in, 1/4" (6.3 mm) unbalanced phone jack (360 mV/no load), XLR balanced output (±24 mV/600 ohm load)
    • LED Indicators Power ON, Diversity A/B, Audio LED Bars +Peak
    • Unwanted Signal Rejection 60dB image and spurious
    • Power Requirements DC 15V @300 mA, AC/DC adapter included
    • Dimensions (Max.) 1.75" x 7.5" x 8.1" (4.5 x 19 x 20.6 cm)
    • Weight 0.9 lb. (0.41 kg)
    • Antenna 3.5" (9.0 cm), dual telescopic
    • TRANSMITTERS
    • Audio Inputs UB-4 Bodypack: 3.5mm locking mini-jack, switchable inputs: instrument, headworn mic, or Lavalier mic
    • UH-4 Hand-held: Integral Nady DM-10D neodymium
    • Dynamic cartridge
    • Controls UB-4: Power/Standby/Off, Instrument/
    • Headworn Mic/Lav Mic, Input Level
    • UH-4: Power/Standby/Off/Input Level
    • LED Indicator Single color (red), Unit ON (single flash red), Low Battery
    • Alert (steady red)
    • RF Power Out 50mW nominal (maximum allowed by FCC)
    • Harmonic & Spurious Emissions < -50 dB
      Battery UH-4: 9V Alkaline UB-4: 9V Alkaline
    • Battery Life 10 Hours
    • Dimensions UB-4 Bodypack: 4-1/4" x 2-1/2" x 1"
    • (10.8 cm x 6.4 cm x 2.5 cm)
    • UH-4 Hand-held: 9-1/2" x 2"
    • (24 cm x 5.1 cm)
    • Weight UB-4 Bodypack: 3.1 oz. (88 g) without battery
    • UH-4 Hand-held: 6.6 oz. (187 g) without battery
