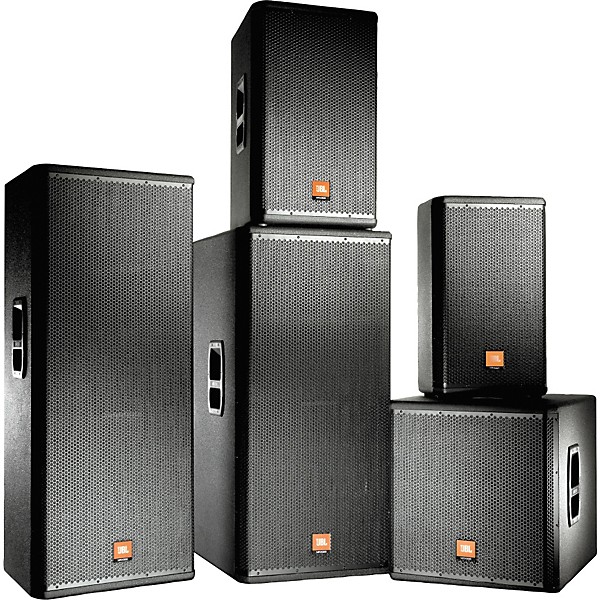

Open Box JBL MRX525 Dual 15" 2-Way Loudspeaker Level 1
Condition:Open Box - Like New
$597.52
Need Help?

Description
The JBL MRX525 dual 15", 2-way dual chamber, bass reflex, main PA speaker is an excellent choice when the application calls for high performance and simplicity. A pair of MRX525 speakers and a single, high-power amplifier comprise a complete sound system capable of reinforcing bass and kick drum or playing high-level music in clubs and other venues. The JBL speaker has 2 - 15" 265H Differential Drive woofers with combined power handling of 800W continuous. For the high frequencies, a 2408H 1.5" annular polymer diaphragm, neodymium compression driver is mounted to a 70 x 70 horn. The 70 coverage angle of the JBL MRX525 loudspeaker is wide enough to provide coverage of an audience when used one-per-side, yet narrow enough to allow splaying of multiple enclosures without excessive coverage overlap. The enclosure is constructed of quality plywood and coated in JBL's rugged DuraFlex finish. The attractive CNC-machined, 16-gauge steel grille wraps around the sides of the enclosure. The grilles are internally lined with an acoustically transparent screen to provide additional driver protection and give this PA speaker a very professional appearance.



Features
- Light weight, high power, and extra low-frequency extension
- Dual 15" Differential Drive woofers for high-power capacity and extended LF performance
- 1.5" annular polymer diaphragm compression driver
- 70 x 70 coverage
- Heavy-duty 16-gauge protective screen backed
- steel grille
- Tough DuraFlex enclosure finish
- Applications:
- Live sound reinforcement for vocals and
- musical instruments
- High-level music playback
Specs
- Frequency range: 40Hz-20kHz
- Frequency response: 57Hz-20kHz
- Sensitivity: 100dB SPL
- Nominal impedance: 4 ohms
- Power capacity (continuous/program/peak): 800W/1600W/3200W (2 hours), 700W/1400W/2800W (100 hours)
- Rated maximum SPL: 135dB SPL Peak
- Coverage pattern: 70 x 70 nominal
- Dimensions: 21"W x 48.75"H x 18"D
- Weight: 84 lbs.
Reviews
5
1 Reviews
0%
of respondents would recommend this to a friend
Reviewed by 1 customers
Awesome
submitted19 years ago
byAncient Cosmic Rocker
fromCa
These puppies will peal the paint off the walls. Matched these with a set of JBL subs for a Christian recording artist band that played at my church. The sound was loud, and very clear but more than that, the sound had a very dominating presence in the room. The group loved the level of performance capable from these awesome speakers.
