Eliminator Lighting

Description

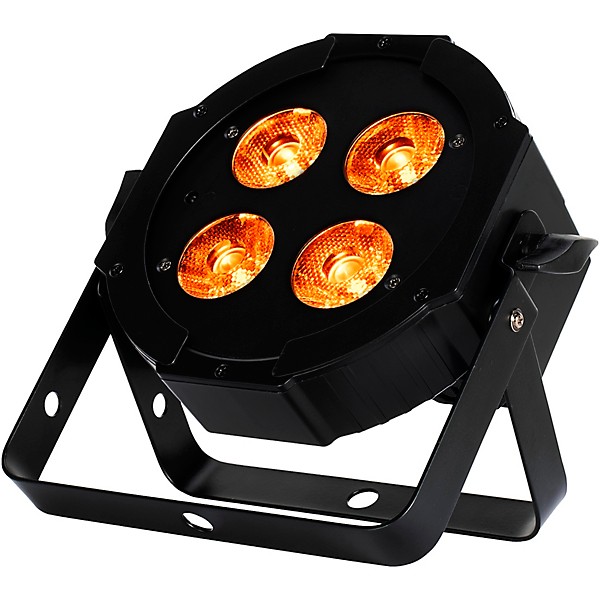

The Mega Hex L Par from Eliminator Lighting is a compact and lightweight LED Par that's packed with innovation. This LED Par boasts four 20-Watt 6-IN-1 Hex LEDs (RGBLA + UV - Red, Green, Blue, Lime, Amber + Ultraviolet), offering a wide spectrum of colors that include captivating shades like hot pink, lime green and electric blue.

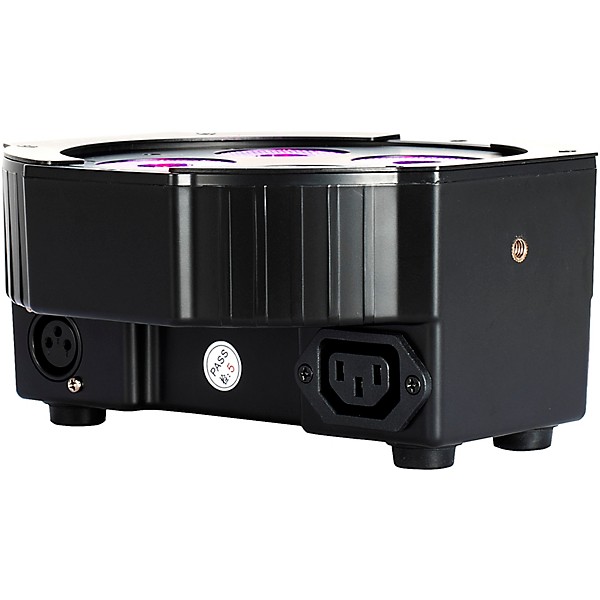

The Mega Hex L Par is designed with a patented "sit-flat" design that allows DMX data and power cables on each side of the fixture to be seamlessly daisy chained from one light to an other. The rubber feet allow the fixture to be directly rested on the ground for uplighting events. This par's compact size helps it snugly fit inside truss systems to give a ‘truss warming’ effect. The scissor yoke allows for various truss hanging options.

With the added Lime LED chips, this par achieves a remarkable CRI of over 90, ensuring superior light quality. The tunable white color temperature control from 2300K to 9900K offers more flexibility when lighting performers. Experience seamless color mixing with fast or slow transitions, and explore 15 White color temperature presets for ultimate control. With 63 built-in color macros and 13 programs, users can create stunning visual displays effortlessly.

The Mega Hex L Par offers versatile control options that include 7 DMX channel modes, Auto Run Mode, Sound Active Mode, RGBLA + UV Dimmer Mode and more. The 4-button OLED display simplifies navigation. This fixture features a flicker-free experience, electronic dimming from 0-100%, and 6 Dimmer Curve Modes for added flexibility.

With its 3-pin DMX Inputs/Outputs and daisy-chain power capability, users can effortlessly link up to 20 fixtures at 120V or up to 40 fixtures at 230V, making it perfect for large setups. Compact and lightweight, this fixture measures 10.25" x 10.25" x 4.25" and weighs just 4 lbs.

Whether you're creating an architectural wall wash or illuminating performance stages, the Eliminator Lighting Mega Hex L Par is a great choice to create stunning, versatile, and energy-efficient lighting solutions.

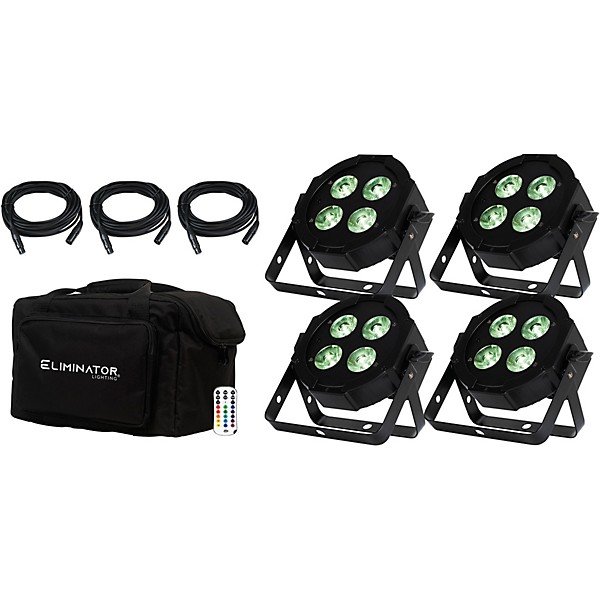

Eliminator Lighting Mega Flat Hex L PAK4 4 LED PAR PAK with DMX
Eliminator Lighting Mega Flat Hex L PAK4 4 LED PAR PAK with DMX
Eliminator Lighting Mega Flat Hex L PAK4 4 LED PAR PAK with DMX

Features

Source
  • 4 x 20-Watt, 6-IN-1 Hex (RGBLA+UV) LEDs (50,000 hrs.)
  • CRI: >90
  • Lumens: 1100
  • Beam Angle: 17-degrees (native); 20-degree (with frost filter)
Effects
  • White Color Temperature Control (2300K – 9900K)
  • 15 White Color Temperature Presets
  • 63 built-in Color Macros
  • 13 built-in programs
  • Flicker Free
  • Electronic Dimming: 0-100%
  • 6 Dimmer Curve Modes
  • Color strobe effect
Control
  • 7 DMX Channel modes: 6, 8, 9, 12, 14, 15 and 17 channel modes
  • 5 Operational modes: Auto Run Mode (16 Color Change Mode, 16 Color Fade Modes, & 1 Combined Mode), Sound Active Mode (16 Modes), RGBLA + UV Dimmer Mode, Static Color Mode (63 Colors), and DMX Controlled
  • 4-button with OLED display menu for easy navigation
  • Stand Alone or Primary/Secondary Configuration
  • DMX-512 protocol
Connections

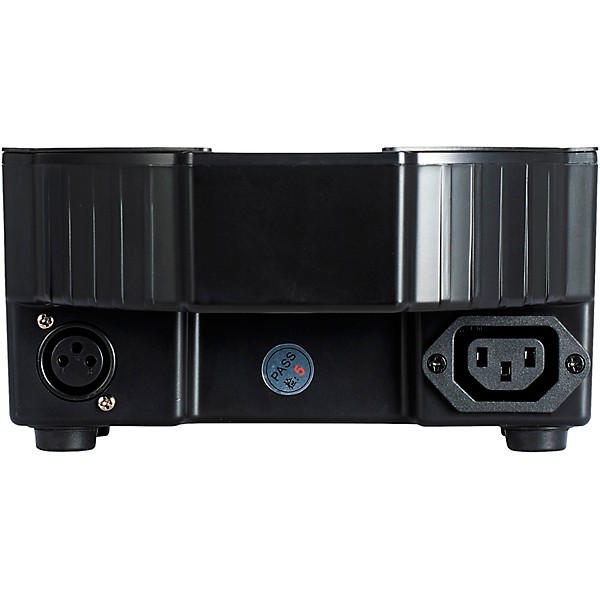

  • 3-pin DMX Inputs/Outputs
  • IEC AC input and output on the side of the fixture to daisy chain the power (link up to 20 fixtures @120V, up to 40 fixtures @230V)
  • With Wired Digital Communication Network
Electrical
  • Multi-voltage operation: AC 100V-240V 50/60Hz
  • Power Draw: 24W Max
Size and Weight
  • Dimensions (LxWxH): 10.25”x 10.25”x 4.25”/ 261x260x110mm
  • Weight: 4 lbs./ 1.87 kg.
warning

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Specs

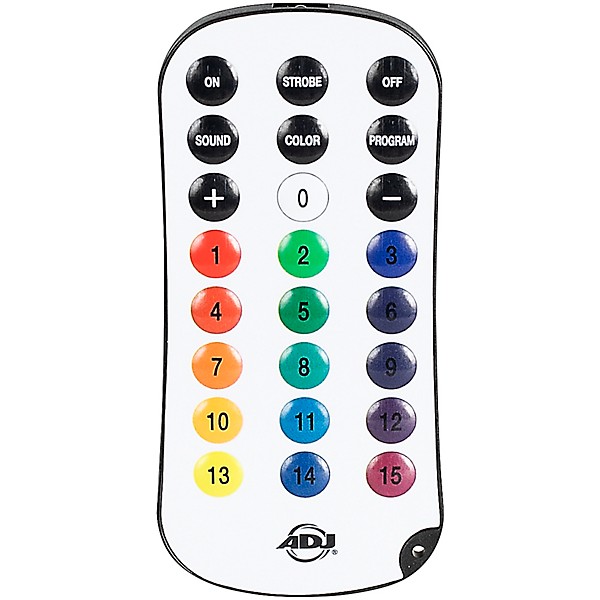

  • Includes the ADJ UC IR24 wireless IR remote
  • IEC Power Cord

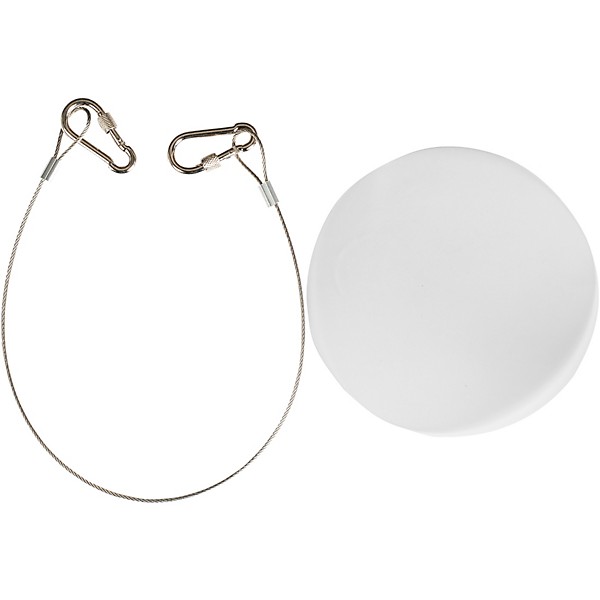

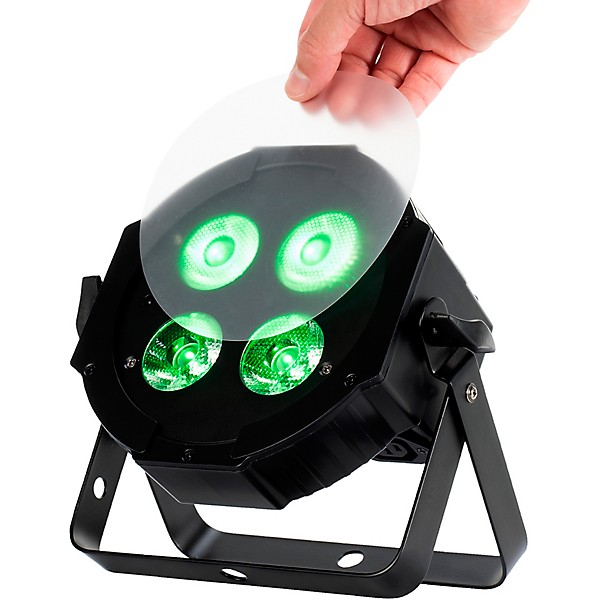

  • 20-degree Frost Filter

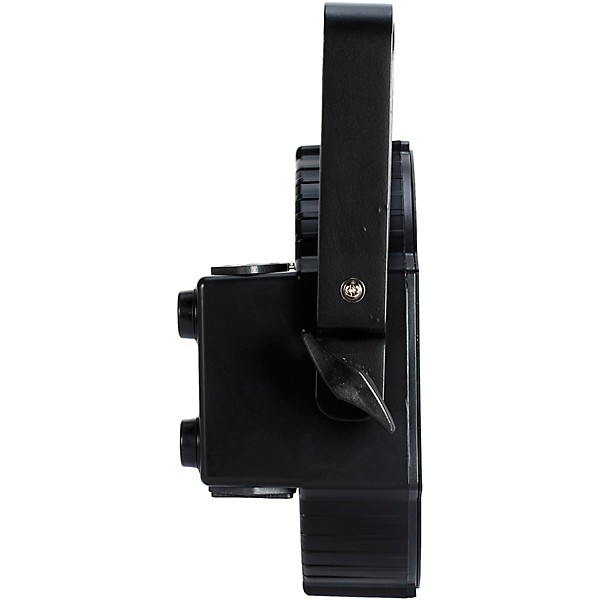

  • Scissor yoke
