Yamaha Yamaha MSR400 / MG124C PA Package

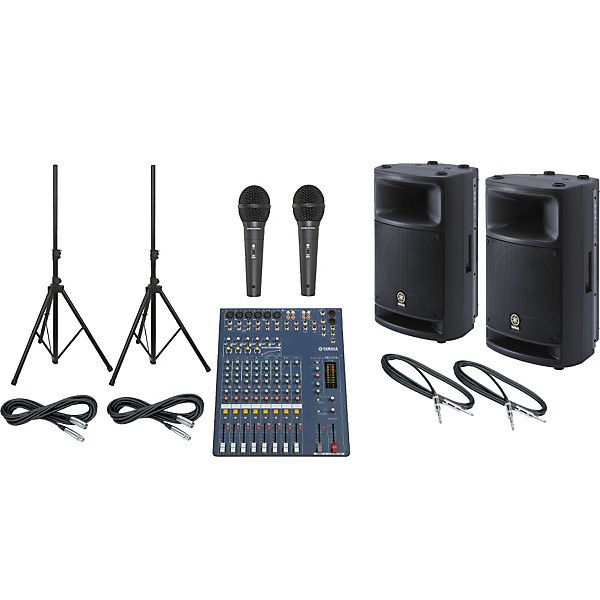

This PA package includes a Yamaha MG124C Stereo Mixer, a pair of Yamaha MSR400 12" Powered PA speakers, and 2 Audio-Technica MS400 handheld dynamic microphones. You also get 2 Musician's Gear Standard Speaker Stands, 2 - 20ft. Gear One XLR mic cables, and 2 Gear One 1/4"speaker cables for a convenient live sound set up.

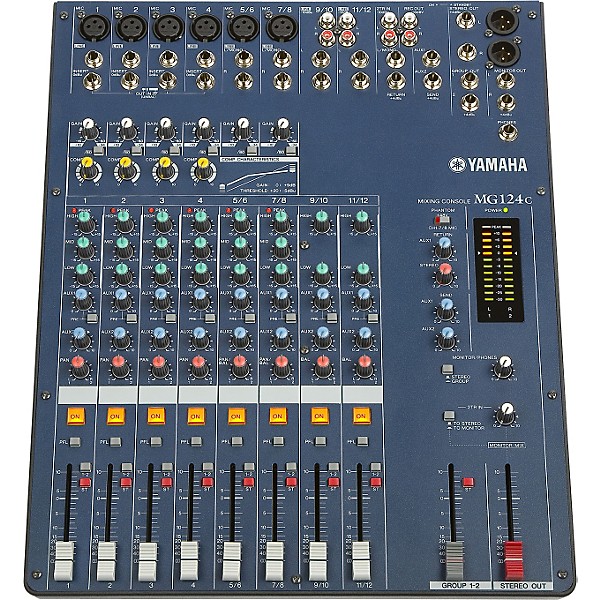

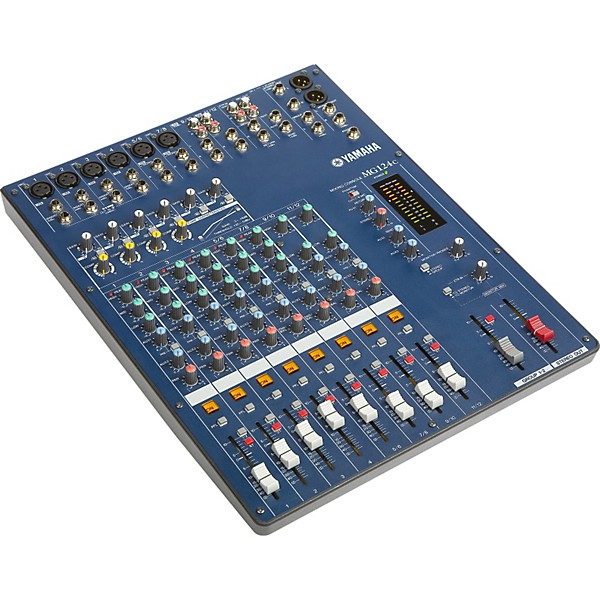

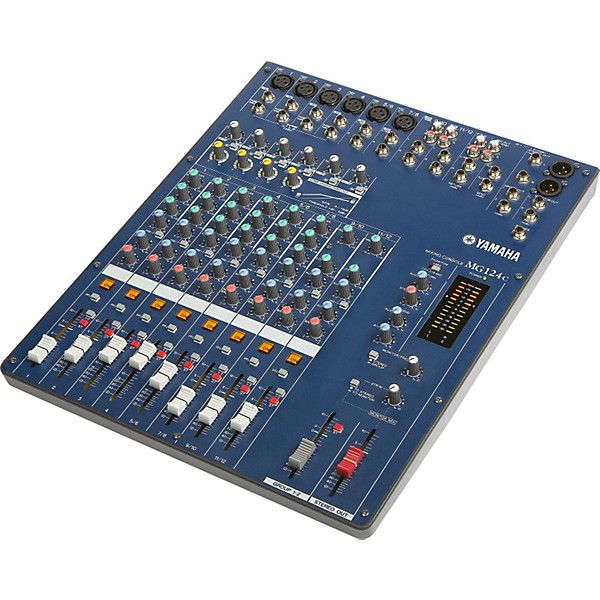

Yamaha MG124C 12-Input Stereo Mixer
For applications requiring up to 12 input channels the Yamaha MG124C Mixer offers stunning MG-series sound plus an extra margin of signal-routing versatility. In spite of the fact that it has 12 channels, 4 buses, and a wealth of advanced features, the MG124C Stereo Mixer is small and light enough (only 2.9 kilograms) to be tucked under an arm and set up just about anywhere. This remarkable sound mixer provides significant space savings along with huge performance benefits.

Inputs & channels

Flexible 12-Input Configuration
The MG124C both has a total of 12 input channels-- 4 mono microphone/line inputs and 4 stereo line inputs. 2 of the stereo line inputs can also function as mono microphone inputs, giving you up to six simultaneous mono microphone inputs when needed. Gain trim covers a wide -60dB - -16dB range for microphone input, and -34dB - +10dB for line input.

Comprehensive, Easy-access Connector Panel
Top-mounted input and output connectors make setting up and re-patching your system quick and easy. Both models feature high- quality Neutrik balanced XLR connectors on all four mono microphone/line channels and two of the stereo channels. The XLR-equipped stereo channels can accept mono microphone input either via the XLR or phone jack connectors. The remaining stereo channels provide phone jack and pin jack connectors for compatibility with a wide range of sources. The four mono input channels also feature insert I/O connectors that let you patch external signal processing gear into those channels as required. Separate pin-jack 2TR inputs are provided to accept the output from a CD player or similar stereo source.

Six High-performance Microphone Preamplifiers with Switchable Phantom Power
The microphone preamplifiers in any mixer are critical to its overall performance. The microphone preamps built into the MG mixers inherit technology from Yamaha's top-line professional consoles, and have been painstakingly designed to deliver superior sonic performance with any dynamic or condenser microphone. All six microphone preamps feature switchable phantom power so you can take advantage of the natural, extended response of high-quality condenser microphones. A single switch turns phantom power on or off for all microphone channels.

Built-in Channel Compressors
Built-in channel dynamics is usually only found on high-end (and very expensive) consoles. The MG124C features Yamaha's innovative one-knob compression feature on mono input channels 1 through 4. This advanced feature can be a tremendous advantage in achieving great vocal sound. It can also be used to refine the sound of bass, guitar, and other sources. Conventional audio compressors with their threshold, ratio, knee, makeup gain and other controls can be complex and time-consuming to set appropriately for a given source. Yamaha's one-knob compressor eliminates the need for an engineering degree with a single control that lets you simply dial in the amount of compression you want.

3-Band Channel EQ and High-pass Filter
Yamaha has decades of experience in building truly useful, musical equalization into successful pro consoles, and the channel equalizers in MG-series mixers carry on without compromise. Channels 1, 2, 3, 4, 5/6, and 7/8 feature full 3-band equalizers with LOW, MID, and HIGH controls, while 9/10 and 11/12 have 2-band EQ for smooth equalization of stereo sources.

Four Buses (Stereo and Group)
In addition to the main stereo bus the MG124C mixer features a stereo group bus and outputs that can be used for convenient channel grouping. Assign switches for the stereo and group buses are located next to each channel fader.

Illuminated Channel ON Switches
All input channels feature illuminated channel ON switches chat can be used to individually add or remove channels from the mix without having to change the positions of the channel faders.

Master & output section

Effect/Aux Sends
The Yamaha MG124C has dual AUX send controls for each channel, one switchable for pre- or post-fader operation, and one fixed for pre-fader send. Master send controls are also provided, as are RETURN level controls for the AUX and STEREO busses.

Stereo, Control Room, Monitor, and Headphone Outputs
Located above the mixer's master controls, on the convenient easy-access connector panel, are the main stereo output connectors, phone-jack monitor output connectors, pin-jack recording outputs, and a stereo headphone jack. These versatile mixers offer plenty of connectivity for a wide range of applications.

Bright 12-Segment Meters for Visual Level Monitoring
Accurate visual level monitoring can help you achieve maximum signal-to-noise ratio without distortion. The MG mixer's bright, easy-to-read 12-segment LED meters make it easy to control system levels for optimum overall performance.

Unmatched ease & convenience

Smooth 60-millimeter Faders

Channel and master level control is accomplished via reliable, high-performance 60-millimeter linear faders that provide smooth, noise-free operation. An important advantage of linear faders is that they provide a direct visual indication of relative level settings

Easy Operation

All switches, controls, and displays have been designed and laid out for intuitive access and smooth, reliable operation with positive tactile and visual feedback.

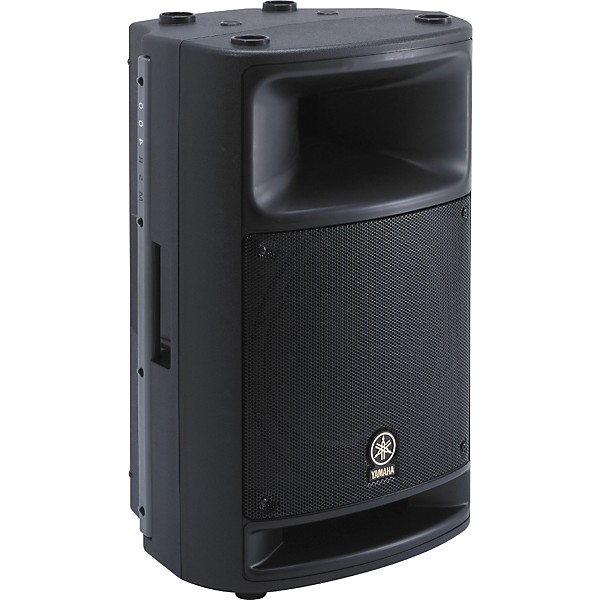

Yamaha MSR400 Powered Speakers

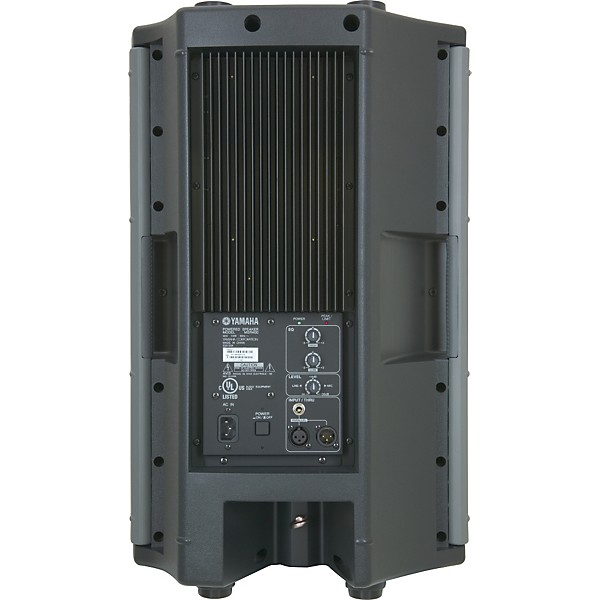

The Yamaha MSR400 Powered Speaker is a biamplified, 2-way system featuring 400W maximum burst power driving a 12" cone woofer and 1-3/4" voice coil compression driver. Frequency division is accomplished prior to the amplifiers via a line-level electronic crossover, eliminating problems with loss, distortion, and phase. Power is optimally assigned to the low- and high-frequency units for smooth, natural balance across the spectrum. The Yamaha speaker accepts nominal input levels from -36dB to +4dB, meaning you can connect any source from microphones to pro line-level gear directly. 3 parallel connections are provided--2 XLR-type connectors and one balanced phone jack--which can be used either as inputs or parallel outputs.

The Yamaha MSR400 speaker cab has input level control for matching with the source signal, low and high EQ controls, and a sleek appearance round out the great features of this speaker cab. Stackable, flyable, and polemountable.

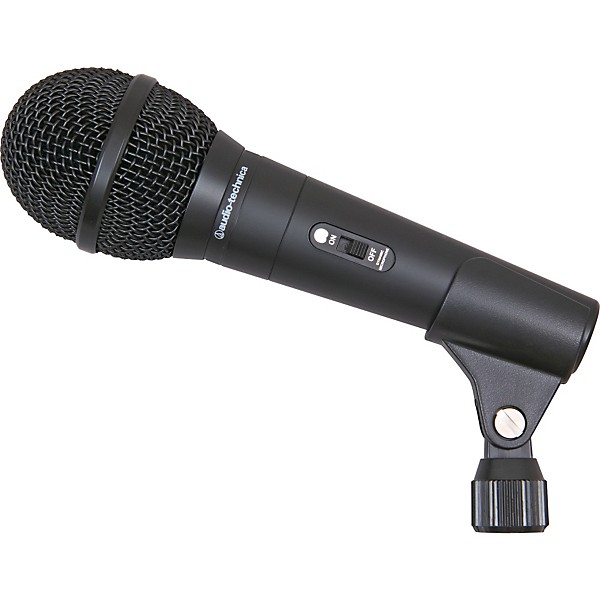

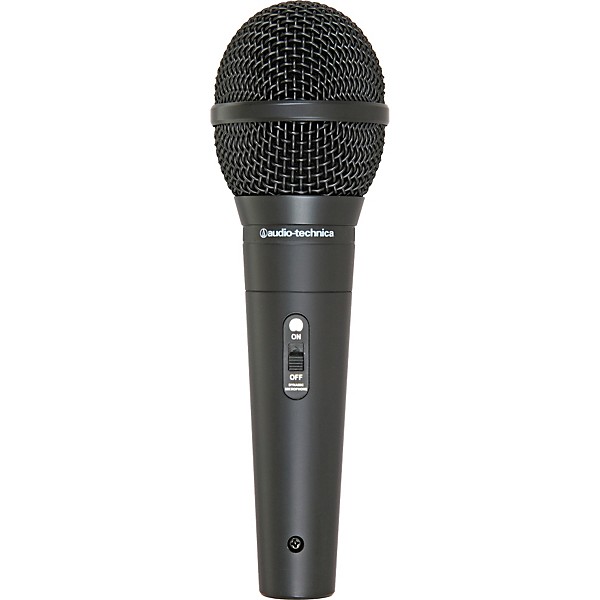

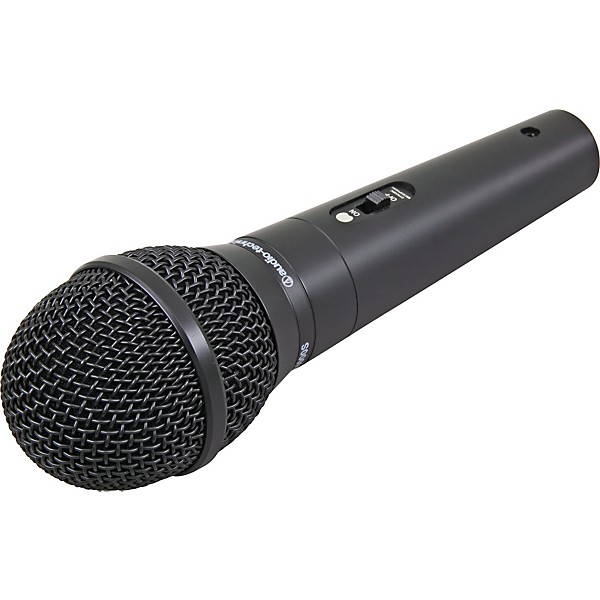

Audio-Technica M4000S Handheld Dynamic Microphone
The handheld Audio-Technica M4000S dynamic microphone combines professional features with a ridiculously affordable price tag. Audio-Technica tailors the M4000S mic's frequency response for crystal-clear vocal reproduction. Great feedback rejection and focused pickup are due to the A-T microphone's unidirectional polar pattern. The M4000S Audio-Technica mic also is equipped with a handy On/Off switch for convenience.

Audio-Technica professional microphone enhancements include a balanced XLR output, and a mic clip. Whether you're on the road, in the studio, or just performing at local gigs. Expect the all-metal Audio-Technica M4000S microphone to provides you with years of trouble-free use.

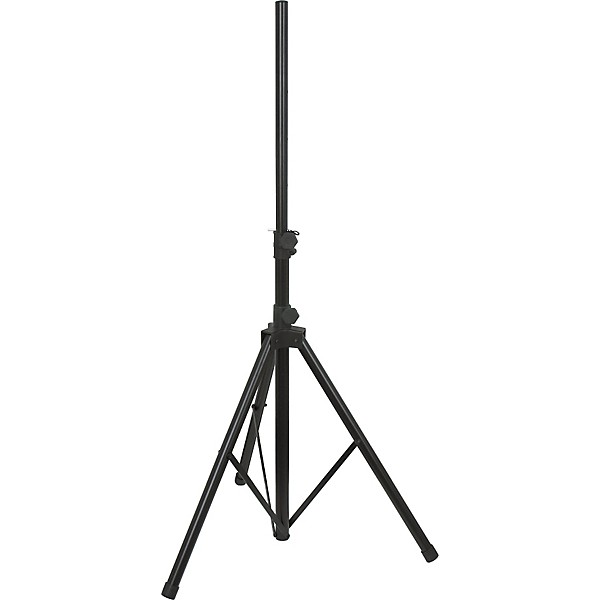

Musician's Gear Standard Speaker Stand
This Standard audio speaker stand adjusts from 42" to 71" in height and accepts 1-3/8" diameter sockets. It can holds up to 110lb. Its aluminum construction reduces stand weight for easy transport, and its molded plastic leg housing with ergonomic knob is extremely durable.

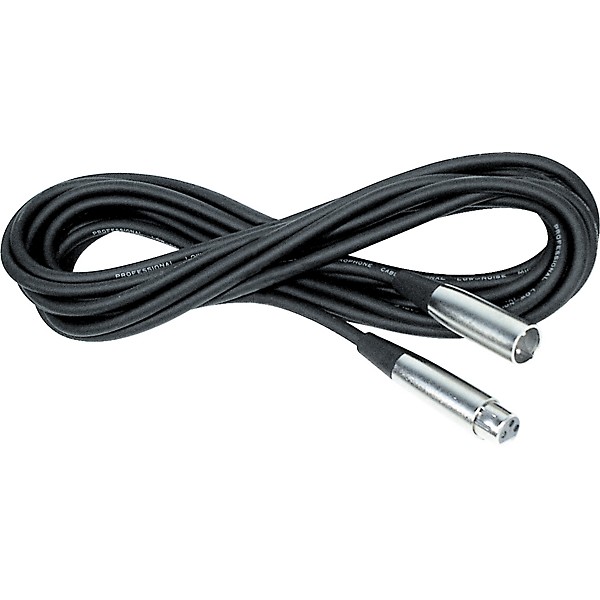

Gear One XLR Microphone Cable Regular (20 foot)
For serious-minded musicians, Gear One's XLR cables have the strength and durability to withstand more than everyday use. Since your cable is your sound, this XLR mic cable's superior wiring allows your signal to be quiet, eliminating frustrating hums, buzzing, and crackles.

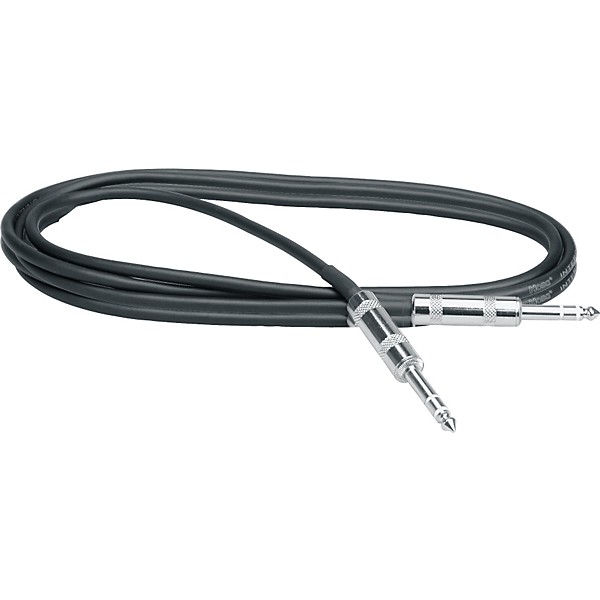

Gear One 1/4" Speaker Cable
These tough, high-quality 25-foot speaker cables won't strain the wallet. 1/4"-to-1/4" metal connectors.
