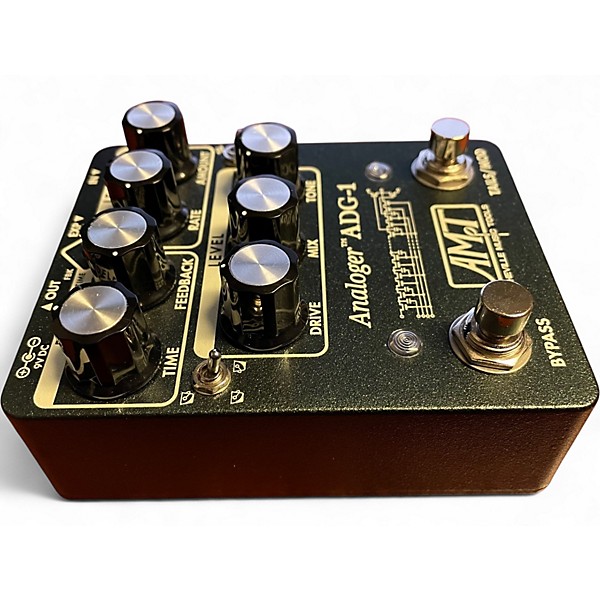

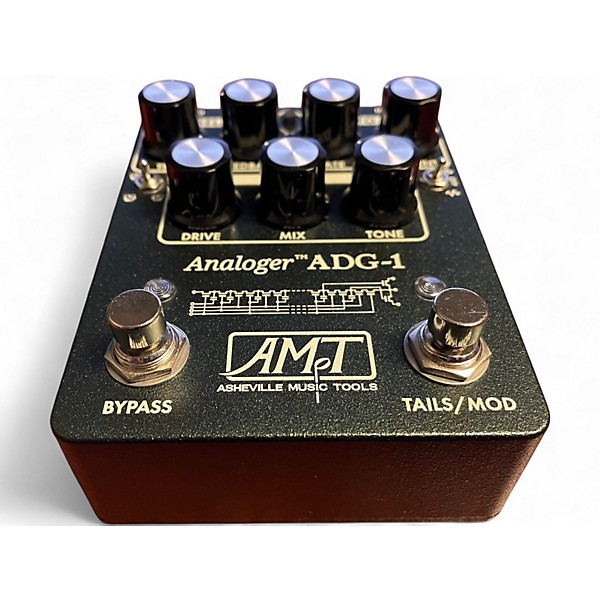

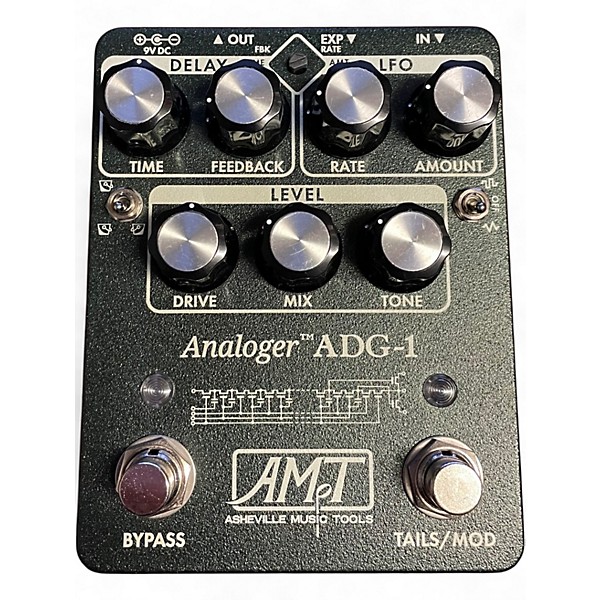

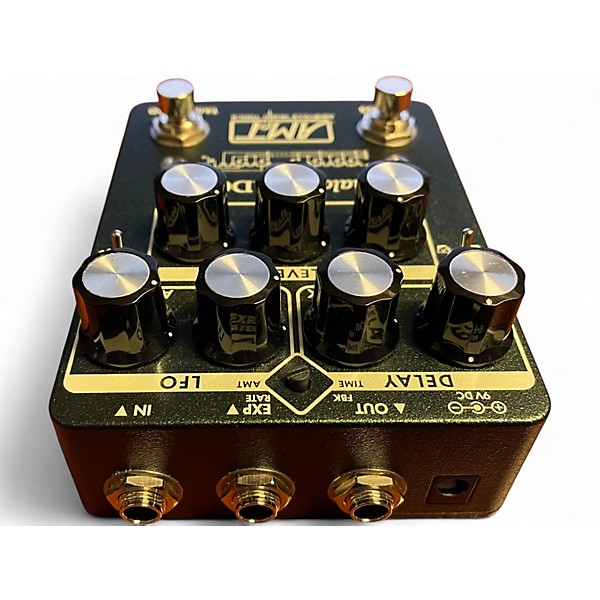

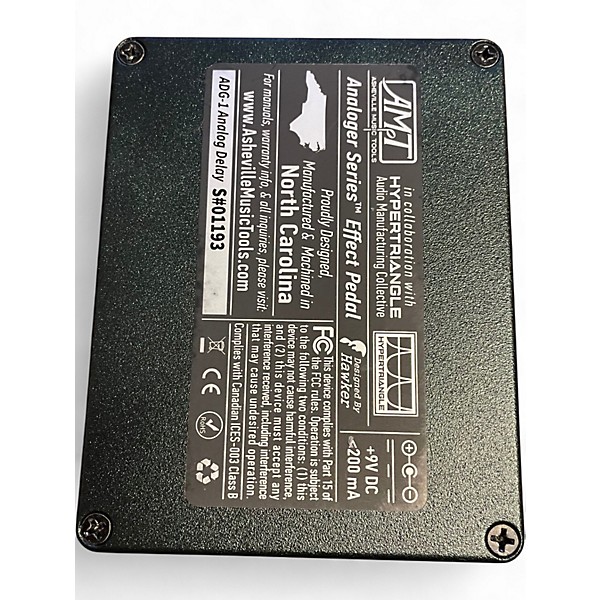

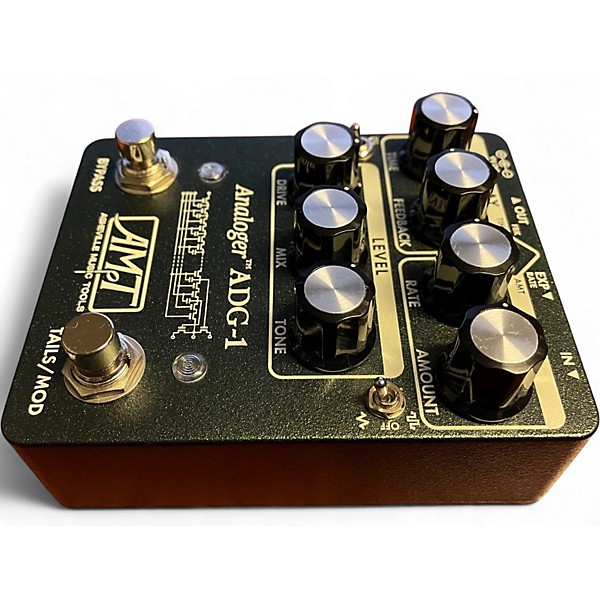

Used Asheville Music Tools ADG-1 Analog Delay Effect Pedal

Asheville Music Tools ADG-1 700ms Analog Delay Pedal ADG-1 700ms Analog Delay Analoger Series ADG-1: 100% Analog Delay / 16-700ms time range w/ modulation The ADG-1 is the latest installment in Hawker’s legacy of highly sought-after analog delay designs. Utilizing a pair of Xvive high voltage BBDs, this delay features up to 700ms of harmonically rich, perfectly floating echoes with an extensive and fully analog control set unprecedented for a pedal of its size. From a bright country slapback to washy dotted eight leads to psychedelic modulated odysseys, the ADG-1 is the new standard in compact analog delays. Electrical Specifications • 100% Analog signal path • Switchable true bypass or JFET-buffered bypass with switchable trails • Power: 9VDC @ <150mA (85mA Nominal, up to 250mA start up.) • Expression / CV input assignable to Time, Feedback, Mod Amount, or Mod Rate (CV range is 0-5V). Ring supplied current • • • limited 5V. • Delay time: 35-700ms in dual BBD mode, 16-350ms in single BBD mode, 27-900ms (or 13-450ms) with external CV control • Input impedance: >1MO • Output impedance: 1KO Max • Max input level: +15dBu (4.3V RMS) • Max output level: +14dBu (3.9V RMS) • Maximum drive: >22dB (covers attenuation to gain) • Noise Reduction: 2:1 broadband with 12dB HF emphasis • Physical Specifications: • Genuine Hammond die-cast aluminum enclosure
