Shure
Description

The Shure SLXD4+ digital wireless receiver is a single-channel, half-rack receiver designed to function as a stable control and monitoring hub within the SLX-D+ digital wireless system for live sound, installed audio and professional production environments. Operating with 24-bit/48 kHz digital audio conversion and delivering a >118 dB dynamic range, the SLXD4+ provides transparent audio reproduction alongside dependable RF performance across a 138 MHz wide tuning range (G57: 470–608 MHz), supporting reliable multi-system deployment in congested RF conditions. Integrated ShowLink® Ease enables continuous coordination between the receiver and linked SLX-D+ transmitters, allowing automatic frequency updates, interference mitigation, remote gain adjustment, transmitter locking, firmware updates and secondary transmitter linking without interrupting operation. System status and parameters can be monitored and managed locally or remotely using Wireless Workbench desktop software or the WWB Mobile app over Ethernet, Wi-Fi or Bluetooth, while embedded Shure Digital Feedback Reducer processing provides automatic feedback control at the receiver level. Housed in a rugged metal chassis with balanced XLR and 1/4" outputs, AES-256 encryption and network connectivity for system integration, the SLXD4+ serves as a reliable foundation for building and managing single-channel SLX-D+ wireless microphone systems.

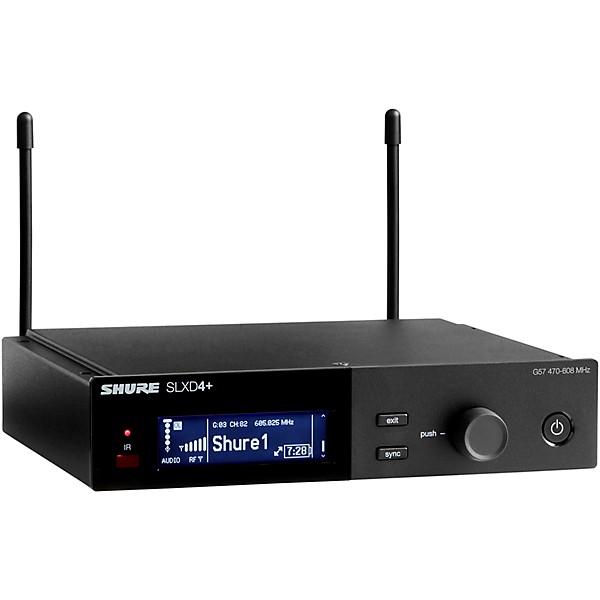

Shure SLXD4+ Single-Channel Wireless Receiver - Band G57

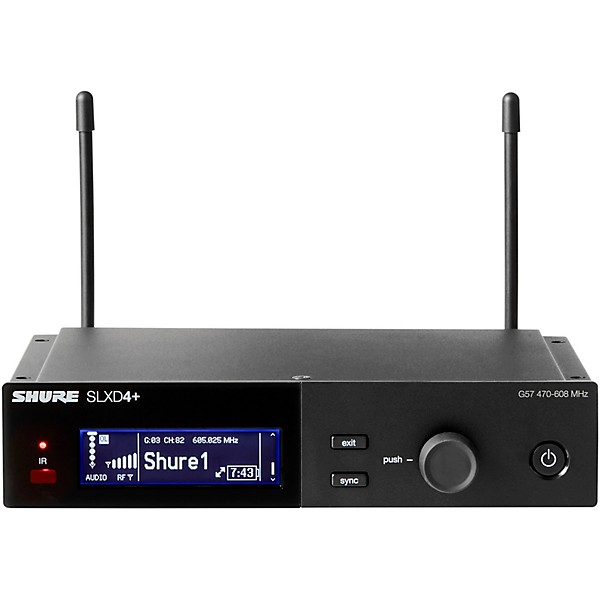

Shure SLXD4+ Single-Channel Wireless Receiver - Band G57

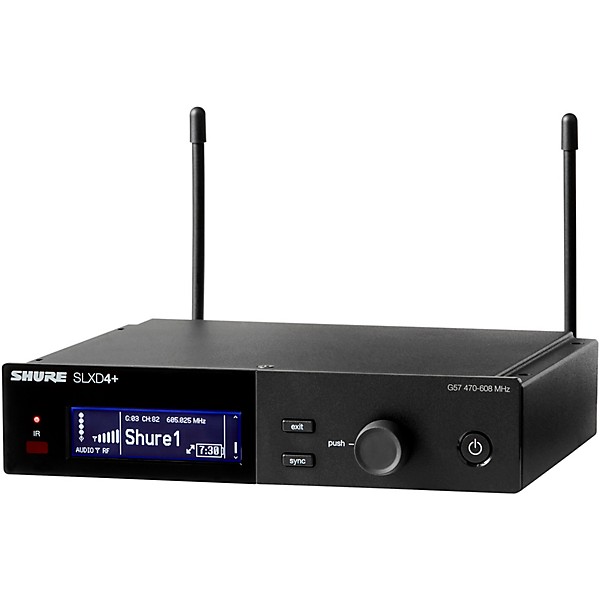

Shure SLXD4+ Single-Channel Wireless Receiver - Band G57
Features
  • Single-channel digital receiver delivers stable control and monitoring for SLX-D+ systems
  • Transparent 24-bit digital audio delivers clear, high-quality sound for performances
  • 138MHz wide-tuning range ensures reliable operation across large areas
  • ShowLink Ease allows remote transmitter adjustments directly from the receiver
  • Automatic frequency setup prevents dropouts by switching to open channels
  • AES-256 encryption secures your signal for worry-free wireless transmission
  • Digital Feedback Reducer minimizes unwanted feedback during live performances
  • Monitor and control settings remotely via Wireless Workbench or mobile app
  • Rugged half-rack design with metal housing ensures durability for touring
warning

WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov.

Specs
General
  • Product type: Wireless receiver
  • Series: SLXD+
  • Channel count: Single channel
Power
  • Power requirements: 15V DC at 360mA tip positive external power supply
RF input
  • RF connector: BNC
  • RF impedance: 50 ohm
  • Spurious rejection: Greater than 75dB typical
Audio output
  • Gain adjustment range: -18dB to +42dB in 1dB steps
Output connections
  • 1/4" output configuration: Balanced TRS
  • XLR output configuration: Balanced (1=ground, 2=audio +, 3=audio -)
Output impedance
  • 1/4" output impedance: 1.1 kohm balanced (550 ohm unbalanced)
  • XLR line impedance: 500 ohm balanced (250 ohm unbalanced)
  • XLR mic impedance: 150 ohm
Maximum output level
  • 1/4" output level: +18dBV differential (+12dBV single-ended)
  • XLR output level line setting: +18dBV
  • XLR output level mic setting: -12dBV
Mic and line control
  • Mic and line switch: 30dB pad
Phantom power protection
  • Phantom protection 1/4": Yes
  • Phantom protection XLR: Yes
Networking
  • Network interface: Single-port Ethernet 10/100 Mbps
  • Network addressing: DHCP or manual IP address
  • Maximum cable length: 328'
Construction
  • Housing material: Galvanized steel
Dimensions and weight
  • Unit dimensions: 1.65" x 7.76" x 5.98"
  • Unit weight: 2.0 lb.
Warranty
One year warranty on wireless mics, mixers, and circuitry products.
2 year warranty on wired mics.
Warranty terms vary. Check with manufacturer for specific product warranty.
