Shure
Description

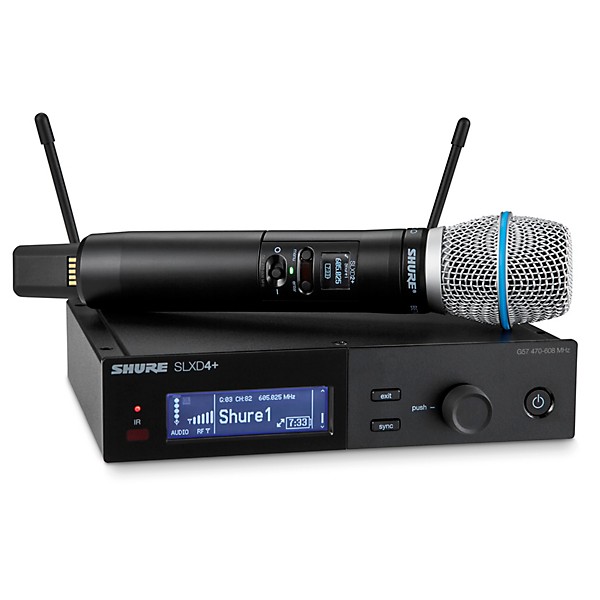

For applications where intelligibility and precision are critical, the Shure SLXD24+/B87A digital wireless handheld microphone system delivers a complete single-channel SLX-D+ handheld solution built around the SLXD4+ receiver and SLXD2+ handheld transmitter. Designed for professional reinforcement and installed sound use, the system supports consistent, high-quality wireless performance for speech, vocals and presentations. Included mounting hardware, antennas, accessories and power allow for immediate integration into rack-based or installed audio systems.

SLX-D+ Digital Wireless Performance and Control

SLX-D+ digital wireless architecture delivers 24-bit audio with a 118dB dynamic range and reliable RF performance across a wide 138MHz tuning range. ShowLink Ease supports continuous system coordination, enabling automatic frequency reassignment and remote transmitter control without interrupting audio. Monitoring and control are handled through Wireless Workbench desktop software or the WWB Mobile app, while digital feedback reduction and AES-256 encryption help maintain stable, secure operation in shared RF environments.

BETA 87A Capsule for Precision and Intelligibility

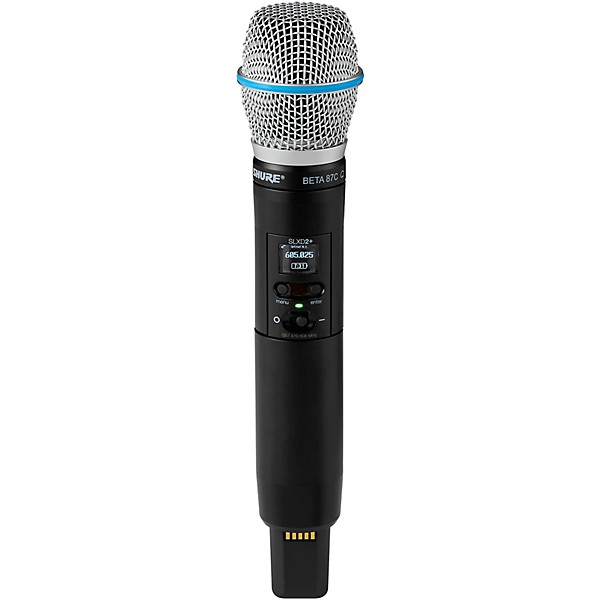

This system is equipped with the BETA 87A supercardioid condenser microphone capsule, voiced for detailed, articulate vocal reproduction with extended high-frequency clarity and controlled off-axis rejection. Its condenser design supports nuance and intelligibility for spoken word, presentations, worship services and broadcast-style applications where precision matters. The SLXD24+/B87A system delivers a refined handheld wireless solution optimized for controlled, intelligible vocal performance within SLX-D+ environments.

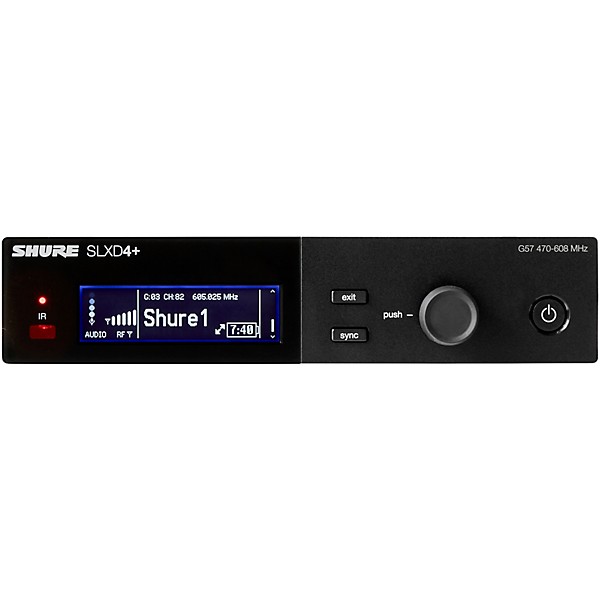

Shure SLXD24+/B87A Digital Wireless Handheld Microphone System - Band G57

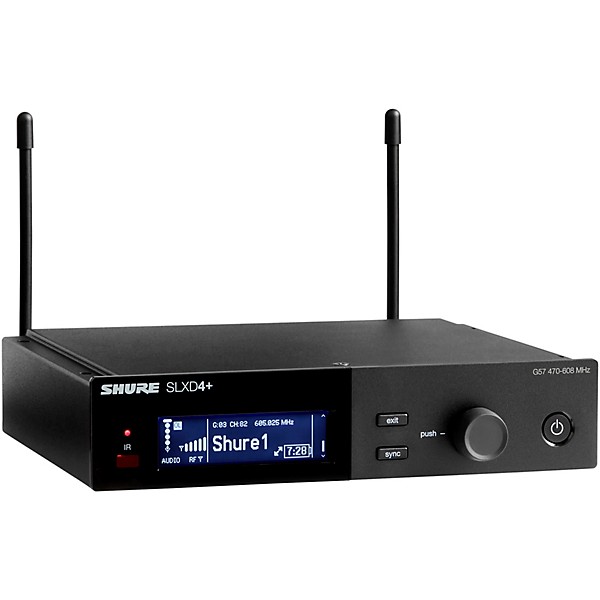

Shure SLXD24+/B87A Digital Wireless Handheld Microphone System - Band G57

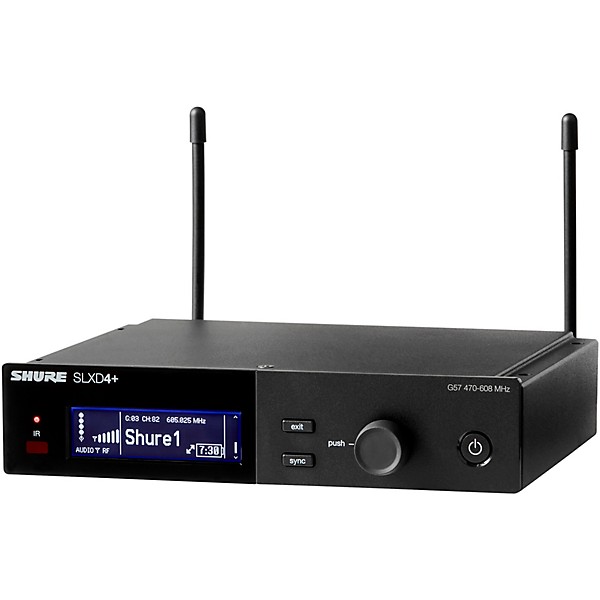

Shure SLXD24+/B87A Digital Wireless Handheld Microphone System - Band G57
Features
  • Precision handheld wireless system built for articulate professional vocals
  • 24-bit digital audio delivers clear detailed sound with low distortion
  • BETA 87A condenser capsule captures nuanced vocals with focused control
  • Supercardioid pickup pattern improves isolation on controlled stages
  • 138MHz tuning range offers flexible frequency options in crowded RF spaces
  • ShowLink Ease enables remote management and automated interference control
  • Digital feedback reduction minimizes squeals during demanding performances
  • 2.8 ms latency keeps audio and video tightly synchronized
  • Up to 328' operating range supports confident use on large stages
warning

WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov.

Specs
General
  • Product type: Digital wireless system
  • Series: SLXD+
RF performance
  • RF carrier frequency range: 470MHz–608MHz
  • Operating range: Up to 328'
  • RF tuning step size: 125kHz JB band and 25kHz all other bands
  • Image rejection: Greater than 85dB typical
  • RF sensitivity: -97dBm at 10 to the -5 BER
Audio performance
  • Latency: 2.8ms
  • Frequency response: 20Hz–20kHz +1dB and -2dB
  • Dynamic range: 118dB A weighted typical
  • Total harmonic distortion: Less than 0.02% at 1% THD
  • High pass filter: 160Hz at -12dB per octave switchable
  • Mic offset range: 0dB to 21dB in 3dB steps
Signal polarity
  • XLR polarity: Positive pressure produces positive voltage on pin 2 relative to pin 3
  • TRS polarity: Positive pressure produces positive voltage on tip relative to ring
Environmental
  • Operating temperature range: 0F–122F
  • Storage temperature range: -20F–165F
Warranty
One year warranty on wireless mics, mixers, and circuitry products.
2 year warranty on wired mics.
Warranty terms vary. Check with manufacturer for specific product warranty.
