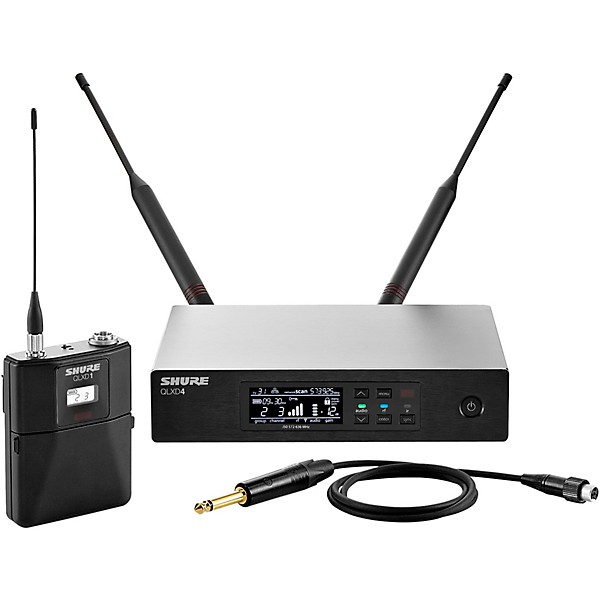

Shure QLXD14 Wireless System With QLXD1 Bodypack and QLXD4 Receiver Band H50

Description
The Shure QLXD14 wireless system delivers professional-caliber audio transmission without the hassle of cables. This high-performance solution features an interchangeable microphone to suit your specific needs and its four switchable frequency bands offer up to 14 channels to avoid interference from other devices. With an rugged all-metal design and intuitive controls, the QLXD14 handles the demands of daily use with ease.
Interchangeable Microphone for Versatile Performance
The included QLXD1 bodypack transmitter works with Shure's wide range of interchangeable microphones, including condenser, dynamic and headset models. Select the mic that matches your application, whether you're presenting, singing or playing an instrument. The bodypack clips comfortably and securely to your belt or strap to keep the mic close at hand.
Four Frequency Bands and 14 Channels for Clear, Uninterrupted Sound
To avoid interference from other wireless devices, the QLXD14 system gives you a choice of four frequency bands, each with up to 14 channels. Scan the available channels to find a clear signal and lock it in with the touch of a button on the QLXD4 receiver. Up to 14 systems can operate simultaneously without interference for complex productions.
Rugged, All-Metal Construction Built to Last
From its aluminum alloy chassis to its steel mesh grille, the QLXD14 is built for real-world use. It handles the stresses of daily use and travel without missing a beat. The rechargeable lithium-ion batteries provide up to 7 hours of power and recharge in just 2 hours. With a proven track record of performance, the QLXD14 delivers consistent, professional results gig after gig.
Simple, Intuitive Controls for Fast Setup and Operation
Despite its advanced digital technology, the QLXD14 wireless system is designed to be simple to set up and operate. The QLXD4 receiver features an easy-to-read LCD screen and pushbutton menus that allow you to scan for channels, adjust audio levels and lock in frequencies with just a few presses. With presets to store your favorite settings, the QLXD14 is ready to go when you are.

Features
- Rugged metal construction
- Backlit LCD with easy to navigate menu and controls
- 2 x AA batteries provide up to 9 hours of runtime
- Optional Shure SB900 lithium-ion rechargeable battery provides up to 10 hours of runtime
- External charging contacts for docked charging
- Multiple microphone cartridges available, including the legendary SM58 (QLXD2)
- Transparent, 24-bit digital audio
- 20Hz–20kHz frequency range
- 120dB dynamic range
- 64/72mHz overall tuning bandwidth
- 17 compatible channels per 6mHz TV channel
- More than 60 pre-set compatible channels per frequency band
- AES 256-bit encryption
- Ethernet networkable receivers
- Network Scan finds clean frequencies for networked receivers
- AMX/Crestron control system ready
- ShurePlus Channels mobile app compatible
- Wireless Workbench control software compatible
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov.
Specs
- RF Carrier Frequency Range: 470–937.5mHz, varies by region
- Image Rejection: >70dB, typical
- Latency: <2.9 ms
- RF Sensitivity: -97 dBm at 10-5 BER
- Working Range: 100 m (328') line-of-sight (Note: Actual range depends on RF signal absorption, reflection and interference)
- Audio Frequency Range: 20Hz to 20kHz (Note: Dependent on microphone type)
- Audio Dynamic Range (System Gain @ +10): >120dB, A-weighted, typical
- Total Harmonic Distortion: <0.1% (−12 dBFS input, System Gain @ +10)
- Operating Temperature Range: -18°C (0°F) to 50°C (122°F) (Note: Battery characteristics may limit this range)
- Dimensions: 1.63" x 7.75" x 5.94"
- Weight: 1.71 lb., without antennas
- Housing: Steel
- Power Requirements: 12V DC @ 0.4 A, supplied by external power supply (tip positive)
- Spurious Rejection: > 80dB, typical
- Antenna Connector Type: BNC
- Antenna Impedance: 50 ohms
- Gain Adjustment Range: –18 to +42dB (in 1dB steps)
- Configuration: 1/4" (6.35 mm): Impedance balanced (Tip = audio, Ring = no audio, Sleeve = ground ) XLR: balanced (1 = ground, 2 = audio +, 3 = audio −)
- Antenna Impedance: 1/4" (6.35 mm): 100 ohm (50 ohm Unbalanced); XLR: 100 ohm
- Full Scale Output: 1/4" (6.35 mm): +12 dBV; XLR: LINE setting = +18 dBV, MIC setting = –12 dBV
- Mic/Line Switch: 30dB pad
- Network Interface: Single Port Ethernet 10/100 mbps
- Network Addressing Capability: DHCP or Manual IP address
- Dimensions: 3.38" x 2.57" x 0.92", without antenna
- Weight: 4.9 oz., without batteries
- Housing: Cast aluminum
- Battery Type: Shure SB900 Rechargeable Li-Ion or AA batteries 1.5V
- Battery Runtime: (@ 10 mW) Shure SB900 rechargeable: up to 10 hours; alkaline: up to 9 hours
- RF Output Power: 1 mW or 10 mW
- Occupied Bandwidth: < 200kHz
- Modulation Type: Shure proprietary digital
- Mic Offset Range: 0 to 21dB (in 3dB steps)
