Description

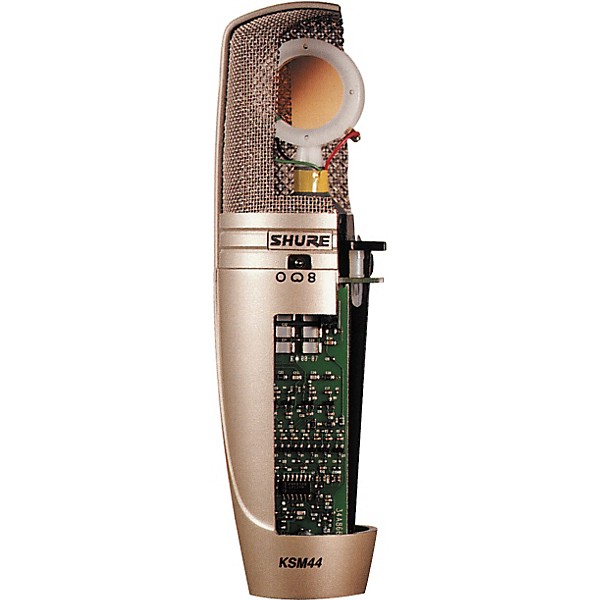

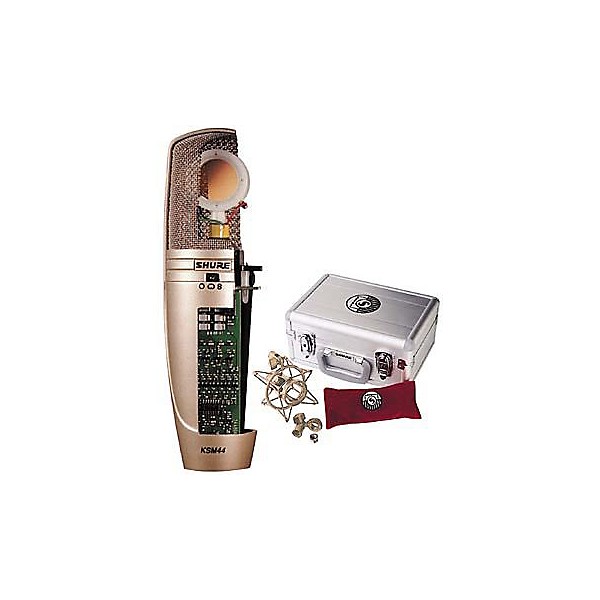

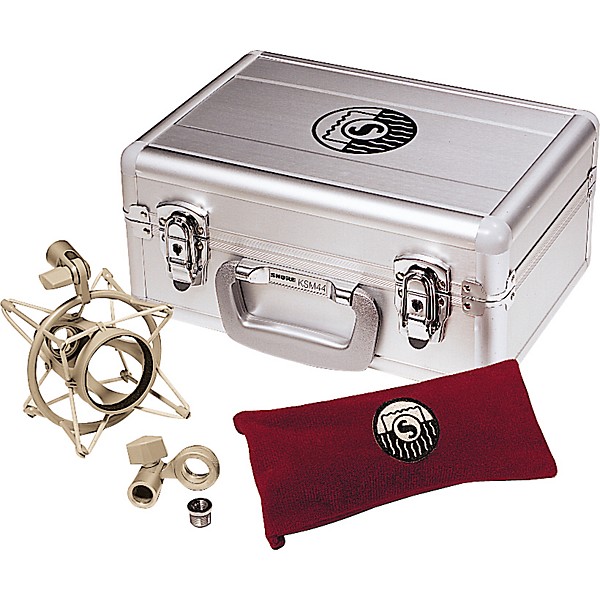

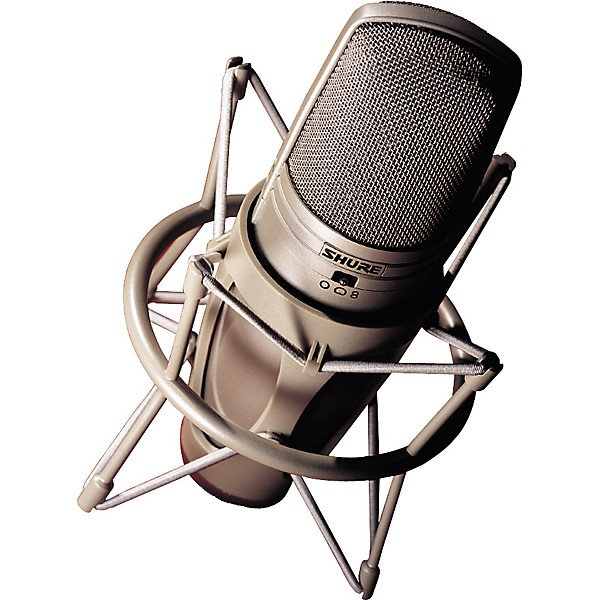

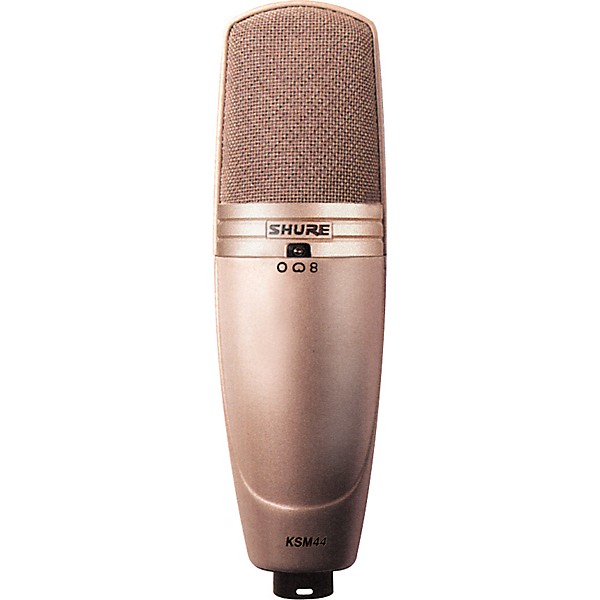

The Shure KSM44 Studio Microphone is a multiple-pattern (cardioid, omni, and figure-8), externally biased, dual large diaphragm condenser microphone. It offers extremely low self noise (7dB); a warm, rich sound; vivid voice reproduction; and great flexibility in the studio. Works well on acoustic and amplified instruments and handles the high SPLs of drums and guitar amps. Includes color-matched ShureLock elastic-suspension shockmount, ShureLock swivelmount, protective velveteen pouch, and locking aluminum carrying case.

Requires phantom power.
Shure KSM44 Studio Microphone
Shure KSM44 Studio Microphone
Shure KSM44 Studio Microphone

Features

  • Extended frequency response
  • Very low self-noise
  • Exceptional low-frequency reproduction
  • High output level
  • High input SPL capability
  • No crossover distortion
  • Extremely uniform polar response
  • Superior common mode rejection and suppression of radio frequency interference
  • Dual 1-inch, externally biased, ultrathin, 2.5 micron, 24-karat, gold-layered, low mass Mylar diaphragms provide superior transient
  • response
  • Class A, discrete, transformerless preamplifier for transparency, extremely fast transient response, and no crossover distortion. Minimizes harmonic and intermodular distortions
  • Full-range frequency response (20Hz-20kHz for extremely accurate reproduction of voice and instruments
  • Extremely low self-noise for critical studio vocal recording
  • Premium electronic components and gold-plated internal and external connectors
  • Subsonic filter eliminates rumble from mechanical vibration below 17Hz
  • 15dB attenuation switch for handling high-input SPL sound sources
  • 3-position switchable low-frequency filter virtually eliminates unwanted background noise and controls proximity effect
  • Durable zinc die-cast housing and hardened low carbon steel grille protects the cartridge from accidents or misuse
  • Uniform polar response provides natural off-axis response for critical recording
  • An integrated three-stage pop protection grille guards against wind and breath noise
  • Internal shockmount to reduce unwanted handling and stand noise

Specs

  • Cartridge Type: Externally biased condenser
  • Frequency Response: 20 to 20,000Hz
  • Output Impedance: 150Î (actual)
  • Attenuation Switch: 0 or 15dB attenuation
  • Low Frequency Response Switch: Flat; -6dB/octave below 115Hz; -18dB/octave below 80Hz
  • Phantom Power: 48 VDC (IEC-268-15/DIN 45 596), positive pins 2 and 3
  • Current Drain: 5.4 mA typical at 48 VDC
  • Common Mode Rejection: 50dB, 20Hz to 20kHz
  • Polarity: Positive pressure on front diaphragm produces positive voltage on output pin 2 relative to pin 3
  • Dimensions and Weight: 55.9mm (2.20") maximum body diameter, 187mm
  • (7.37") long; 490.5g (17.30oz.).
  • Directional Polar Patterns: Cardioid, Omnidirectional, Bidirectional
  • Sensitivity (typical; at 1000Hz; 1 Pa = 94dB SPL): -31dBV/Pa, -37dBV/Pa, -36dBV/Pa
  • Self-noise (typical, equivalent SPL; A-weighted, IEC 651): 7dB, 10dB, 10dB
  • Maximum SPL @ 1000Hz:
  • 2500Î load (Attenuator on) - 132 (149)dB, 138 (151)dB, 137 (150)dB
  • 1000Î load (Attenuator on) - 127 (144)dB, 132 (145)dB, 131 (144)dB
  • Output Clipping Level*:
  • 2500Î load: 7dBV
  • 1000Î load: 1dBV
  • Dynamic Range:
  • 2500Î load: 125dB,128dB, 127dB
  • 1000Î load: 120dB, 122dB, 121dB
  • Signal to Noise ratio:** 87dB, 84dB, 84dB

Reviews

5

1 Reviews

0%

of respondents would recommend this to a friend

Reviewed by 1 customers

  • Very pleased

    5

    submitted18 years ago

    byAric

    fromMercedes, Texas

    I bought this mic a couple of months ago and it is the best mic that I have used for the cost. I set up a permenant location for the mic, you have to be very careful with it. It will pick up everything that make noise. The mic is so sensative that you need to lower the volume all the way down and slowly increase volume or you will blow your ears. It is very good for recording. I even use it to record drums that are 10 feet away (I haven't bought drum mics) but it sounds the best when recording voice and acoustic guitar, Thanks,
