Description

The NAV4800 multi-function DSP unit from Sabine offers full control and fast setup of your production audio rig, easy configuration and secure installation of your commercial PA sound system, and complete signal routing for multi-room venues--all with Sabine's superior DSP algorithms and robust hardware platform.

The NAV4800 is a complete 4 in/8 out digital system processor. 32-bit (40-bit extended) floating point processors and high-performance 24-bit digital converters represent the latest in signal processing technology.

Navigator Remote Control software provides a heads-up status display of all systems and fast access to all parameters. Equally powerful is the front panel control when you need full access at the rack position.

The FBX Feedback Exterminator is one of many innovations Sabine incorporated into the NAV4800. All DSP functions, including equalization, level control, delay, polarity, routing, multiple crossover selections, and gain management. Industry-standard Analog Devices SHARC processors handle the DSP processing.

Free firmware and software upgrades are easily done by connecting to Sabine's website. Keep your NAV4800 current with newly developed algorithms and functions. Flexible save and recall functions and complete system security round out this rugged unit.

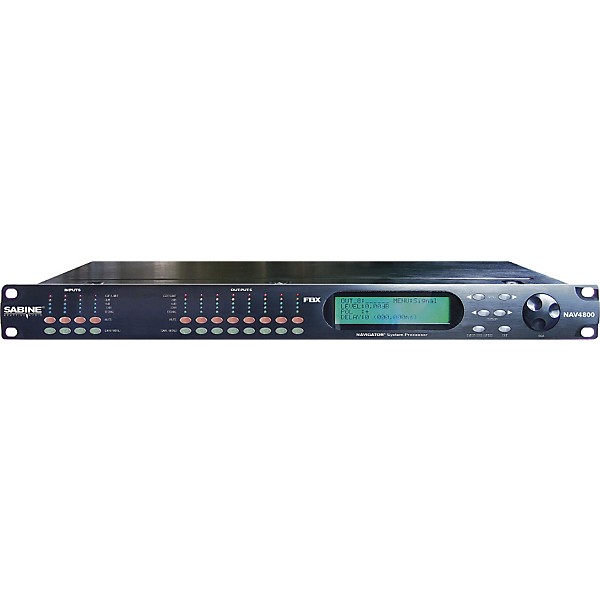

Sabine NAV4800 Navigator System Processor 4-in, 8-out With Ethernet Option

Features

  • 4 in, 8 out loudspeaker controller, matrix music mixer, and signal router
    • Equalization
    • Parametric, high and low shelving; 8 bands per each I/O
    • FBX Feedback Exterminator, 8 filters per input
    Crossovers
    • Multiple types and application presets
    • 3 filter types
    • Slopes to 48dB
    Gain Management
    • Gain on all I/Os
    • Compressors
    • Limiters
    • Automatic Gain Control
    Routing and Delay
    • Patch any input to any output
    • Adjust polarity
    • Delay inputs and outputs; 450ms available per channel
    Performance
    • 48kHz sampling rate
    • 24 A/D, D/A converters
    • 32-bit (40-bit extended) processing
    Memory and Security
    • 30 programs, save and recall
    • Multiple security levels; password protected
    • All firmware and software upgradeable 3 in, 6 out loudspeaker controller, matrix mixer, and signal router
    Equalization
    • Parametric, high and low shelving; 8 bands per each I/O
    • FBX Feedback Exterminator, 8 filters per input
    Crossovers
    • Multiple types and application presets
    • 3 filter types
    • Slopes to 48dB
    Gain Management
    • Gain on all I/Os
    • Compressors
    • Limiters
    • Automatic Gain Control
    Routing and Delay
    • Patch any input to any output
    • Adjust polarity
    • Delay inputs and outputs; 450ms available per channel
    Performance
    • 48kHz sampling rate
    • 24 A/D, D/A converters
    • 32-bit (40-bit extended) processing
    Memory and Security
    • 30 programs, save and recall
    • Multiple security levels; password protected
    • All firmware and software upgradeable
