Description

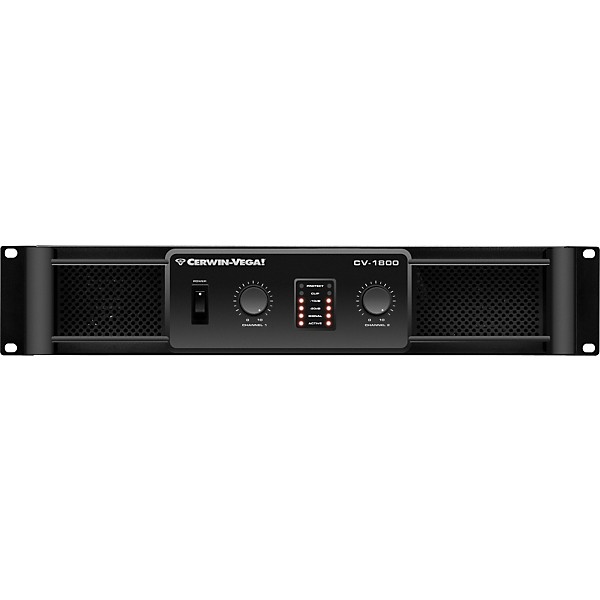

The Cerwin Vega CV-1800 is a rugged, 2U rackmountable power amplifier with a highly efficient tunnel cooling system to ensure reliable, cool running operation, 21-position detent level control knobs for easily repeatable settings, signal and clip indicators for convenient monitoring of the amplifier's status, The front panel also includes a power on/off switch, and 6-segment, multi-color LED ladders for visual monitoring of signal status per channel. The CV-1800 supports bridged mono operation, and has exceptional THD (Total Harmonic Distortion) and Signal-to-Noise ratings.

The CV-1800 amplifier features an electronic design that delivers clean, reliable performance, protection circuitry guards against thermal overloads, short circuits, DC voltage, subsonic frequencies, and current overdriving. Additionally, independent limiters provide for speaker protection, and high-pass filters to eliminate extreme low end which can damage small speaker systems.

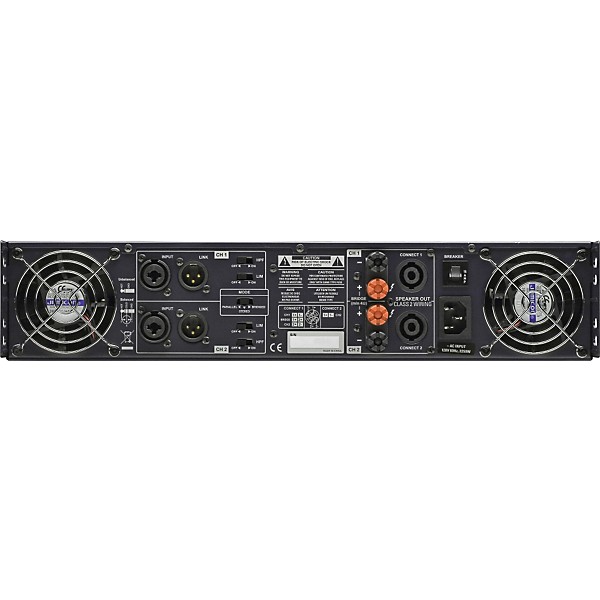

Rear panel input provisions include the balanced combo (combined XLR and 1/4" TRS) connectors, while outputs are handled by 5-way binding post and Speakon connectors. The rear panel is also home to a high pass filter switch, limiter switch, and a mode select switch (for bridged/parallel/stereo operation).
Restock Cerwin-Vega CV-1800 Power Amplifier
Restock Cerwin-Vega CV-1800 Power Amplifier
Restock Cerwin-Vega CV-1800 Power Amplifier

Features

  • Front panel LED displays indicate power, clip protect and
  • signal status
  • Balanced XLR and TRS Input connectors
  • Speakon NL-4 locking output connectors and binding posts
  • Detented 21-position input level control knobs
  • Defeatable limiter and high pass filter per channel
  • Short circuit, thermal, current limit, DC offset, current inrus, RF protection, Turn on/ Turn off muting protection
  • 5-way binding post and Speakon output connectors
  • Flow-through cooling design prevents overheating with continuously variable speed, front to rear

Specs

  • Frequency Response: 0/-0.5dB ; 20Hz-20KHz, 0/-3dB: 5Hz-60KHz
  • Rated Output Power (Stereo): 400 watts at 8 ohms; 600 watts at 4 ohms; 900 wats at 2 ohms
  • Rated Output Power (Mono): 1200 watts at 8 ohms; 1800 watts at 4 ohms
  • At Full Power @4 ohms: 19.5A / 9.5A
  • Signal to Noice Ratio: 20 Hz - 20k Hz - 102dB
  • Distortion (SMPTE-IM): .01%
  • Output Circuitry: AB
  • Damping Factor (400 Hz): 280Dimensions (L x W x H): 18.98 in. x 16.54 in. x 3.46 in.
  • Weight: 39.68 lbs

Reviews

4.5

2 Reviews

0%

of respondents would recommend this to a friend

Reviewed by 2 customers

  • Awesome

    5

    submitted11 years ago

    byBRANDON

    fromMontgomery, AL

    THis thing rocks, for the price, this is a beast. I did two gigs and this thing is loud. I pushed it to the limits and it did not sweat it out at all. Heavy as all get out, but that means rock solid performance. weighing in at 50lbs so get ready!

  • Good Clean Power but Heavy as can be

    4

    submitted15 years ago

    byBart

    fromSchaumburg, IL

    Just pick this amp up to power a mobile dj unit. It's powering two JBL Eon 305s with no problem at half gain and a real clarity and no clipping. The feature set with protective highs and lows is also cool and useful. Did not realize how big it was though. It sticks out an inch in my rack without any cables and weighs over 30 lbs. Definitely not the first pick if you're looking for something light and compact, but otherwise this amp rocks.
