Description

The Evox 5 is a portable compact sound reinforcement system based on the subwoofer and satellite design. Evox 5 combines the quality and reliability of RCF transducers with a powerful amplifier and space-saving design. The system features five 2 in. full-range transducers in the satellite and a powerful 10 in. woofer in a bass reflex enclosure. The system is designed to be the perfect portable solution for live music and DJs, but it is also a perfect tool for presentations and corporate.

EVOX array design features constant horizontal directivity coverage of 120°, offering a perfect listening experience to the audience. The vertical array design is progressively shaped to guarantee a correct listening from the first row and to avoid a high frequency beaming typical of straight array. Extensive testing with instruments and voices during the design process as well as power and reliability testing make the EVOX system perfect for DJs, solo musicians or bands.

Extraordinary clarity and dynamic of vocal reproduction, both at low and very high levels make EVOX a great tool for conferences and speeches.

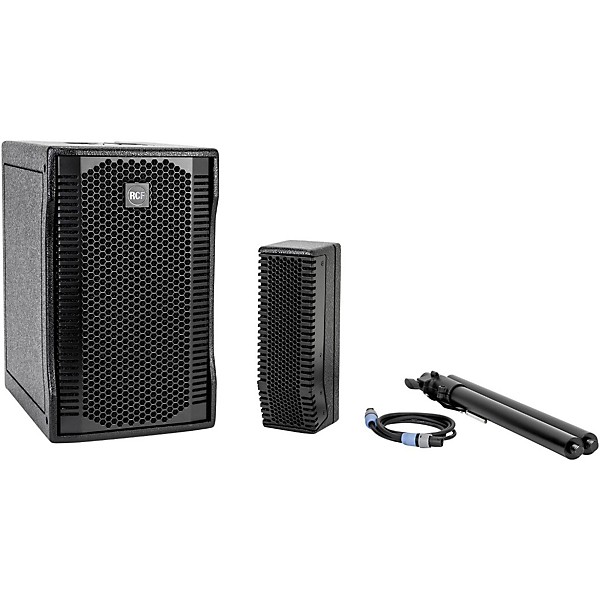

RCF EVOX 5 Personal Line Array PA System

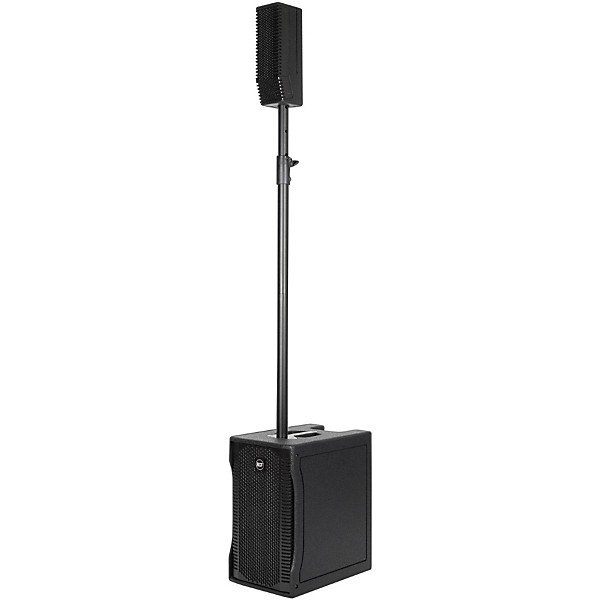

RCF EVOX 5 Personal Line Array PA System

Features

Speaker configuration
  • Active/passive: Active
  • Type: Full range
  • LF driver: 10 in.
  • MF driver: N/A
  • HF driver: 5 x 2 in.
Power
  • Amplifier class: D
  • Wattage: 400W RMS, 700W peak
  • Mixer/preamp: N/A
Audio
  • Frequency response: 45Hz - 20kHz
  • Coverage pattern: 120° x 30°
  • Max SPL: 125 dB
Inputs
  • XLR/TRS: 1
  • TRS: N/A
  • TS: N/A
  • RCA N/A
Output/thru
  • XLR: 1
  • TRS: N/A
  • TS: N/A
  • SpeakON: N/A
Enclosure
  • Cabinet material: Baltic birch plywood
  • Width: 11.3 in.
  • Height: 19.3 in.
  • Depth: 16.8 in.
  • Weight: 42.3 lb.
