Description

The Phonic MAX 1600 Power Amplifier delivers a whopping 450W of power at 4 ohms (stereo)-900W in bridge mono mode-making it well-suited for larger venues. Input to the MAX 1600 amp is achieved via XLR or 1/4" jack, and output is achieved either through Speakon-type connectors or traditional binding posts. The MAX 1600 features ground switches, and the option to choose between stereo, parallel, and bridge operating modes, making this amplifier ideal for real-world application.

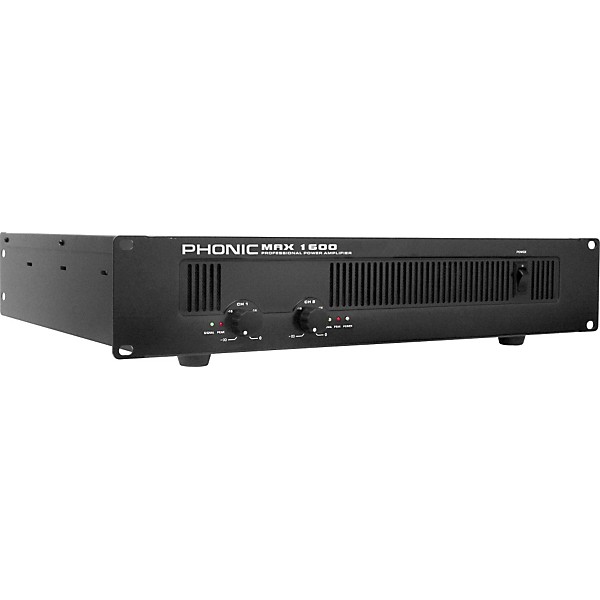

Phonic MAX 1600 Power Amplifier

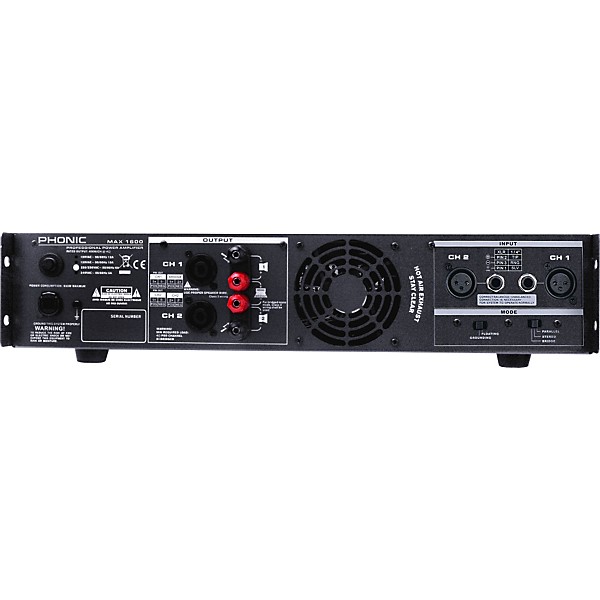

Phonic MAX 1600 Power Amplifier

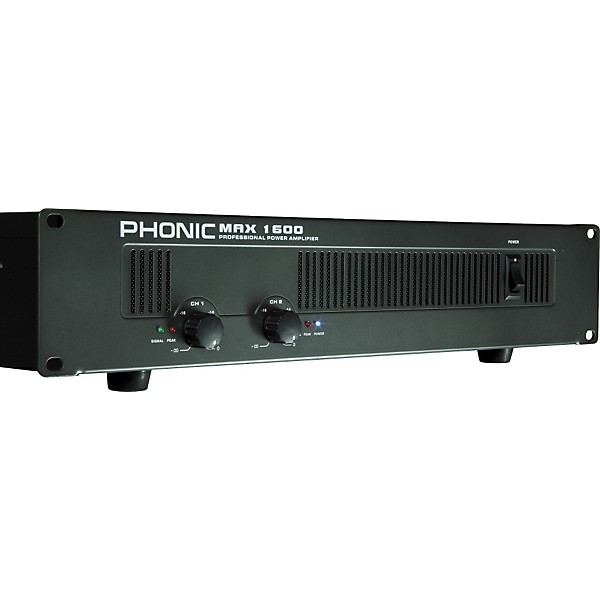

Phonic MAX 1600 Power Amplifier

Features

  • High-current toroidal transformers for greater power and low noise
  • Balanced 1/4" TRS and XLR inputs for maximum flexibility
  • Grounding / Floating switch to avoid grounding loop
  • Binding post and Speakon-type outputs
  • Front mounted gain controls for easy access
  • Signal and Peak LED indicators to monitor performance
  • Short circuit, thermal, subsonic, RF protection, output DC offset
  • Power on/off muting

Specs

Stereo Mode:
  • 280W @ 8 ohms EIA, 1kHz
  • 450W @ 4 ohms EIA, 1kHz
Bridge Mono Mode:
  • 900W @ 8 ohms EIA, 1kHz
  • Total Harmonic Distortion: 0.1%
  • Output circuitry: Class H
  • Input Sensitivity @ 8 ohms: 1.23V (+4dBu)
  • Distortion (SMPTE-IM): <0.01%
    Noise (unweighted 20Hz-20kHz below rated output): 100dB
  • Damping Factor: >300 @ 8 ohms
  • Frequency Response: 20 Hz-20kHz, +0/-1dB points: 5Hz-50kHz
  • Input Impedance: 20kOhm balanced, 10kOhm unbalanced
  • Cooling: Continuous variable-speed fan, front-to-rear air flow
  • Input: XLR and 1/4" TRS
  • Output: Speakon and binding posts
  • LED Indicators: Blue Power, Green Signal, Red Peak
Controls:
  • Front Panel: CH1 and CH2 GAIN knobs with 41 detents
  • Rear Panel: Parallel, Bridge, and Stereo Operation Mode side switches, floating on/off switch, and a Current-Break reset button
  • Protection Circuitry: Short circuit, thermal, subsonic, RF, output DC offset, power on/off muting
  • Power Consumption: 900W
  • Power Requirement (depends on region): 100120VAC, 220240VAC, 50/60Hz
  • Dimensions: 19"W x 3.46"H x 15.9"D
  • Weight: 33 lb.
