Description

GT Replacement stylus for tough handling - extremely sturdy for scratching DJs

GT was developed by Ortofon in close co-operation with SWS Audio GmbH. The cartridge was named
"Great and Tough" and was based on the construction of the well-known Ortofon Series 500 design -
mend for standard half inch mounting - in a black housing with white printing.

The vital parts in the GT are based on a very robust and reliable parts used in Scratch. Further, during
development of GT, efforts were also concentrated on supplying a very high output of 8 mV and
improvement of frequency response to give higher resolution and sound image.

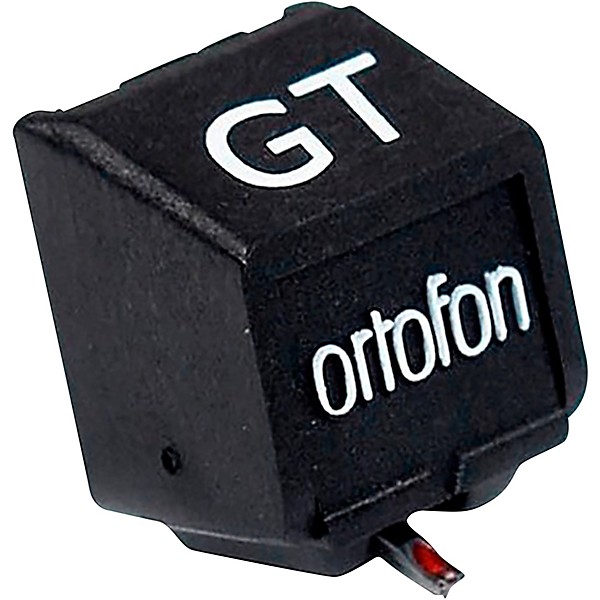

Ortofon ORTOFON GT STYLUS

Features

For a stylus that's tough and reliable. Order today.

Specs

  • Output voltage at 1000Hz, 5cm/sec. - 8 mV
  • Channel balance at 1kHz - 1,5 dB
  • Channel separation at 1kHz - 25 dB
  • Channel separation at 15 kHz - 18 dB
  • Frequency range at -3dB - 20-20.000 Hz
  • Frequency response - 20-18.000 Hz +/- 2 dB
  • Tracking ability at 315 Hz at recommended tracking force - 80 μm
  • Compliance, dynamic lateral - 6 μm/m N
  • Stylus type – Spherical
  • Stylus tip radius - R 18 μm
  • Tracking force range - 3,0-5,0 g (30-50 mN)
  • Tracking force recommended - 4,0 g (40 mN)
  • Tracking angle - 20°
  • Compatible with cartridges - GT
