Audio-Technica

Description

An integral part of Audio-Technica's 2000 Series, the versatile ATW-T210a UniPak bodypack transmitter has both low- and high- impedance inputs plus a bias connection, for use with dynamic and electret condenser microphones, as well as Hi-Z instrument pickups.

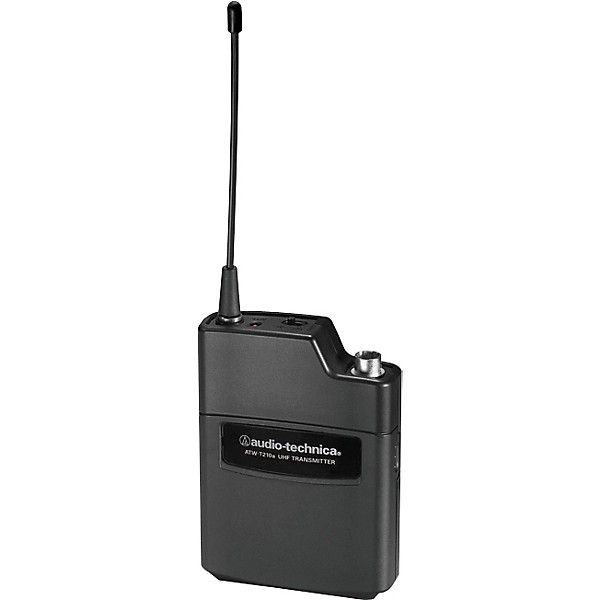

Open Box Audio-Technica ATW-T210a 2000 Series UniPak Bodypack Transmitter Level 1 Band D

Features

  • Rugged housing with a reversible clothing clip
  • Recessed locking HRS-type microphone input connector
  • LED "on" indicator
  • 10 compatible user-switchable channels in one of two UHF frequency ranges
  • Microphone or line input with DC bias voltage
  • Internal channel selector switch
  • Internal trim controls for mic and line inputs
  • Integrated two-position top-mounted power/mute switch
  • Digital Tone Lock to identify the wireless transmitter to the receiver
  • Operates on two AA batteries
  • Battery lifeHigh: 7 hours (alkaline), Low: 9 hours (alkaline)
  • Field replaceable whip antenna

Specs

  • RF Power Output:
  • High: 30 mW
  • Low: 10 mW (switchable), at 5Î
  • Spurious Emissions: Following federal and national regulations
  • Input Connections:
  • Four-pin Locking Connector
  • Pin 1: GND
  • Pin 2: INST INPUT
  • Pin 3: MIC INPUT
  • Pin 4: DC BIAS +9V
  • Batteries: 2 1.5V AA (not included)
  • Battery Life:
  • High: 7 hours (alkaline)
  • Low: 9 hours (alkaline) Depending on battery type and use pattern
  • Dimensions: 66.0mm (2.60") x 22.5mm (0.89") x 92.3mm (3.63")
  • Net weight: 81g (2.9oz), without batteries
