Description

The WA 120 is the most affordable and compact of Nady's growing, popular line of wireless PA systems. Ideal for many applications - classrooms, conference/meeting rooms, churches, health clubs, and small auditoriums - the Nady WA 120 is powerful, lightweight and easily portable.

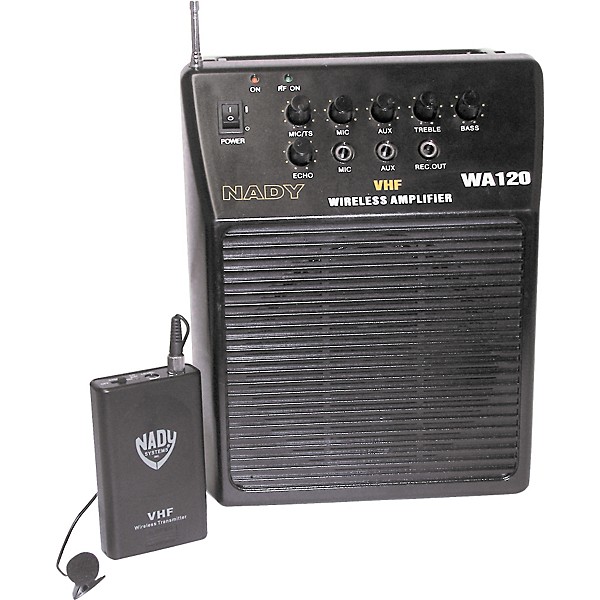

Nady WA 120 Portable PA System with Wireless Omni-Lavalier Mic Band N

Features

  • WA 120:
  • Noise reduction Companding circuitry
  • Powerful 20W audio output
  • Built-in echo/reverb, 1/4" unbalanced input jacks
  • Record out
  • Treble and bass controls External AC adapter or internal battery power(8 alkaline or rechargeable D batteries)
  • Convenient charging ports for 9V rechargeable transmitter batteries (NiCad or Ni-MH)
  • Small and lightweight
  • WLT Bodypack
  • Transmitter:
  • Lavalier microphone
  • OFF/STANDBY/ON switch
  • Low battery LED
  • Locking 3.5mm mini-jack provides secure mic cable connection
  • Easily accessible input level
  • Nady LM-14 Omnidirectional Wireless Lavalier Microphone
  • Compatible with all Nady body-pack with 3.5mm or 4-pin mini XLR plugs

Specs

  • Audio Power Output: 20W maximum, 4 ohms
  • External AC Power: 100120VAC/60Hz or 200240VAC/50 Hz
  • (as supplied)
  • AC Power consumption: 40 VA
  • External DC Power: 12-15VDC (center conductor negative and
  • sleeve positive), 1800 mA
  • Fuse: 1TA, 250V, 5 X 20mm glass type
  • Internal Batteries: 8 "D" size alkaline batteries (SUM-1) y/ MIC 1/TS: -52dB +/-2dB, 150-15KHz +/-3dB
  • Frequency Response: MIC 2: -52dB +/-2dB, 150-15KHz +/-3dB
  • AUX: -18dB +/-2dB, 100-15KHz +/-3dB
  • T.H.D.: 1%
  • Inputs: One each wireless mic, hardwired mic and
  • AUX line inputs
  • Tone Control Range: Treble: ±5dB at 10KHz
  • Bass: ±4dB at 200 Hz
  • REC output level: 280mV at 100 Kohms
  • Charging current,
  • "AA" battery charger: 70-150mA (DC)
  • 9V battery charger: 5-70mA (DC)
  • Wireless Operating
  • Frequency Range: 170-216MHz, FM(3E)
  • Wireless Operating
  • Distance: 100 ft. typical, up to 200 ft. line of sight
