Nady

Description

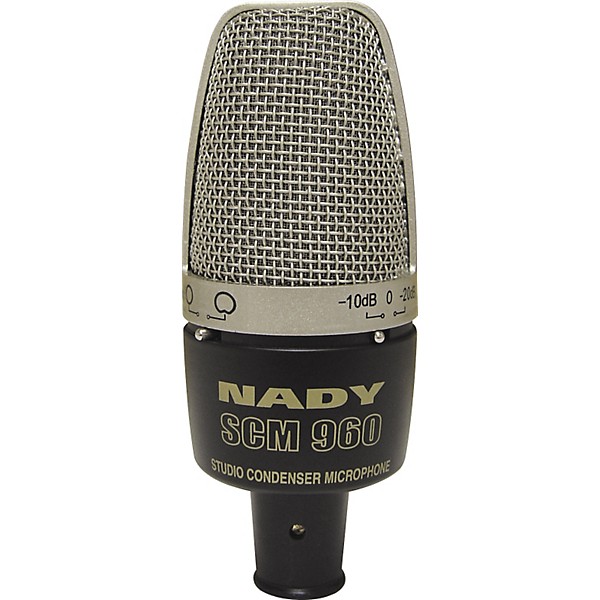

The Nady SCM 960 Studio Condenser Microphone is a large, pressure-gradient condenser mic with a gold-sputtered diaphragm, FET preamplifier, and internal shock mount construction for structural integrity and reliability. It has selectable cardioid/omni polar patterns and selectable -10dB or -20dB attenuation. 48V phantom power required.
Nady SCM 960 Studio Condenser Microphone

Features

  • True condenser pressure-gradient microphone
  • 1" gold-sputtered diaphragm
  • FET pre-amplifier
  • Cardioid/omni polar patterns
  • 0, -10dB, -20dB attenuation pad
  • 3-pin gold-plated XLR connection

Specs

  • Sensitivity: 16mV/Pa
  • Frequency range: 25Hz-20KHz
  • Impedance: <200 Ohms
    Max. SPL (1% THD @1000Hz): 125dB
  • Equivalent noise level to IEC 268-4(A weighted): 19dB
  • S/N ratio re 1Pa: 76dB
  • Power requirement: +48VDC phantom power
  • Current consumption: <3mA
    Diameter: 2.0" (50.5mm)
  • Length: 5.25" (133mm)
  • Net weight: 11 oz (311g)
