Description

The Nady PMX-600 Powered Mixer with DSP effects was developed using the expertise of professional sound engineers and working musicians. It has superior performance and offers greater flexibility than most other powered mixer in its price range.

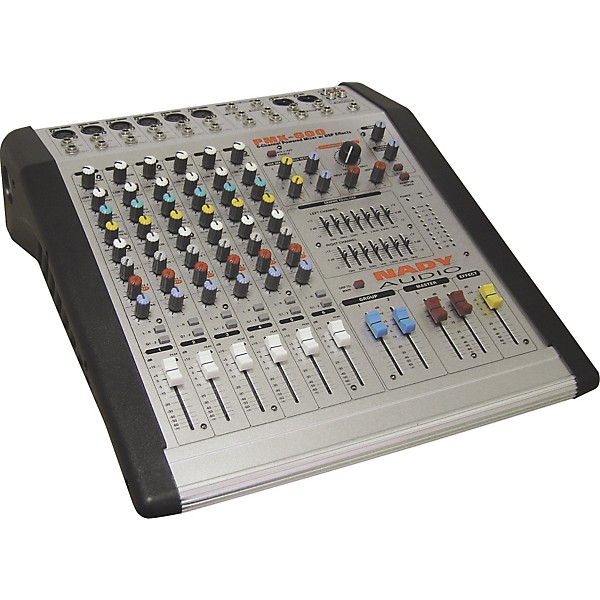

Nady PMX-600 Powered Mixer

Features

  • 6 mono input channels
  • XLR mic and 1/4" TRS line inputs
  • Fan-cooled, bipolar amplifier with 2 x 225W RMS power at 4 ohms
  • 4 master faders
  • L/R main mix and G1-2 group submix buses
  • Group to Main enable switch
  • 32-bit DSP reverb (plate, gate, room, hall, stadium)
  • 2 x 7-band graphic EQ
  • Channel trims and peak LEDs
  • Switchable low-cut filters
  • Channel hi, low, and sweepable mid controls
  • Switchable +48 volt phantom power
  • 2 aux sends and 2 aux returns each with level control
  • Tape/CD In and record out stereo RCA jacks with tape level control
  • 6 balanced 1/4" TRS inserts
  • 2 x 10-segment LED display bargraph meters with power amp peak indicator
  • Balanced 1/4" TRS and XLR stereo main outs
  • Balanced 1/4" group 1 and 2 outputs
  • Dual left and right 1/4" amplifier outputs for easy speaker daisy chaining
  • Internal shielded AC supply with 115V/230V selector switch

Specs

  • INPUT SECTION
  • Input Connector Input Impedance Max Level
  • MONO CH MIC XLR BALANCED 2.8K_ +13dBu, 3.6V RMS*
  • MONO CHANNELLINE 1/4" UNBALANCED 10K_ +17dBu, 5.5V RMS
  • 1/4" TRS BALANCED 20K_ +23dBu, 11V RMS
  • AUX RETURN 1/4" UNBALANCED 10K_ +11dBu, 2.8V RMS
  • TAPE IN STEREO RCAJACKS 10K_ +18dBu, 6V RMS
  • INSERTINPUT 1/4" UNBALANCED 10K_ +22dBu, 10V RMS
  • With Trim, Tape In, and Aux Return Level controls set to Mid (50%)
  • *With Trim set to Min (0%)
  • Phantom Power on XLR inputs : 48VDC, globally selected
  • MIXER SECTION
  • Trim: Range 28dB
  • Channel High EQ +/-15dB: 12KHz, Rotary control
  • Channel Mid EQ +/-15dB: Variable 250Hz - 6KHz, Two Rotary controls
  • Channel Low EQ +/-15dB: 80Hz, Rotary control
  • Channel Aux 1, Aux 2 Eff, Pan: Rotary controls
  • Low Cut, L-R Select, G1-2 Select: Push-button switches
  • Channel faders: -_to +10dB, 60mm sliders
  • Echo Effect Time Delay: 0 to 200mS
  • Dual 7-Band EQ +/-12dB: 63Hz, 250Hz, 630Hz, 1KHz, 2.5KHz, 6.3KHz, 15KHz 20mm sliders
  • Master and Group dual faders, Effect single fader : -_to +10dB, 60mm slider
  • MASTER OUTPUT SECTION
  • Channel Input to Main Output
  • Frequency Response: 20Hz25KHz (+/- 3dB)
  • THD + Noise: 0.04%
  • S/N Ratio: -85dB (gain controls @ unity), -94dB (gain controls down)
  • Noise Floor: 350uV (gain controls @ unity), 150uV (gain controls down)
  • Output Connector Output Impedance Max Level
  • AUX SEND 1 & 2 1/4" UNBALANCED 200_ +21dBu, 9V RMS
  • GROUP1 & 2 1/4" UNBALANCED 200_ +18dBu, 6V RMS
  • CONTROLROOM L-R 1/4" UNBALANCED 200_ +8dBu, 1.9V RMS
  • RECORD OUT STEREO RCAJACKS 1.4K_ +21dBu, 8.5V RMS
  • MAIN L-R 1/4" UNBALANCED 200_ +21dBu, 8.5V RMS
  • XLR BALANCED 400_ +27dBu, 17V RMS
  • HEADPHONE 1/4" STEREO 12_ 2 x 50mW, 1.75V RMS**
  • **When connected to 32_output
  • POWER OUTPUT SECTION
  • 8_Both Channels Driven (1% THD): 150W RMS per side
  • 4_Both Channels Driven (1% THD) : 200W RMS per side
  • Channel Input to Speaker Output
  • Frequency Response: 25Hz22KHz (+/- 3dB)
  • THD: 0.09%
  • S/N Ratio: -72dB (gain controls @ unity), -85dB (gain controls down)
  • Noise Floor : 9mV (gain controls @ unity), 2mV (gain controls down)
  • Amplifier Protection: Fan cooling, short circuit protection, current limiting, Speaker DC protection circuits, clip indicators,
  • Power ON/OFF relays for anti-thump circuit
  • GENERAL
  • Power Requirements: Voltage selectable, 115VAC/60Hz or 230VAC /50Hz
  • Fuse Requirements: 5x20mm glass tube F.B. 8A250V @ 115VAC
  • 4A250V @ 230VAC
  • Weight : 24.5 lbs. (11.1 Kg)
  • Dimensions (HWD): 6.4" x 16.9" x 17.2" (163 x 430 x 437mm)
