Nady

Description

The wireless Nady's PEM-500 in-ear monitor system offers all the advantages of wireless in-ear monitoring”mobility, more focused audio, freedom from feedback, and elimination of transport issues associated with conventional floor monitors”as well as the long-term health benefits of safe listening levels. The wireless system includes the PEM-500R bodypack receiver and a PEM-500T half-rack transmitter, as well as a pair of lightweight, miniature in-ear speakers.

For the first time, a wireless in-ear monitor system combines state-of-the-art advanced frequency-agile PLL synthesized UHF technology high-end performance, ease of use, and unprecedented affordability. The Nady PEM-500 wireless system offers a choice of 16 user-selectable UHF channels in both the transmitter and receiver(s) as well as stereo (MPX system) or mono mode transmission. This system is indispensable for live-stage music performance, and is loaded with features previously found only in wireless systems costing several times more.
Nady PEM-500 Wireless System (564 - 574.3MHz)
Nady PEM-500 Wireless System (564 - 574.3MHz)
Nady PEM-500 Wireless System (564 - 574.3MHz)

Features

  • Available in the 564-574.3MHz UHF frequency band for interference-free, long-range performance (up to eight systems can be operated simultaneously, depending on location and frequency band)
  • System consists of PEM-500T stereo transmitter and one bodypack stereo PEM-R receiver (both offer 16-channel user selectability)
  • Any number of additional receivers can be operated with the same transmitter if all are set to the same channel
  • Proprietary companding circuitry for wide dynamic range and clear, natural sound
  • Operating range: up to 300 ft. typical (depending on site conditions)

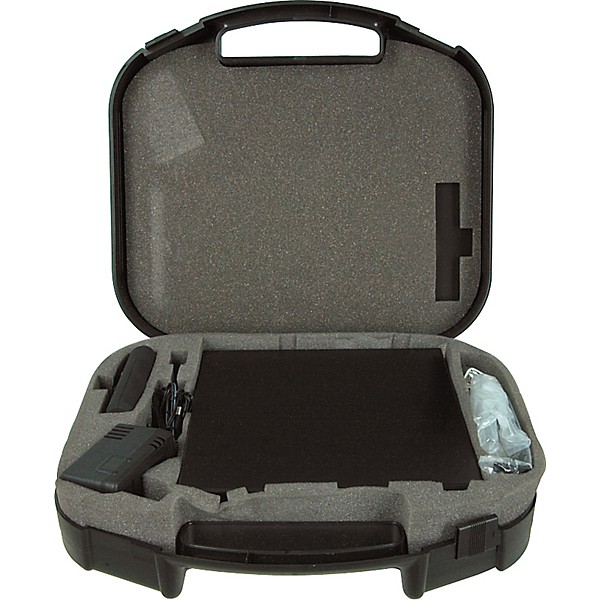

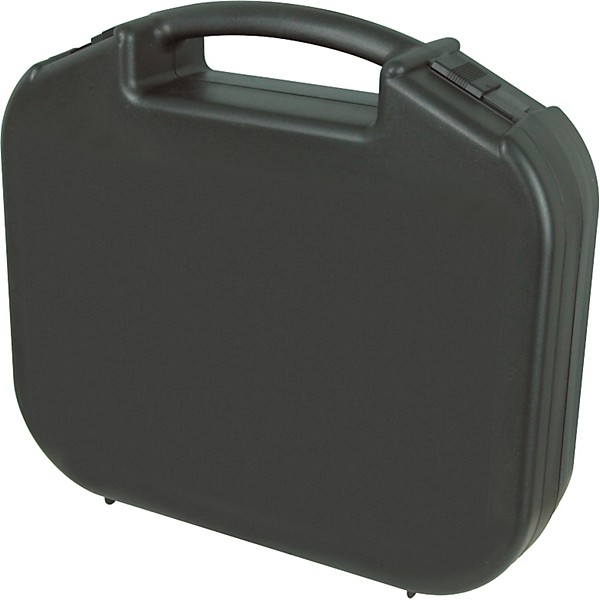

  • Rugged, foam-padded traveling case provides easy, safe transport and storage

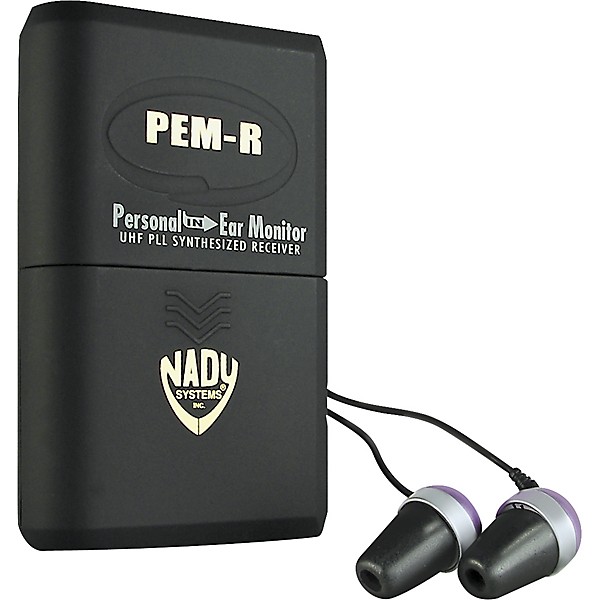

    • PEM-R Bodypack Wireless Receiver:
    • Portable bodypack receiver features a power switch; switchable built-in volume limiter; Output Level control; stereo/mono select switch; two-color (red/green) 3-way Unit On/Signal/low-battery LED indicators
    • Operates up to six hours (depending on volume) on a single 9V alkaline battery
    • Each receiver is supplied with a pair of miniature, lightweight (yet powerful) in-ear Koss stereophones with soft rubber foam mounts in three shapes (conical, cylindrical, and hexagonal); designed for fitted comfort and optimum acoustic transfer and isolation
    • Rear clip can be rotated 90 for attaching receiver either vertically or horizontally to clothing
    PEM-500T Stereo Transmitter:
    • Rugged, all-metal half-rack can be rackmounted with single rackmount kit (included), or side-by-side with optional dual rackmount kit
    • Microphone Input allows wireless cueing of performers on stage
    • Front panel features Input Level control; stereo headphone monitor output jack and volume control; Select button for choosing one of 16 UHF channels, LED channel display; L/R 10-segment Audio Input Level displays
    • Back panel provides BNC jack for the detachable antenna; stereo/mono select switch, 1/4" TRS balanced microphone input, XLR jacks for left and right line inputs
    • Externally powered by AC/DC power adapter

    Specs

    Overall Wireless System
    • Operating frequency range modulation: 564.000 - 574.3MHz
    • Modulation: Mono or stereo (MPX with pilot tone), FM: F3E ±60KHz, nominal
    • Audio frequency response: 5012,000Hz
    • T.H.D.: <1%
      Signal-to-Noise Ratio: >80dB, with propietary companding noise reduction
    • Operating Range: Up to 300 feet typical (depending on site conditions)
    PEM-500T Wireless Transmitter
    • RF output power: Max. 50mW (country dependent)
    • L/R audio line inputs:
    • Input impedence: 600Î
    • Nominal input level: 0dBm
    • Max. input level: +6 dBm
    • Headphones out power: 100 mW max. @32Î, 190mW @ 16Î
    • Spurious Emission: > -55dBc
    • Frequency stability: ±:100PPM
    • Controls: Power On/Off, Stereo/Mono, and channel select switches; input level, headphones monitor volume controls
    • Connectors: 1/4" stereo headphones monitor out, 1/4" TRS balanced mic input, balanced XLR & R line input, and 2.1mm barrel-type DC input jacks; BNC antenna socket
    • Indicators: Power ON LED; channel and 10-segment L/R audio input LED displays
    • Antenna: 1/4 wave rigid detachable, BNC mount
    • Power requirement: 14V, 500mA, AC adapter supplied, (UL/CSA approved 120VAC or CE approved 230VAC)
    • Dimensions: 8.27"D x 9.13"W 1.73"H (210mm x 232mm x 44mm)
    • Weight: 2.98lb. (1.35kg)
    PEM-500R Wireless Receiver
    • Maximum audio output level: 20mW
    • Minimum audio output load impedance: 16Î
    • RF sensitivity: 2.5uV (-100dB/12dB SINAD)
    • Squelch threshold: < -90dB
      Spurious rejection: >55dBc
    • Audio output connector: 3.5mm Stereo (Tip=left, Ring=Right, Sleeve=ground)
    • Controls: Volume adjust, limiter ON/Off, power ON/OFF, Stereo/Mono select switches; 16-channel selector switch
    • Indicators: Two-color (red/green) 3-way unit, ON/Signal/Low Battery LED
    • Power requirements: 9V alkaline battery
    • Current drain: < 40 mA
      Battery life: Up to 6 hours, volume dependent
    • Antenna: Internal
    • Dimensions: 4.2"H x 0.9"D x 2.6"W (106mm x 23mm x 66mm)
    • Weight: 2.85oz. (80kg)
