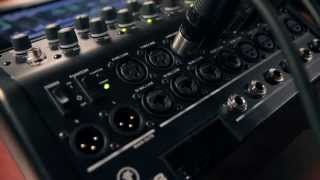

MACKIE DL1608L LIGHTNING 16CH

MACKIE DL1608L LIGHTNING 16CH

Mackie
Description
The DL1608L is a 16-channel mixer with revolutionary wireless iPad control that makes any live sound engineer's job and workflow much more enjoyable and exciting. This latest version of the series features a Lightning connector, replacing the 30-pin version. The Lightning connection is smaller and faster than 30-pin. The "L" delineation in the model name indicates the Lightning connector.

With 16 high-quality Onyx microphone preamps, 24-bit Cirrus Logic AD/DA converters, and powerful internal DSP processing, the DL1608L has plenty of unmatched hardware power to support the extremely intuitive user interface of the iPad. There is an iPad dock built-into the unit should you choose to use it in it's standard mixing form, or you can simply pop the iPad out of the dock to freely move about the venue to adjust your mix at will with the use of an additional Wi-Fi router. You'll have Full hands-on control of audio level, 4-band EQ, compression, gate, delay, reverb, and more for each of the DL1608's 16 channels and master fader. Perfect for a wide variety of smaller applications and venues, the DL806 is the most modern, powerful utility mixer available. Forget bulky consoles and racks of gear. The power is at your fingertips.

*Wi-Fi router required for wireless operation. Wi-Fi router and iPad, iPod touch or iPhone not included.
*Wireless control supported from all iPad models. Docked control supported from iPad, iPad 2 and iPad (3rd generation)
*Wireless control supported from iPod touch (4th and 5th generation), iPhone 4, iPhone 4S and iPhone 5
*iPad must be docked and the app must support background audio playback to integrate music
Mackie DL1608L Lightning 16-channel Digital Live Sound Mixer w/ iPad Control
Mackie DL1608L Lightning 16-channel Digital Live Sound Mixer w/ iPad Control
Mackie DL1608L Lightning 16-channel Digital Live Sound Mixer w/ iPad Control
Features
  • Lightning connection
  • 16 Onyx mic preamps
  • High-end Cirrus Logic converters
  • Ultra low-noise, high-headroom design
  • 4 aux sends for monitor mixes
  • Master L/R output for mains
  • Choice of powerful, touch-sensitive plug-ins
  • 4-band EQ, gate and compression on inputs
  • 31-band GEQ and comp/limiter on outputs
  • Global reverb and delay
  • Seamless wired to wireless mixing
  • Tune the room from anywhere
  • Get on stage to ring out monitors
  • Personal monitor mixing with access control ability
  • Use up to 10 wireless devices simultaneously
  • Intuitive Master Fader app for all iPad models
  • My Fader app for quick control from iPhone or iPod touch
  • "Grow and Glow" visual feedback
  • Preset and snapshot recall
  • Record the mix to the iPad for instant sharing
Specs
Analog Audio
  • Input Connections: 12 x XLR balanced
  • 4 x XLR & 1/4" TRS combo jack
  • Mic Preamps: Onyx
  • Input Impedances: Channels 1 - 12: 3k?
  • Channels 13 - 16: 3k? XLR, 30k? 1/4" TRS
  • Maximum Input Level: XLR: +21 dBu, 1/4" TRS: +30 dBu
  • Gain: XLR: 0 to 60 dB, 1/4" TRS: -20 to 40 dB
  • Phantom Power: +48V
  • 10 mA max per mic, with up to 8 mics
  • 5 mA max per mic, with up to 16 mics
  • Output Connections: 2 x XLR balanced (L/R)
  • Output Impedance: 600?
  • Maximum Output Level: +21 dBu
  • AUX Sends: 1/4" TRS - supports balanced/unbalanced
  • 240? balanced, 120? unbalanced
  • +21 dBu max output level
Digital Audio
  • Sample Rate: 48 kHz
  • Bit Depth: 24-bit
  • Latency: 1.5 mS
Performance
  • Frequency Response: 20 Hz to 20 kHz, +0 /-1 dB
  • all inputs to all outputs
  • THD: < 0.005%
  • mic input to main output, 1 kHz @ -1 dBFS
  • EIN: -128 dBu @ 150? termination
  • Noise: Mic input to main output, A-weighted:
  • -79 dBu, with channel and main faders @ 0 dB
  • -90 dBu, with channel and main faders @ -? dB
  • Crosstalk: Adjacent inputs: < -120 dB @ 1 kHz
  • Outputs: < - 105 dB @ 1 kHz
  • Signal-to-Noise Ratio: 92 dB
  • ref +4 dBu, one channel and main fader @ 0 dB, A-weighted
  • Dynamic Range: 109 dB
  • one channel and main fader @ 0 dB, A-weighted
  • CMRR: > 70 dB @ 1 kHz (60 dB gain)
Networking
  • Connector: 100 MB Ethernet
  • Control: Complete
  • Simultaneously Connected Remote Stations: Up to 10 iPads
  • iPad System Requirements: Original iPad, iPad 2, or iPad 3rd generation
  • iOS v5.0 or higher
Power
  • External Power Supply: Yes
  • 100-240VAC, 50-60 Hz, Universal
  • User-replaceable IEC
  • Output Voltage: 12VDC
  • Current: 4A
  • DC Plug: 5.5 mm x 2.5 mm barrel with locking ring
  • Power Consumption: 48W max
General
  • Operating Temperature: 32 to 104 F (0 to 40 C)
  • Dimensions (W x H x D): 11.5 x 3.7 x 15.4" (291 x 95 x 391 mm)
  • 9U rackmount plus space for connections
  • Weight 6.9 lb.
Reviews

4.5

6 Reviews

100%

of respondents would recommend this to a friend

Filters
Best Uses
  1. Performances3
  2. Outdoor Events / Games2
  3. Amateur Recording1
Cons
  1. You Need An Ipad -41
Describe Yourself
  1. Experienced2
  2. Professional Musician1
Pros
  1. Compact3
  2. Excellent Sound3
  3. Simple Controls3
  4. Easy To Use2
  5. Versatile2

Reviewed by 6 customers

  • Great mixer forthe money

    5

    Verified Buyer

    submitted7 years ago

    byPaul

    fromundisclosed

    So far everything is going great, we are still learning the features and all of our questions so far have been answered with tech support. So much better than our old analog board and a lot smaller. The only issue we have seen is that the Ipad does get a little warm.

  • Quality vs Quantity

    5

    Verified Buyer

    submitted8 years ago

    byDroeh

    fromTacoma WA

    I believe I bought one of the 1st DL32's available... have been blown away by all the benefits... so it was an easy choice when we needed another mixer in a smaller venue... we have not been disappointed at all by the DL 1608's performance.

  • Great mixer for working band

    5

    submitted9 years ago

    byTom

    fromFort Lauderdale, FL

    I purchased this mixer about a year after it was introduced and have used it for a few years now. This mixer replaced my Allen & Health Mix Wizard & Snake. This is a great mixer with far more features than I will ever use. I just scratch the surface of this mixers capabilities and I get a great mix out of this unit for my 5 and 6 piece bands. Mackie has supported the product well with several software updates...each with useful improvements. You can play music on break through your iPad as long as its' docked. Some times I run music through an mp3 player when I don't have the iPad docked by just plugging the player into one of the extra channels. The wireless features of the mixer are great. I typically have an iPad and and iPad mini running and usually have the iPads just connected through wifi. I also find the iPhone app to be great for setting levels. Its easy to walk around with your iPad or phone and set your monitor and main mixes. After having 6 monitor sends on the 1608, its hard to go back to anything less. Everyone can have whatever mix they want. I have a Yamaha MG 16 XU mixer as well but only use it as a backup (which I have not needed). Once I got used to mixing digitally with all of the features I could want in a mixing setup that does not require a traditional mixer case with rack mounted effects and the weight that comes along with it...I'd never go back to a traditional mixer design. For a gigging band that does not always have the budget for a sound engineer - this is a great and well tested choice.

  • Good technology - could use a few more upgrades

    4

    Verified Buyer

    submitted10 years ago

    byRajiv

    fromundisclosed

    Unlike the other Mackie Mixers that I had, this one lacks a USB port for routing music through laptop etc. Would have been nice. Like the iPad interface, although not sure if I can play the music from the iPad wirelessly. Would love to see a wifi connection to the mixer - rather than the Ethernet connection that it needs.

  • good

    4

    Verified Buyer

    submitted10 years ago

    bymark

    fromcanton IL

    nice mixer

  • JUST BUY ONE

    4

    submitted10 years ago

    byBald Melon

    fromJacksonville , Fl

    this is the first product that I've purchased lately that I've been totally stoked about,it's light weight but very well constructed.The DL 1608 has plenty of inputs for our 4 piece blues/rock band, and 6 aux sends for monitors, we use 3...the on board effects are just awesome,nice warm reverbs and delays..The downside to this product is you have to purchase a Ipad -4 ,which you have to consider in the price,which is already pricey for the average working musician. BUT the rewards for biting the bullet and buying this unit are ten fold...WE SOUND SOOO GOOD NOW

  • Previous
  • 1
  • Next
Q&A

Have a question about this product? Our expert Gear Advisers have the answers.

  • submitted4 years ago

    asked byWes

    fromSanta rosa Beach, Florida

    Why does the description say, w/Ipad if it doesn't come with the Ipad?

    Open Reply - Ronald
    Thank you for bringing this to our attention. I'll request to have that corrected.

  • submitted4 years ago

    asked byStef

    fromWinter Garden

    Wi-Fi router required for wireless operation, does this mean the sound board will not work without a router?

    Open Reply - Ronald
    You can direct line the mixer, but for the extras you would need a router.

  • submitted4 years ago

    asked byAlan

    fromLos Angeles

    From the Ipad can i play music from spotify directly thru this mixer as well as control mixing from same ipad at same time

    Open Reply - Ronald
    You cannot. The app is just for adjusting the levels of the signal.

  • submitted5 years ago

    asked byCharley

    fromPurdy, MO

    What size iPad

    Open Reply - Thomas
    I’m sorry. Your question is not clear. Please call us at 877 5403

  • submitted5 years ago

    asked byMV

    fromArizona

    Can you record a live performance or send mix to a DAW with this product? Is there a USB port?

    Open Reply - Ronald
    You would need an interface between the two for it to connect to a computer.

  • submitted6 years ago

    asked byAbby

    fromPhiladelphia , PA

    Does the Mackie DL1608L Lightning 16-channel Digital Live Sound Mixer , comes with the ipad?

    Open Reply - Ronald
    It does not.
    Open Reply - Kenneth
    This does not include the Ipad

  • submitted6 years ago

    asked byRock

    fromSimi Valley Ca.

    will this support I pad pro?

    Open Reply - Thomas
    If your iPad has Lighting capability it will.

  • submitted7 years ago

    asked bySean

    fromelyria , oh

    which ipad should I buy for this mixer ? Mackie 2044387-00 DL1608 16-Channel Live Sound Digital Mixer with iPad Control

    Open Reply - Ronald
    It will work wirelessly with any iPad but if you want to connect it physically to record you will need a lightning adapter for any unit that has a lightning connector interface.
