M-Audio AV40 Monitor and Mic Package

Description

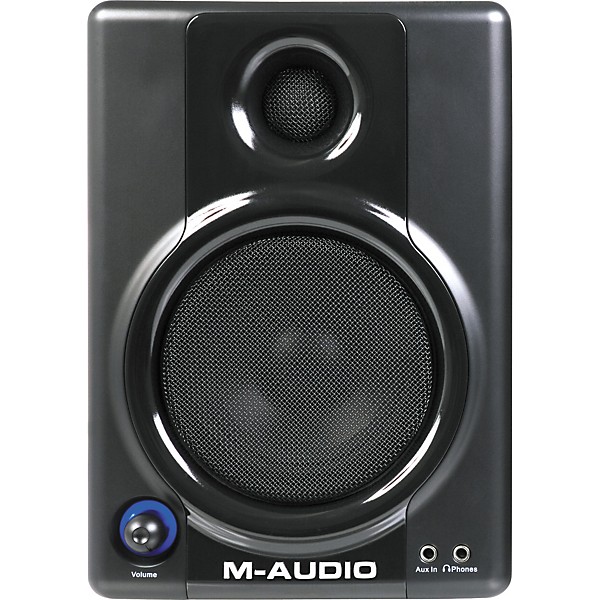

M-Audio Studiophile AV 40 Powered Reference Monitor Speakers
The compact Studiophile AV 40 powered reference monitors deliver the same proven M-Audio technology favored by top producers, recording engineers and musicians around the world. The combination of 4" polypropylene-coated drivers and 3/4" ferrofluid-cooled silk-dome tweeters provides punchy lows, crisp highs and a balanced, uncolored response. Custom cabinets with dense wood construction deliver more accurate bass response than you could ever get from plastic multimedia speakers. And for the highest possible fidelity, the Studiophile AV 40 monitors also feature OptImage III wave-guide technology and a 20-watt-per-channel internal amplifier that utilizes Class A/B architecture. The Studiophile AV 40 monitor speakers are the perfect solution for traveling musicians or anyone who wants topnotch sound from their desktop multimedia system.
Professional Components”Professional Results
The Studiophile AV 40 monitors are designed with the same quality materials and internal electronics that are used in all of M-Audio's acclaimed professional monitors. You'll find features like audiophile-grade Class A/B amplifier architecture and balanced 1/4 " TRS inputs in addition to RCAs. It all adds up to a big sound that belies the speakers' small size. With the Studiophile AV 40s, you don't have to give up professional-grade fidelity to enjoy the ease and mobility of a compact monitoring system.
Extended Low End
If you require extra bass response, the M-Audio Studiophile AV 40 monitors have you covered. MDF wooden cabinets, bass reflex design, and an integrated bass boost switch let the Studiophile AV 40s crank out plenty of low end”perfect for urban/dance music, DVDs, and more.
OptImage III Technology
M-Audio's proprietary OptImage III waveguide improves overall detail and clarity while minimizing sound issues that can plague other compact monitors. The system works by improving the overall efficiency of the tweeter as well as time-aligning the drivers. This ensures that the audio from each driver reaches the listener at the same time, guaranteeing precise stereo imaging and accurate response.
Magnetically Shielded for Desktop Use
Unchecked, all speakers emit electromagnetic waves that can wreak havoc with your computer's video monitor or a nearby TV. The M-Audio Studiophile AV 40 monitors are magnetically shielded so that all of your electronic equipment can coexist on your desktop without interference.
MXL 990 Condenser Microphone
The MXL 990 Condenser Microphone with Shockmount has a silky, sweet high end while retaining tight, solid low and midrange reproduction. The 3/4" gold-sputtered diaphragm creates a professional sound suited for digital and analog recording. Attractive vintage body style with champagne finish. 30Hz-20kHz frequency response. 130dB maximum SPL. Includes custom shockmount, mic stand adapter, and case. Requires phantom power.

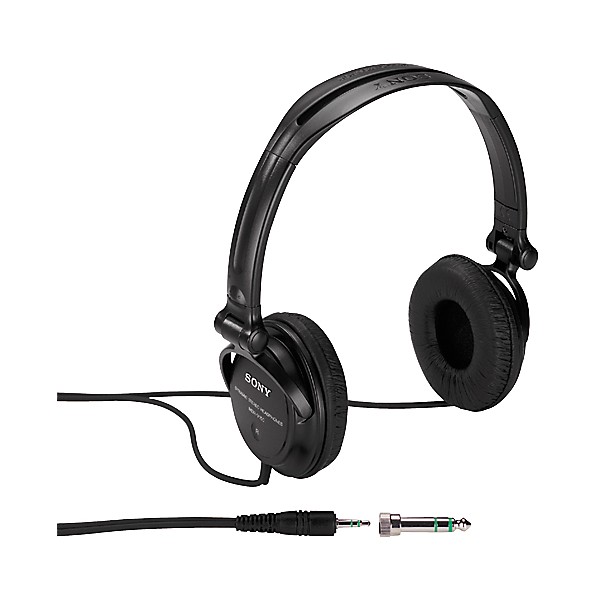

MDR-V150 Studio Monitor Series Headphones
Sony's MDR-V150 Studio Monitor Series Headphones feature Supra-Aural design for excellent listening comfort. 30mm drivers deliver deep bass via high-energy ferrite magnets. Reversible earcups for single-sided monitoring and a comfortable, wide, molded headband are ideal for DJs and studio use. Stereo UniMatch plug for 1/4" and 1/8" jacks.

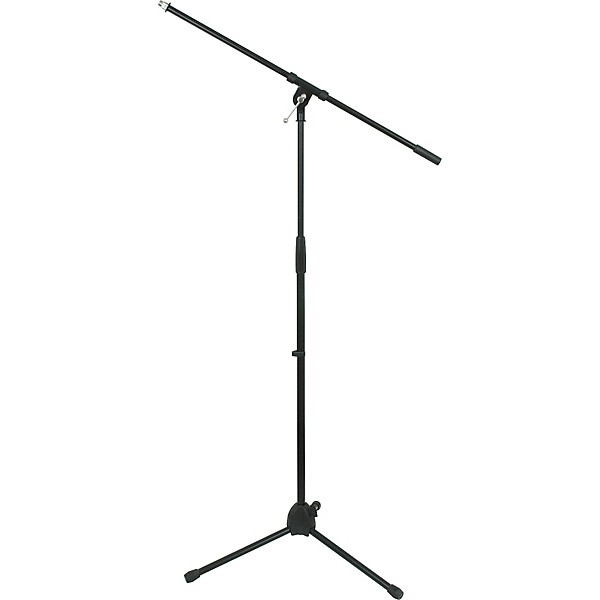

Tripod Mic Stand with Fixed Boom
The MS-220 Tripod Microphone Stand has a thread adapter and tubular legs. Adjustable height from floor to top thread is 35" to 61-7/8". 30-1/4" boom is not adjustable.

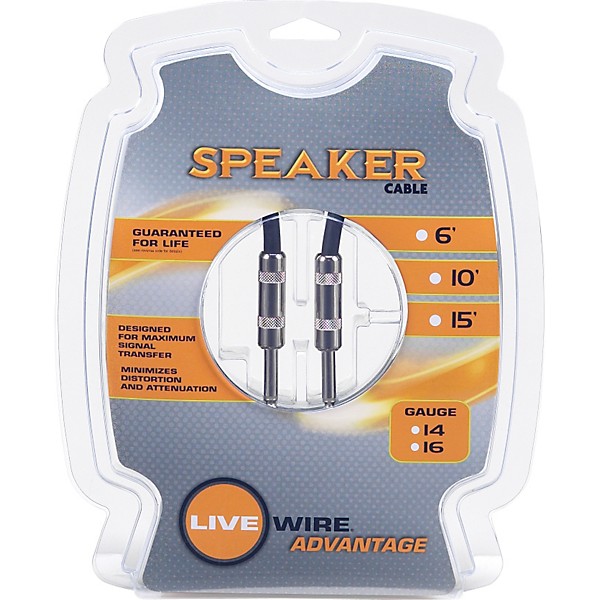

2 x 10' Live Wire 16-gauge 1/4"-to-1/4" cables
For serious-minded musicians, these Live Wire 16-gauge 1/4"-to-1/4" cables have the strength and durability to withstand more than everyday use. It has superior wiring that allows your signal to be quiet, eliminating frustrating hums, buzzing, and crackles. Its sturdy construction enhances signal and performance. The cable's flexible design eliminates kinks and twists for a tangle-free performance whether you're in the studio or on the stage.



Features
- 4" polypropylene-coated woofers
- 3/4" ferrofluid-cooled silk dome tweeters
- OptImage III tweeter wave guides for superior imaging
- 20-watt-per-channel amplifier with Class A/B architecture
- magnetic shielding
- 1/4" TRS balanced and RCA unbalanced inputs
- 1/8" headphone output
- 1/8" stereo auxiliary input
- front-panel volume control
- rear-panel on/off control
- bass boost control
- MDF cabinet with bass reflex port design
- 3/4" gold-sputtered diaphragm
- Attractive vintage body style with champagne finish
- 30Hz-20kHz frequency response
- 130dB maximum SPL
- Sensitivity: 15MV/pa
- Equivalent noise: 20dB (A-weighted)
- Closed supra-aural, dynamic design
- 30mm drivers
- Ferrite magnets
- Reversible earcups for single-sided monitoring
- Wide comfortable headband
- Stereo UniMatch plug
WARNING: This product can expose you to chemicals including Diisononyl phthalate (DINP), Styrene and Lead, which are known to the State of California to cause cancer, and Bisphenol A (BPA) and Lead, which are known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specs
- Type: two-way desktop reference monitor
- Low-frequency Driver: 4" diameter, magnetically shielded and curved cone with high-temperature voice coil
- High-frequency Driver: 3/4" diameter, magnetically shielded silk dome tweeter
- Frequency Response: 85Hz - 20kHz
- Crossover Frequency: 2.7kHz
- RMS SPL: 101.5dB at 1 meter
- Signal-to-Noise Ratio: > 90dB (typical, A-weighted)
- Input Connectors: left and right RCA line input, left and right 1/4" TRS input and 1/8" aux input
- Polarity: positive signal at "+" input produces outward low-frequency cone displacement
- Dynamic Power: 20 watts continuous, per channel into 4 ohms
- Input Impedance: 10 kOhms unbalanced, 20 kOhms balanced
- Input Sensitivity: 100 mV pink noise input produces 90dBA output SPL at 1 meter with volume control at maximum
- Protection: RF interference, output current limiting, over temperature, turn on/off transient, subsonic filter
- Indicator: Blue power LED ring around volume knob on front panel
- Power Requirements: 100-120V/50/60Hz, 220-240V/50/60Hz; powered via detachable 2-conductor line cord
- Cabinet: vinyl-laminated MDF
- Dimensions: 8.75" (H) x 6" (W) x 7.25" (D)
- Weight: 14 lbs./6.34 kg
- Type: Condenser pressure gradient mic with large 20mm gold diaphragm capsule Frequency Range: 30Hz”20kHz
- Polar Pattern: Cardioid
- Sensitivity: 15mV/Pa
- Impedance: 200W
- S/N Ratio: 80dB (Ref. 1Pa A-weighted)
- Equivalent Noise Level: 20dB(A weighted IEC 268-4)
- Max SPL for 0.5% THD: 130Db Max SPL with -10dB cut: 130dB
- Power Requirements: 48V Phantom Power (+- 4V)
- Current Consumption: <3.0mA
Size: 60mm x 130mm - Weight: 1.2 lbs
- Metal Finish: Champagne
- Impedance: 24 ohms
- Sensitivity: 98dB/mW
- Power Handling Capacity: 500mW
- Frequency Response: 18-22,000Hz
Reviews
5
6 Reviews
0%
of respondents would recommend this to a friend
Reviewed by 6 customers
Nice Package!
submitted15 years ago
byCarter
fromPerrysburg, Ohio
I bought this package awhile ago, and its worked great for me! No matter how loud i put the music at, the speakers don't blow, and they sound great (the bass booster is really nice too). Also, the cables and the boom stand have worked well for me. I was able to swap out the microphone to an ST51 from Sterling Audio, since I already had the MXL 990. Overall, it was a great package, and it was $229 well spent.
i Spent More?
submitted15 years ago
byBC
fromMemphis TN
I purchased two of these items separately at GC Bartlett (Memphis)(the av40's and a mxl two mic package 990-991 The Mic is way better than the dynamic I was using. Very sensitive! That IS what I wanted A decent Mic! The speakers are perfect for me. I like the front panel AUX IN jack I send to it from one of my headphone amps outputs. The left speaker has the Amp for both in it. It gets warm at idle so its not Green Technology. When properly positioned these speakers sound better than any I have heard. Clean and clear uncolored. They came with an assortment of (sub mini - mini, mini - mini - rca - mini and rca - rca) cables. Had these for a month I don't leave the speakers on and the mic has had slight use and it has a nice case. I plan on using these things for a long time. You get the shock mount with this deal.
Sounds good to me
submitted15 years ago
byTom
frommaple shade, nj
This a review of the monitors only. I bought them seperately in my local GC. Bear in mind that I'm not an expert, and that these monitors were an upgrade from PC speakers. That said, I think they sound great. Loud and clear with good bass. Buy these monitors, if you're looking for great sound and still want to keep some beer money in your pocket.
M-Audio AV 40
submitted15 years ago
bySergiy
fromFresno, CA
Pros: Bought these bad boys on Labor Day. The only problem i had so far was the included RCA to stereo jack cable. Looks like it was damaged so i replaced it with one of my own. As far as speakers themselves - blew me away... Studio quality for an excellent price. Best choice in quality/price category. I am not a professional musician but have a decent understanding how flac format should sound like. Even using stock MBP sound card they sound truly amazing. Customer Service is Superb as well. Way to go Guitar Center :-) Highly recommend these speakers for home (music, movies) or studio (professional) use... Cons: Uncle Sam did not pay for them
Perfect for Home Studio
submitted16 years ago
byWill
fromAurora, CO
This package finished off my new home studio perfectly. I run a PC based studio using an Mbox 2 mini with Pro Tools. This package is an exceptional value and I am completely satisfied with the quality of each piece for the price paid. I doubt that you'll be able to find better stuff at this price point. The monitors are attractive and sound great, and are nice small size for sitting on a desk. The fact that they are powered monitors means less clutter around the work area, too. Headphone jack on front of left monitor is handy for quickly tracking with 'cans' on. The MXL 990 mic has been great for recording acoustic guitar and vocals. (Mbox 2 mini has the required phantom power.) The headphones are nothing special, but are comfortable for wearing while tracking with a live mic in the room. This package had all the cables needed to get everything hooked up and get recording immediately. For setting up a home studio on a budget, I recommend this package 100%
Awesome Pkg
submitted16 years ago
byMandy
fromSan Benito,TX
At first Iw as kind of like "eh, do i really need all this?"...well I'm very glad I bought the package. Speakers are outta this world...the mic included make sure to get a mixer with phantom power...if you are using it for a small recording studio at home..this is what you want. I've never been blown away like the way i was with these products...Love it
