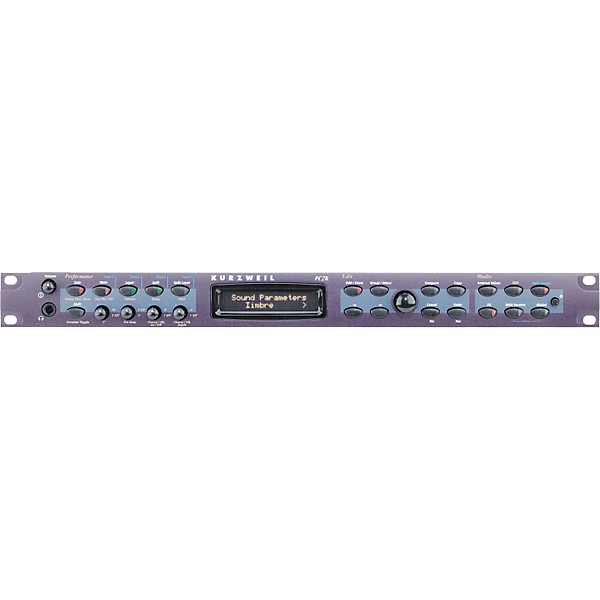

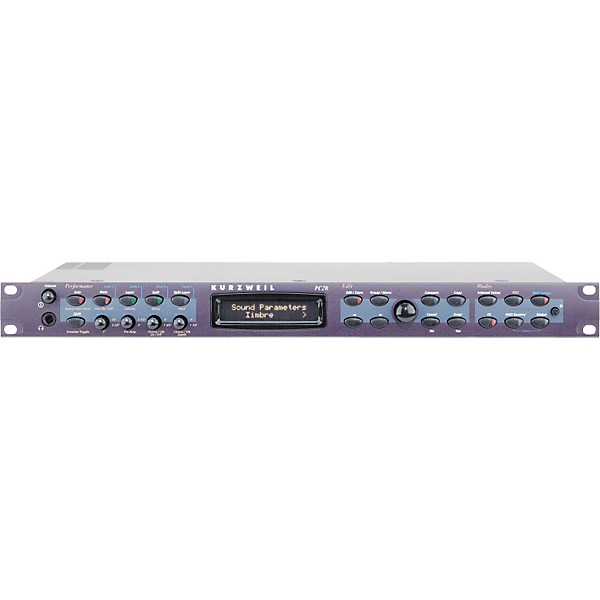

Kurzweil PC2R Synth Rack Module

Configuration: 1U rack module
Controllers: 4 multifunction knobs
Programmable zones: 4
Arpeggiator: multiple note order modes, latch modes, selectable play order, velocity, duration, tempo, and beat values; syncable to MIDI clock
Polyphony: 64 voice, user-expandable to 128
Effects (dual processors):
Processor A presets: 58 reverbs, 6 delays, 1o choruses,
6 flangers, 3 phasers, 4 shapers, 2 enhancers,
8 filtered effects, 4 distortions, 1 mono>stereo, 3 wide stereo,
4 compressors, 2 panners, 7 rotarys, stereo tremolo,
44 combination effects chains utilizing Kurzweil's unique Laserverb
Processor B effects: 30 reverbs including booths, rooms, chambers,
halls, and plates.
Effects routing: all 16 MIDI channels can send to A and to B in any amount. Also there is a global send from A to B for serial effects chaining.
Internal Voices: 272 internal programs, 256 regular programs
Display: 20-character, 2-line backlit LCD w/front panel contrast knob

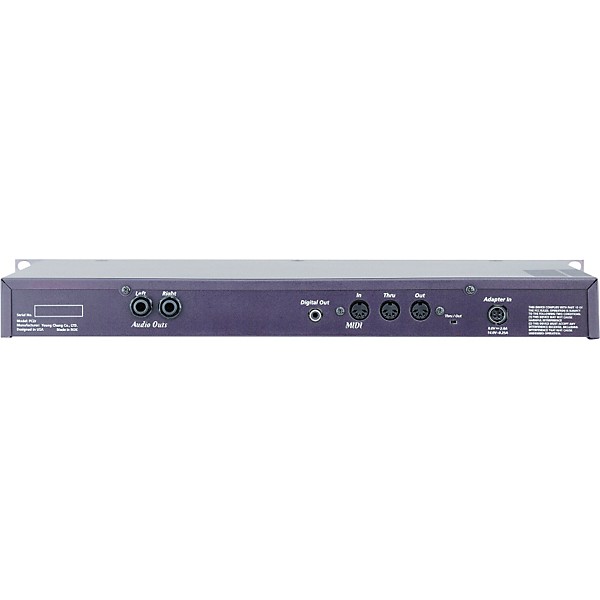

Audio outputs: 2-1/4" balanced TRS analog; RCA digital w/selectable format (AES/EBU, S/PDIF) and bit width (16-, 18-, 20-, and 24-bit) plus dithering
Headphones: front panel 1/4" stereo headphone jack
MIDI jacks: In, Out, Thru
Audio Performance: +/- 119dB S/N, .003% THD
MIDI jacks: In, Out, Thru
Dimensions: 19"W x 1-3/4"H x 11-1/8"D
Weight: 6-7/8 lbs.
