Description

The UPod Live Audio Interface is the newest audio interface by Icon Pro Audio made for livestreaming directly to your mobile device or computer. It also features 16 unique built-in DSP effects including echo, reverb, delay, EQ, and a voice changer for maximum control and creativity for your next livestream. The UPod Live is a plug and play USB interface, so you don't need to install any additional drivers to start your next session.

Take your next recording or livestream to the next level with an audio interface built exactly to impress your audience. Features 16 bit 48Khz 2-mic input / 1-guitar input, 2-output USB audio interface Icon’s unique 16– DSP effect, including echo, reverb, delay, EQ and voice change 2 large encoder knobs for selecting and adjusting DSP settings Large LCD displays all DSP settings and parameters Attenuator (Voice-Over) function button equipped to lower music volume automatically when mic signal is present Monitor signal (dry / wet) control button Digital & analog connections are equipped for direct smartphone connection Plug & play and no driver installation is needed.

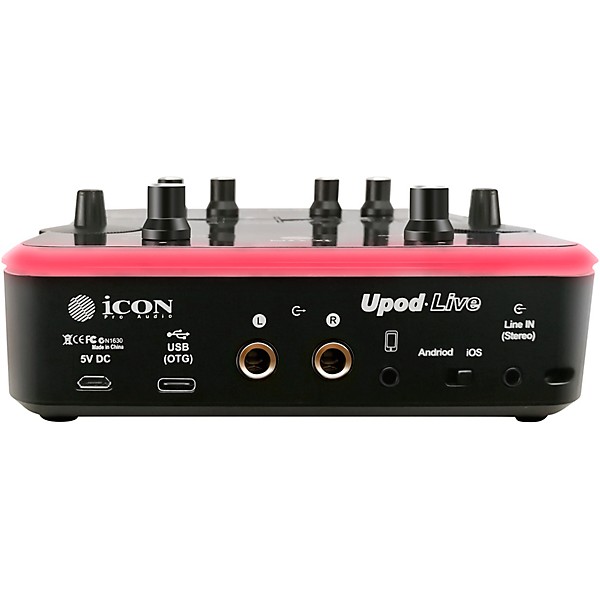

Icon UPod Live USB Audio Interface

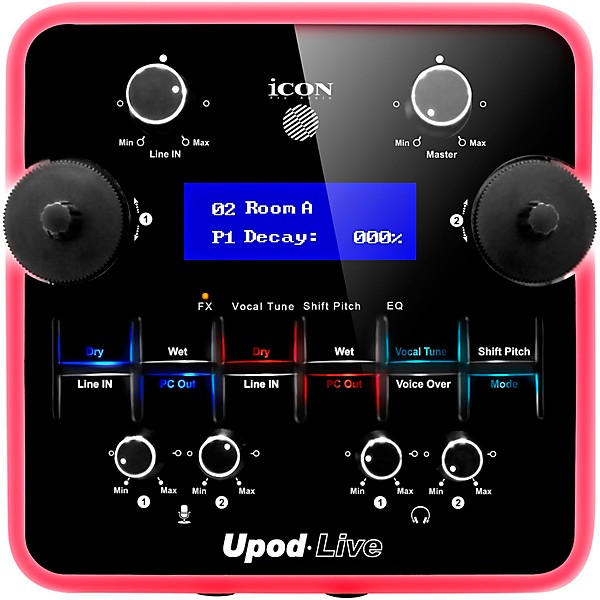

Icon UPod Live USB Audio Interface

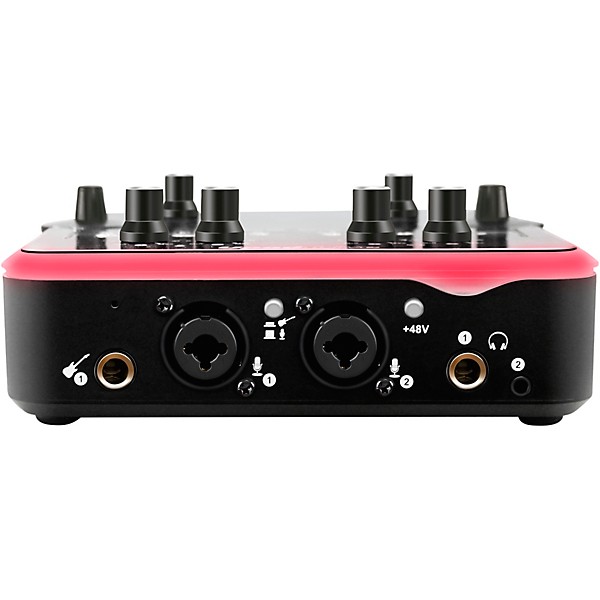

Icon UPod Live USB Audio Interface

Features

  • 16 bit 48Khz 2-mic input / 1-guitar input, 2-output USB audio interface
  • Icon’s unique 16 – DSP effect, including echo, reverb, delay, EQ and voice change
  • 2 large encoder knobs for selecting and adjusting DSP settings
  • Large LCD displays all DSP settings and parameters
  • Attenuator (Voice-Over) function button equipped to lower music volume automatically when mic signal is present
  • Monitor signal (dry / wet) control button
  • Digital & analog connections are equipped for direct smartphone connection
  • Plug & play and no driver installation is needed.

Specs

Mic Input Frequency Response
  • 22Hz to 20kHz (+/-0.2dB)
Dynamic Range
  • 90dB, A-weighted
Signal-to-Noise Ratio
  • - 90dB, A-weighted
THD+N
  • <0.0061% (-86dB)
Crosstalk
  • -85dB @ 1kHz
Input Impedance
  • Mic in 1.8K Ohms, typical
Adjustable Gain
  • +39dB
Instrument Input Frequency Response
  • 22Hz to 20kHz (+/-0.2dB)
Dynamic Range
  • 90dB, A-weighted
Signal-to-Noise Ratio
  • -90dB, A-weighted
THD+N
  • <0.0061% (-86dB)
Crosstalk
  • -75dB @ 1kHz
Input Impedance:Inst in
  • 500K Ohms, typical
Total Gain Rang
  • e
  • +38dB
Line Inputs (RCA IN, Unbalanced) Frequency Response
  • 22Hz to 20kHz (+/-0.2dB)
Dynamic Range
  • 90dB, A-weighted
Signal-to-Noise Ratio
  • -90dB, A-weighted
THD+N
  • <0.003% (-86dB)
Crosstalk
  • -90dB @ 1kHz
Input Impedance
  • 10K Ohms, typical
Adjustable Gain
  • +8dB
Line Outputs 1/2 (Stereo, Unbalanced)
    Frequency Response
    • 22Hz to 20kHz (+/-0.2dB)
    Dynamic Range
    • 90dB, A-weighted
    Signal-to-Noise Ratio
    • -90dB, A-weighted
    THD+N
    • <0.003% (-86 dB)
    Crosstalk
    • -90dB @ 1kHz
    Nominal Output Level Unbalanced
    • +2dBV, typical
    Headphone Outputs
    • (at Maximum Volume; Into 100 Ohm load)
    Frequency Response
    • 22Hz to 20kHz (+/-0.2dB)
    Power into Ohms
    • 20 mW into 100 Ohms
    THD+N
    • <0.06% (-66dB)
    Signal-to-Noise Ratio
    • -90dB, A-weighted
    Max Output Level into 100 Ohms
    • +2.0dBV, typical
    Load Impedance
    • 32 to 600 Ohms
    Weight
    • 0.518 KG（1.14lb）
    Dimensions
    • 150mm(L)x151mm(W)x56mm(H)
    Dimensions
    • 5.9"(L)x5.94"(W)x2.2"(H)
