Description

The HHB Burnit Plus enables you to easily record from CD, DAT, MD, or hard disk using the SCMS-free digital input. Built-in converter accepts sampling rates from 32-48kHz. 3 synchro modes: 1 Track, All Tracks, and All Tracks with Finalize. Digital record gain control can adjust the signal input level of a digital source, enabling gain adjustment for individual tracks. The CDR830PLUS Recorder provides level control for each digital input (coaxial and optical). LCD meters for level monitoring. 5 CD-RW erase modes.
HHB CDR830PLUS Burnit Plus Pro CD Recorder
HHB CDR830PLUS Burnit Plus Pro CD Recorder
HHB CDR830PLUS Burnit Plus Pro CD Recorder

Features

  • High-precision 24-bit A-D converters and 24-bit multilevel Delta Sigma D/A converters ensure exceptional sound quality
  • Advanced laser assembly delivers consistently accurate recordings, compatible with a wide range of CD players
  • CD Text display input and editing enables disc, artist, and track names to be stored
  • Records on both standard and consumer audio CDR and CDRW discs
  • SCMS-free digital input
  • Straightforward digital and analog synchro recording with 1 Track, All Tracks, and All Tracks with Finalize synchro modes
  • Digital input gain control enables balancing of recordings made from different digital sources, e.g. CD, DAT, MD, etc.
  • Digital left-right balance control
  • Double speed CD finalization

Specs

  • Format: Compact Disc Recordable
  • Compatible discs: CD (playback), CDR and CDRW
  • Channels: 2 (stereo)
  • Power supply: AC 120V, 60Hz
  • Power consumption: 14W
  • Operating temperature: +5 degrees C to +35 degrees C (+41 degrees F to +95 degrees F)
  • Weight: 8 lbs.
  • Maximum dimensions: 19"W x 4-1/10"H x 11-3/5"D (3-1/2"H without feet)

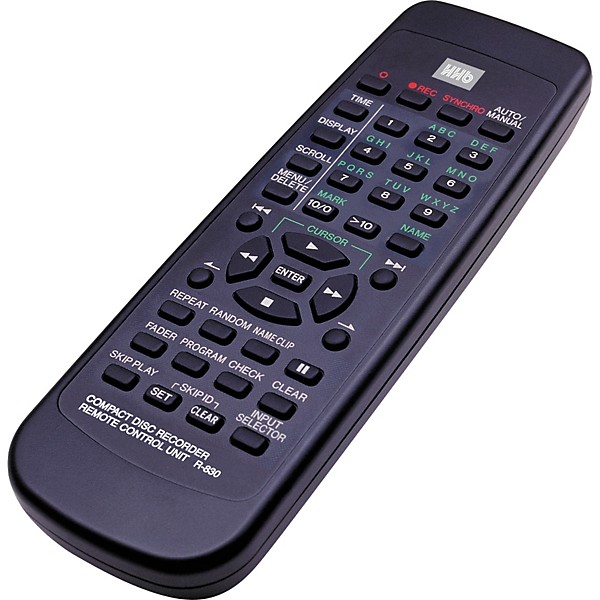

  • Remote control: Parallel connector (mini-DIN) or Infrared
  • Frequency response: 10Hz to 20kHz ±0.5dB
  • RCA phono output level (0dBFS, >10k¡ load): 9dBu
  • Wow & flutter: Unmeasurable
  • Playback
  • Signal to noise ratio: >111dB
  • Dynamic range: >98dB
  • Total harmonic distortion @ 1kHz: <0.002%
    Channel separation: >98dB
  • Recording (analog input)
  • Signal to noise ratio: >92dB
  • Dynamic range: >92dB
  • Total harmonic distortion @ 1kHz: <0.003%
  • Recording (digital S/PDIF input)
  • Signal to noise ratio: >108dB
  • Dynamic range: >97dB
  • Total harmonic distortion @ 1kHz: <0.002%
    All audio measurements are to EIAJ standards.

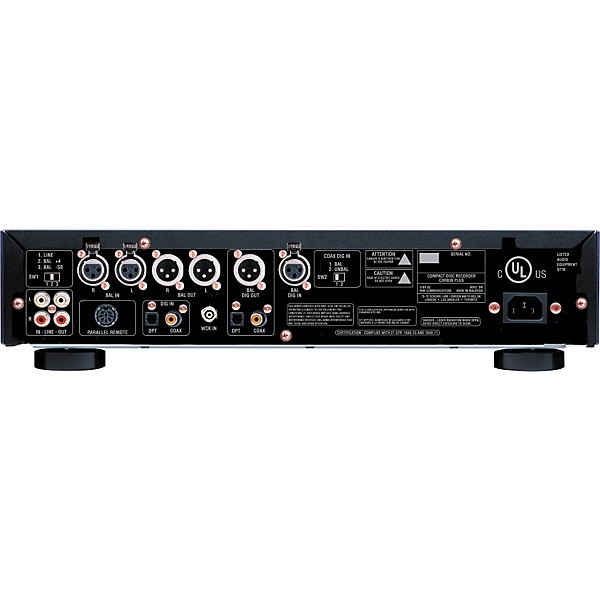

  • Analog connectors:
  • Unbalanced line input: RCA phono (input impedance 10kÎ)
  • Unbalanced line output: RCA phono
  • Balanced line input: XLR (F)
  • Balanced line output: XLR (M)
  • Headphone output: 1/4" stereo jack
  • Digital connectors:
  • Optical digital input (S/PDIF): TOSlink, optical wavelength 660nm ±30nm
  • Optical digital output (S/PDIF): TOSlink, optical wavelength 660nm ±30nm
  • Coaxial digital input (S/PDIF): RCA phono, 75Î, IEC958 type II
  • Coaxial digital output (S/PDIF): RCA phono, 75Î, IEC958 type II
  • Balanced digital input: XLR 110Î
  • Balanced digital output: XLR 110Î
  • Word clock input (operating range 32kHz to 48kHz): BNC
