Galaxy Audio

collapse expand iconDescription

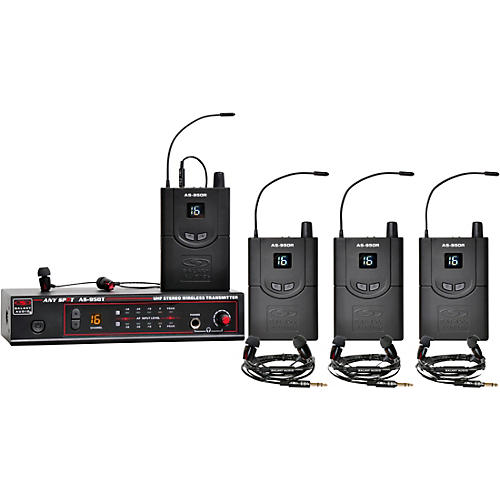

Galaxy Audio's AS-950-4 band pack system offers reliable quality with exceptional value. Its four receivers each feature a 50mW (x2) output with RF and stereo indicator. The transmitter features L/R level display, channel LCD display with up and down select, stereo XLR and 1/4" inputs and a headphone output with volume control.

The AS-950 offers 16 selectable UHF frequencies in stereo or mono, and you can add an unlimited number of receivers at any time. It also includes a pair of EB4 earbuds, featuring titanium drivers, extended bass response and aluminum-alloy construction—now standard with all WPM models. This package includes the AS-950T transmitter, antenna, power supply, single/dual rack kit, four receivers and four earbuds.
Galaxy Audio AS-950-4 Band Pack Wireless In-Ear Monitor System Band N
Galaxy Audio AS-950-4 Band Pack Wireless In-Ear Monitor System Band N

collapse expand iconFeatures

  • AS-950 System
  • 16 selectable UHF frequencies
  • Stereo or mono transmission
  • Multiple receivers can be used with one transmitter
  • Single/dual rackmount kit included
  • 200' range
  • EB4 earbuds included
  • An unlimited number of receivers may be added at any time
  • AS-950T Transmitter
  • 16 selectable UHF frequencies
  • AF L/R indicator
  • Transmits in stereo or mono
  • Channel LCD display
  • Up/down channel select
  • 2 XLR/1/4" combo inputs
  • RF output 10mW
  • Detachable 1/2-wave BNC antenna included
  • AS-950R Receiver (x4)
  • Built-in limiter
  • 50mW (x2) earphone out with volume control
  • Channel LCD display
  • Up/down channel select
  • Operates on 2 AA batteries (alkaline or rechargeable)
  • EB4 Earbuds (x4)
  • Titanium drivers
  • Extended bass response
  • Aluminum-alloy construction

collapse expand iconSpecs

  • Analog or digital: Digital
  • Frequency response: 50Hz–15kHz
  • Dynamic range: >90dB (A-weighted)
  • Line of sight: 200'
  • # of Receivers: 4
  • Battery type: AA (x2)
  • Battery runtime: About 12 hours
  • Width: 2.51"
  • Height: 3.54"
  • Depth: 0.9"
  • Weight: 3.35 oz. (without batteries)
  • Channels: 16
  • Rackmountable: Yes, EIA standard 1/2 U
  • Band: UHF
  • Frequency range: CODE N 518MHz–542MHz, CODE P2 470MHz–489MHz
  • Output Level: 10mW
  • Power Requirements: 12–18VDC at 300mA (supplied by external power supply)
  • Width: 8.34"
  • Height: 1.73"
  • Depth: 3.77"
  • Weight: 19.75 oz.

collapse expand iconWarranty

One year parts and labor warranty on all products, including power supply.
