Description
The Elation Design Spot 250 Pro Light incorporates improvements requested by lighting designers and touring production companies”including a nice, clean white housing.

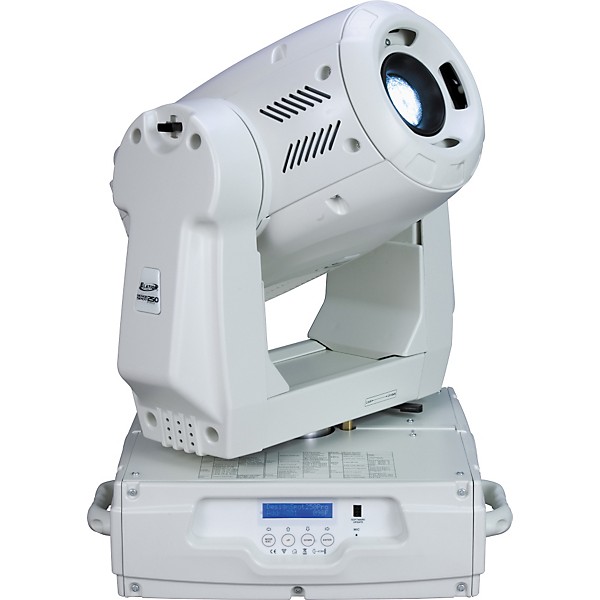

The Design Spot 250 is an intelligent moving head hybrid spot and wash light in a single unit. With a glass reflector for improved output and an improved lens coating for increased output and image quality, the Spot 250 also has an improved LCD Display menu control.

The lighting unit is equipped with 8 replaceable dichroic filters (8 colors, including CTO, CTB, UV + white), 2 gobo wheels, 14 gobos total (7 fixed and 7 rotating/indexing). Additional features include a variable iris, 3-facet rotating prism, frost, and mechanical dimmer/shutter. The Design Spot 250 Pro uses a Philips MSD 250/2 lamp providing up to 3,000 hours estimated lamp life. Control data input is via 3-pin or 5-pin DMX data first in and out cables.

The Design Spot 250 comes fitted standard with a 17 lens kit. Optional 14 and 20 lens kits are also included. This unit is rated IP 20 and is designed for indoor use only. Rigging for this unit includes 2 x 1/4-turn omega clamps and it has a pan/tilt locking system for easy transport and a 3-pin DMX data cable and safety.

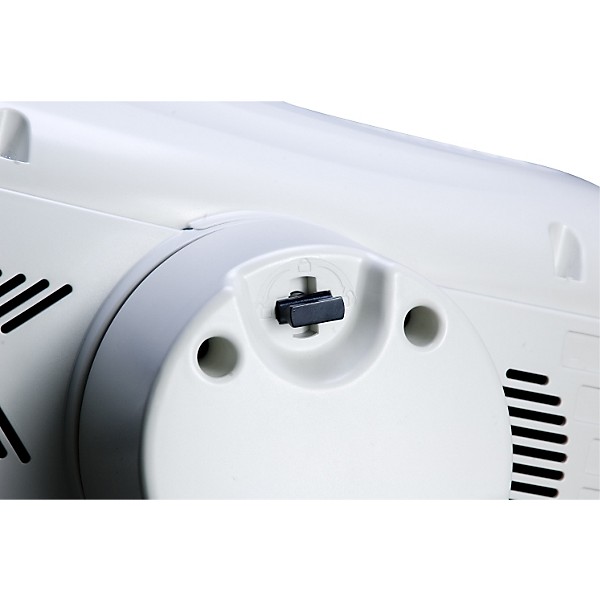

Elation Design Spot 250 Pro (White)
Elation Design Spot 250 Pro (White)
Elation Design Spot 250 Pro (White)
Features
Control features
Built in DMX recorder w/ 10 shows
Record from DMX or onboard menu control of each function
RDMX - Remote DMX Addressing
USITT DMX-512 (16-bit resoultion)
16 DMX Channels
4 Digit LCD Display
On-board menu settings

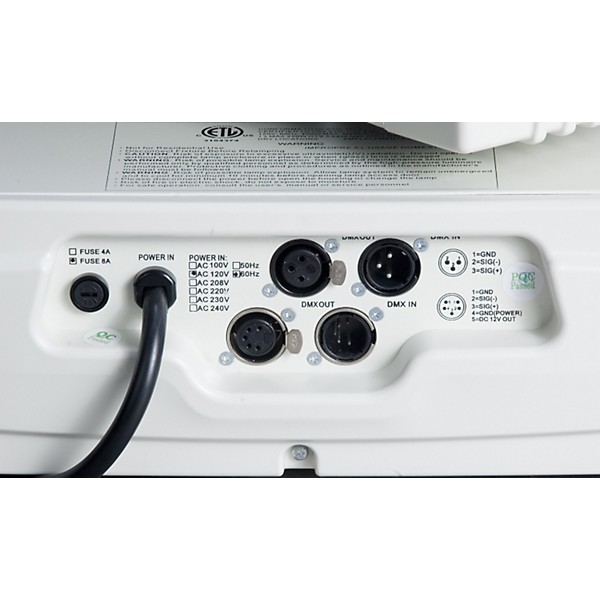

3-pin & 5-pin XLR serial input/output
Sound active mode

Optical system
New glass reflector for improved output
Improved lens coating for increased output and image quality
High output luminous-parabolic dichroic reflector
Beam angle: 14
Replaceable Beam 20 angle (included)
All lenses are anti-reflection coated

Colors
8 Replaceable Dichroic Filters, 7 color, UV + White
Continuous, variable speed, color scrolling in both directions (rainbow effect)
More color combinations possible by overlaying the multi-color dichroic gobo and the colors on the color wheel

Gobos
2 gobo wheels, 14 total gobos, 11 metal, 3 glass
7 interchangeable, indexable, rotating gobos plus open
7 interchangeable, static gobos plus open
Metal Gobo Size: 26.9mm outside diameter, 23mm image diameter
Glass Gobo Size: 26.7mm outside diameter, 23mm image diameter
Gobo Overlay (Gobo Morphing)

Shutter/dimmer
Variable speed strobe effect (1-18) flashes per second
Pre-set variable/random strobe and dimming pulse effect
Dual Flag mechanical dimming system

Iris
Beam narrow to wide (5% - 100%)
Variable speed iris macros
Small to large and large to small

Frost
Variable Frost Control
Hard edge to soft edge

Prism
3-facet rotating/Indexing Prism
Both directions at variable speeds
Macro-function for rotating gobos/rotating prisim combinations

Focus
Motor driven focus from near to far

Lamp
Phillips MSD 250/2 (250W, 8500K, 3000 Hrs)

Pan/Tilt
Pan & Tilt locking system for transport
Automatic Pan / Tilit position correction
Maximum PAN-movement 630 in 2.0 secs (default) or 540 (user selectable) / 16 bit
Maximum TILT-movement 265 in 1.5 secs / 16 bit
Vector Mode with blackout
Specs
Dimensions & Weight
16.75"L x 16.75"W x 19.75"H
56.5lb.

Power Supply
Fuse: 8A (120V) or 4A (220V)
Magnetic Ballast
Voltage: AC 98V, 120V, 220V, 208V, 230V, 240V 50/60Hz
Power Consumption: 400W
