The compact DynAudio Core 5 professional reference monitor provides powerful, precise sound in even the smallest studios. It's a two-way nearfield design with twin Class-D Pascal amplifiers that deliver 280W to the mid/woofer and tweeter, giving you plenty of volume without distortion. The 5" mid/woofer and 1.1" soft dome tweeter are made from proprietary materials that provide unparalleled accuracy so you'll hear every nuance of your mix.

Hear Every Detail

The Core 5's components are designed for pinpoint precision. The mid/woofer uses a proprietary magnesium silicate polymer cone that provides an ideal balance of lightness and stiffness, allowing it to reproduce midrange frequencies with stunning accuracy. The 1.1" soft dome tweeter uses a patented Hexis inner dome to eliminate unwanted resonances, extending high frequency response up to 30kHz so you can hear the natural shimmer of cymbals and subtle textures of stringed instruments.

Tailor the Sound to Your Space

The Core 5's advanced DSP provides multiple filters to optimize its performance for any monitoring environment. Choose between "Desk," "Anechoic," and "Soffit" modes to compensate for reflections from your mixing desk, an open space or wall mounting. Then fine tune using "Free," "Wall," or "Corner" settings. There's also an 80Hz high-pass filter for using the Core 5 with a subwoofer.

Find the Right Level

Whether you use analog or digital connections, precision gain-staging is essential for accurate monitoring. The Core 5 provides switchable analog input sensitivity between 0dBu and +24dBu. For digital sources, choose a maximum output of either 96dB or 79dB SPL to optimize bit depth. There's also a switch to select which AES3 channel feeds the left monitor. With these controls, you'll have clear, balanced sound at any volume level.

Compact Yet Powerful

The Core 5 professional reference monitor puts high-resolution sound within reach of any studio. Its compact size makes it easy to place even in tight spaces, but with 280W powering each component, it delivers impressive volume and an expansive soundstage. For producers and engineers who demand precision, the Core 5 is the ideal compact monitor.

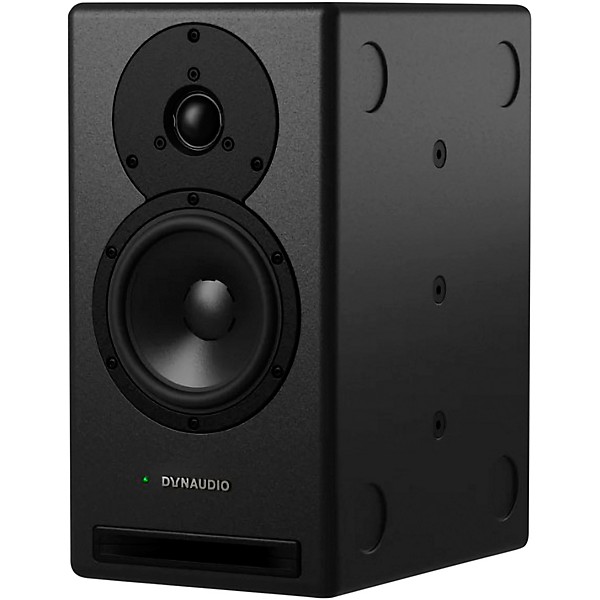

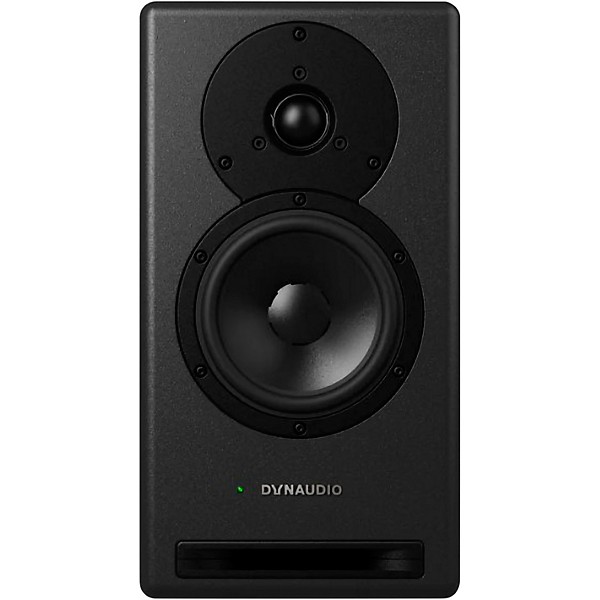

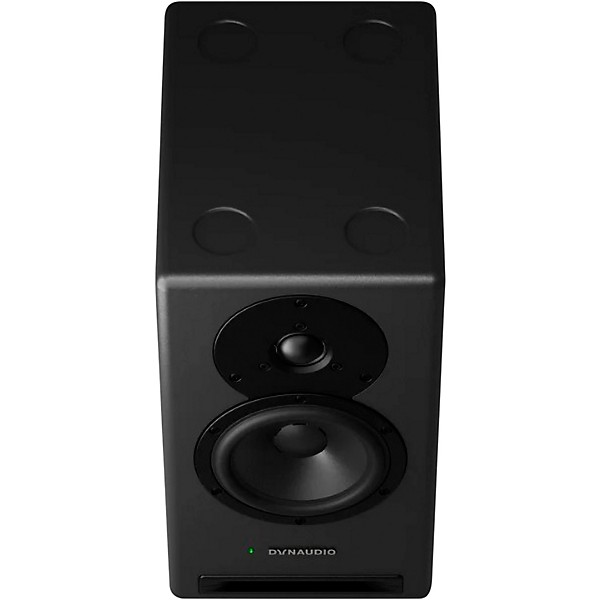

Dynaudio Core 5 Powered 5-inch 2-Way Studio Monitor (Each) - Dark Gray
Dynaudio Core 5 Powered 5-inch 2-Way Studio Monitor (Each) - Dark Gray
Dynaudio Core 5 Powered 5-inch 2-Way Studio Monitor (Each) - Dark Gray

collapse expand iconFeatures

  • 280W class-D Pascal amps: mid/woofer and tweeter
  • 1.1" Cerotar Pro tweeter: plays to 30kHz, remains relaxed
  • 5" woofer: proprietary MSP material, accurate to 45Hz
  • DSP filters: compensate position, choose desk/anechoic/soffit modes

collapse expand iconSpecs

  • Series: Core
  • Type: Nearfield Monitor

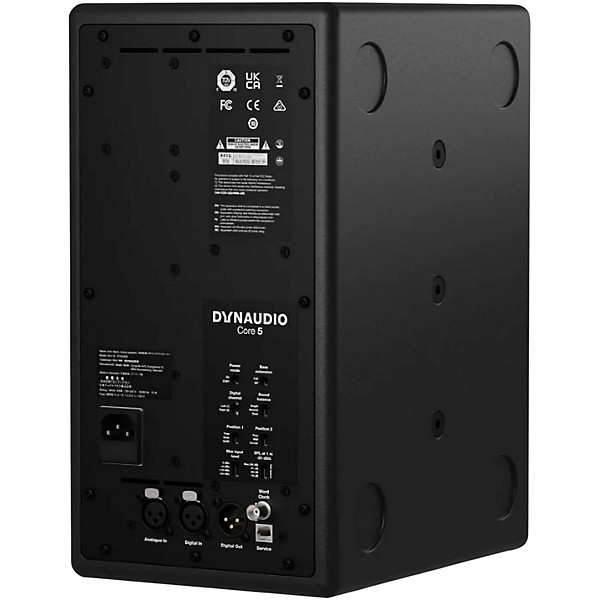

  • Inputs/Outputs
    • Analog Inputs: XLR
    • Digital Inputs: AES3 XLR, BNC word clock, 1x BNC word clock
    • Digital Outputs: AES3 XLR
    Maximum SPL
    • Anechoic dB @ 1m: 104
    • Half Space dB @ 1m: 110
    Amplifier Power
    • Woofer: 280W
    • Tweeter: 280W
    Power
    • AC Power Input: 100–240V 50/60Hz
    • Max Stand-by Power Consumption: 0.48W
    Frequency Response
    • Lower Cutoff (Hz @ 85dB +/- 3dB): 46
    • Upper Cutoff (kHz @ 85dB +/- 3dB): 26
    • Lower Cutoff (dynamic) (Hz @ -6dB): 42
    • Upper Cutoff (dynamic) (kHz @ -6dB): 29
    • Box Principle: Front-loaded bass reflex
    • Crossover: 2-way DSP-based
    • Crossover Frequency: 3800Hz
    Drivers
    • Tweeter: 1.1” Cerotar Pro soft dome with Hexis
    • Woofer: 5” MSP
    Physical Specs
    • Weight: 19 lb.
    • Width: 7 1/2”
    • Height: 14”
    • Depth: 10 3/8”
    • Speakers per Packaged Box: 1
    • Finishes: Dark Grey
