collapse expand iconDescription

The highly anticipated and long-awaited CIOKS DC7 is the thinnest, most flexible and most unique power supply for powering effect pedals from the Danish power supply specialists CIOKS. The groundbreaking DC7 has a one-inch (25.4 mm) profile and weighs 1.1 pound (500 grams) thanks to the pure 2-stage switch-mode technology inside.

The profile may be low but the power ratings are certainly not – the DC7 puts out a maximum of 48W from its 9 outlets and allows the user to connect multiple high-current effects such as devices from Effectrode and Eventide without noise of any kind.

CIOKS DC7 features 7 isolated DC-outlets for effect pedals each with four selectable voltages. Each of the outlets can put out 6W which corresponds to 660mA of current at 9V. Additionally the DC7 has also a 5V USB outlet and an auxiliary 24V outlet.

The DC7 is expandable with CIOKS 4* and CIOKS 8* as well as with other compatible power supplies powered with 24V DC for even more isolated outlets and even more flexibility. Combined with the large set of CIOKS Flex cables included this is a flexible, noise-free solution for powering pedalboards with a multitude of different pedals.

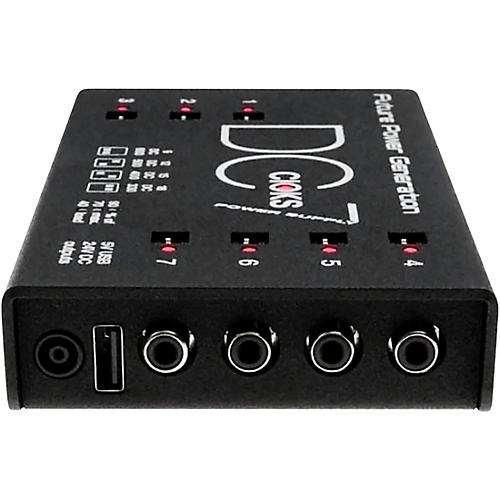

CIOKS DC-7 Power Supply
CIOKS DC-7 Power Supply

collapse expand iconFeatures

  • Groundbreaking 1" profile (25.4 mm)
  • 2-stage switch-mode power supply topology
  • Ultra-low noise achieved by multistage filtering
  • 7 isolated DC-outlets, 6W each
  • 660mA at 9V DC on each outlet
  • 4 selectable voltages on each outlet
  • 5V USB outlet with max. 1A
  • 24V DC auxiliary outlet with max. 2A
  • Individual power limit LED on all outputs
  • Built-in true power meter showing the total load
  • Global overload status LED
  • Universal mains input voltage 90 to 265V AC
  • Total maximum output power 48W
  • Mounting hardware for Pedaltrain and Templeaudio boards included
  • Compatible with CIOKS GRIP for drill-free mounting on Pedaltrain boards
  • 12 Flex cables included
  • Expandable with CIOKS 4*, CIOKS 8* or other compatible units with 24V input voltage for additional isolated outputs
  • Weighs 1.1 lb. (500 grams)
  • Designed in Denmark, assembled in Poland
  • 5-year worldwide warranty

collapse expand iconSpecs

  • Product dimensions (without rubber feet) 160 x 88 x 25.4 mm (6.3" x 3.46" x 1")
  • Product weight 500 grams (1.1 lbs)
  • Product dimensions w. giftbox & included accessories 235 x 188 x 58 mm (9.3" x 7.4" x 2.3")
  • Product weight with giftbox & included accessories 1 unit – 1kg / 2.2 lb.
