CHAUVET Professional

Description

COLORado Batten Quad-9 IP is a fantastic addition to the COLORado series of batten wash lights, differentiated by its bright, 10-watt quad-colored LEDs and IP rating. Versatile by design, this light can go from a wall washer to direct-view effect fixture for pixel mapping-all with superior color and 16-bit dimming.

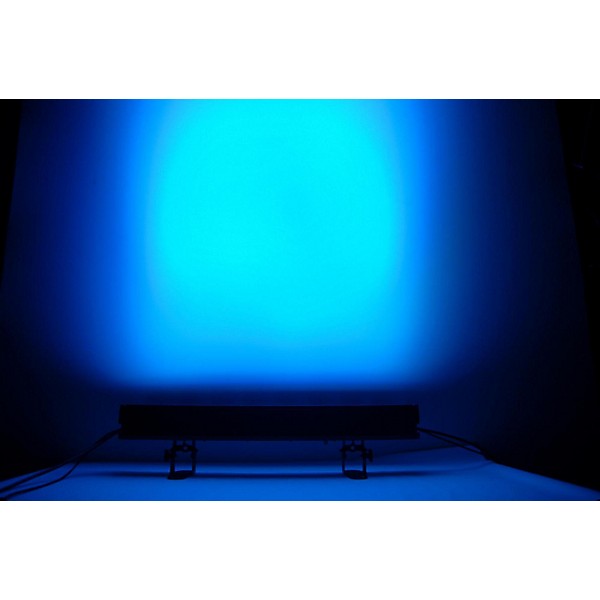

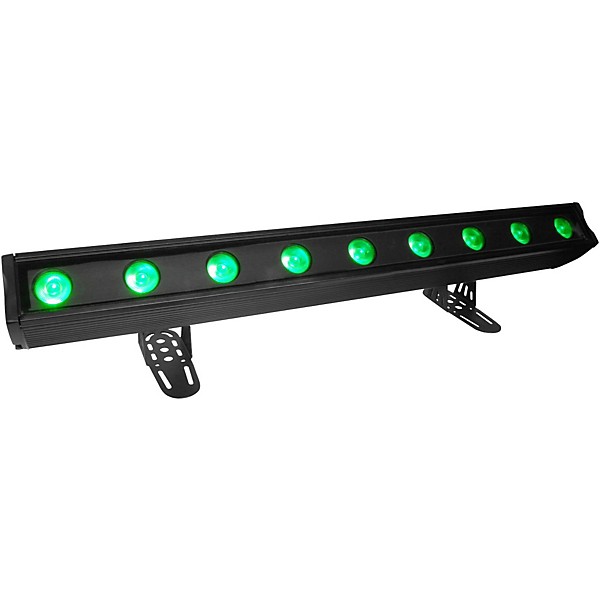

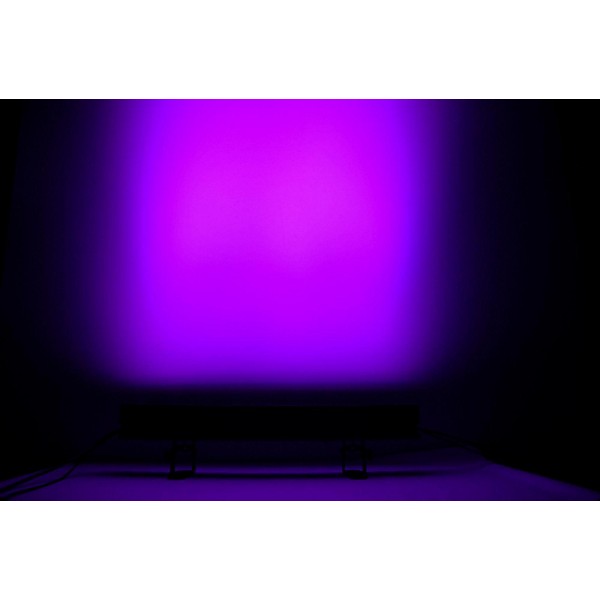

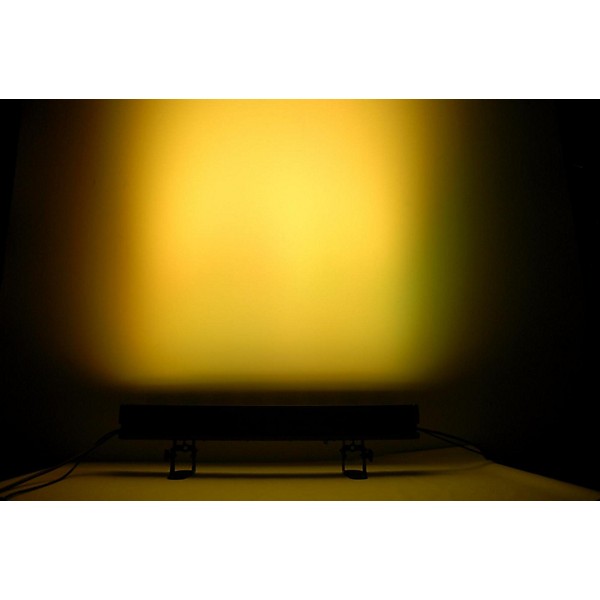

CHAUVET Professional COLORado Batten Quad-9 IP
CHAUVET Professional COLORado Batten Quad-9 IP
CHAUVET Professional COLORado Batten Quad-9 IP

Features

DMX Channels: 3, 4, 5, 6, 9, 11, 16, 27 or 36
16-bit dimming of individual colors as well as master dimmer
RGBW quad-color LEDs
Electronic dimming
RGBW color mixing without control
Recall custom programs over DMX
Five distinct DIM curves
LED display with password protection
5-pin XLR DMX to IP connector
IP66
Glare shield included

Specs

DMX Channels: 3, 4, 5, 6, 9, 11, 16, 27 or 36
Data Connectors: 5-pin XLR
Light Source: 9 LEDs (quad-color RGBW) 10 W, (800 mA), 50,000 hours life expectancy
Strobe Rate: 0 to 20 Hz
Beam Angle (horizontal): 17
Beam Angle (vertical): 15
Field Angle (horizontal): 31
Field Angle (vertical): 30
Illuminance: 1,026 lux @ 5 m
Color Temperature (range): 2,800 to 10,000 K
IP Rating: IP66, outdoor/wet, with pressure equalizing M12 Gore valve
Cable Length: 5 ft (1.5 m)
Power Connection: Edison plug to proprietary IP66 input power cord (65 in/1,651 mm)
Power Input: Proprietary IP66
Power Output: Proprietary IP66
Power Linking: 9 units @ 120 V; 14 units @ 208 V; 15 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 181 W, 1.51 A @ 120 V, 60 Hz
Power and Current: 200 W, 0.96 A @ 208 V, 60 Hz
Power and Current: 206 W, 0.90 A @ 230 V, 50 Hz
Weight: 25.2 lb (11.4 kg)
Dimensions: 39.4 x 7.9 x 9.9 in (1000 x 200 x 250 mm)
Approvals: CE, MET
