CHAUVET Professional

Description

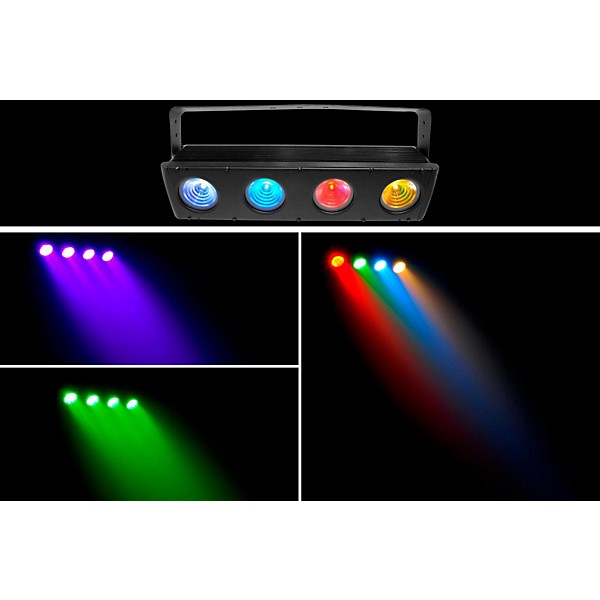

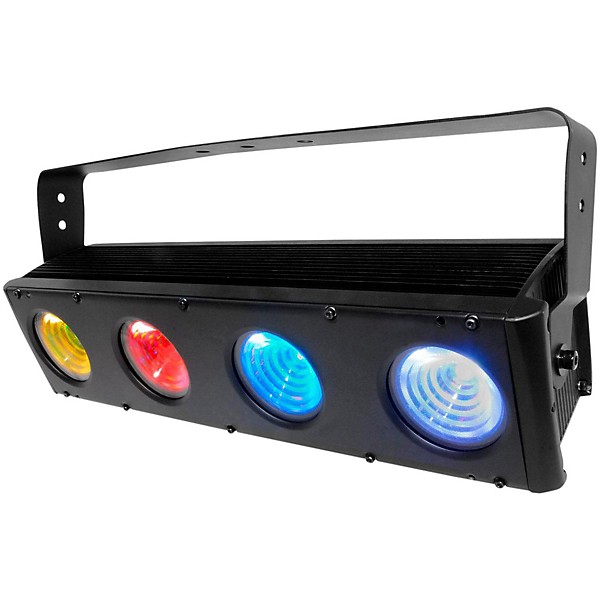

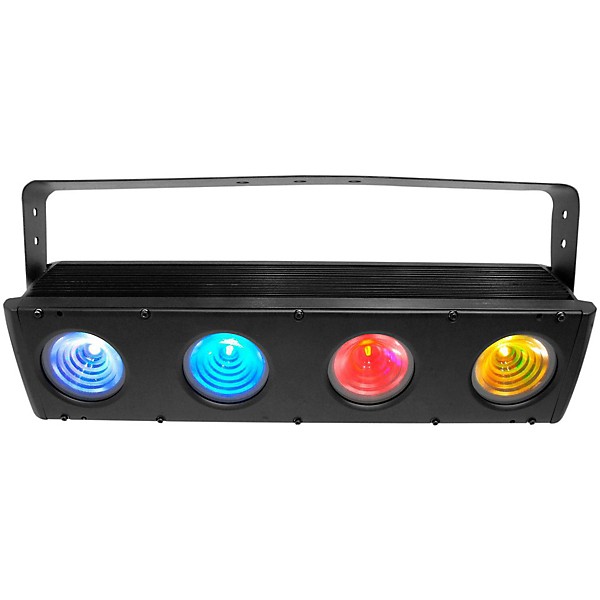

COLORado 4 IP takes quad-colored LED technology to a new level. This outdoor-rated, linear wash light features four powerful 40W quad-colored (RGBW) LEDs. The incorporation of white LEDs widens the color palette while 15-degree lenses produce a powerful punch of homogenized color. Individual pixel programming enhances the visual impact of this versatile and resilient fixture. A removable yoke doubles as a mounting bracket for stacking an array of up to four units that maintain a perfect pixel pitch.
CHAUVET Professional COLORado 4 IP
CHAUVET Professional COLORado 4 IP
CHAUVET Professional COLORado 4 IP

Features

Individual control over each pixel
IP66 rated for outdoor water and dust protection
Silent flicker-free operation
Fantastic output with low-profile footprint
Simple and complex DMX channel profiles for programming versatility

Specs

DMX Channels: 3, 4, 5, 6, 11, 12 or 16
Data Connectors: 5-pin XLR
Light Source: 4 LEDs (quad-color RGBW) 40 W, (1,000 mA), 50,000 hours life expectancy
Shutter/Strobe: Electronic
Strobe Rate: 0 to 20Hz
Stand Alone Color Mixing: Yes
Color Temperature Presets: Yes
Installed Optics: 15
Beam Angle: 12
Field Angle: 26
Dimming Modes: 8
Illuminance: 3,600 lux @ 5 m
Color Temperature (range): 2,800 to 10,000 K
IP Rating: IP66 outdoor/wet, with pressure equalizing M12 Gore valve
Cable Length: 5 ft (1.5 m)
Cable Length (signal extension): 16.4 ft (5 m)
¢ Cable Length (power extension): 16.4 ft (5 m)
¢ Power Connection: Edison plug to proprietary IP66 input power cord (65 in/1,651 mm)
¢ Power Input: Proprietary IP66
Power Output: Proprietary IP66
Power Linking: 5 units @ 120 V; 9 units @ 208 V; 10 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 222 W, 1.89 A @ 120 V, 60 Hz
Power and Current: 216 W, 1.04 A @ 208 V, 60 Hz
Power and Current: 216 W, 0.94 A @ 230 V, 50 Hz
Weight: 22.4 lb (10.16 kg)
Dimensions: 22 x 5.4 x 8.7 in (560 x 138 x 221 mm)
Approvals: CE, MET
