CHAUVET DJ

Description

Dynamic lighting doesn’t have to come from large fixtures—the CHAUVET DJ FX Par 6 combines vibrant RGBW wash output and dynamic ring effects in one compact, stage-ready unit. With 18 quad-color RGBW LEDs producing up to 3,239 lumens and 5,657 lux at 6.5', plus 51 RGB LEDs in the outer ring, it delivers layered visuals that go far beyond a standard par can. Independent control of the center wash and outer ring—combined with six zones of control—enables dynamic chases, bold color sweeps and animated accent effects that add depth and motion to any lighting design.

Flexible Control and On-Camera Performance

Designed for versatility, the FX Par 6 offers 3-, 6- and 11-channel DMX modes via 3-pin XLR, making it suitable for simple setups or more detailed programming. Built-in automated and sound-activated programs generate energetic looks without a controller, while the optional IRC-6 remote provides convenient access to static colors and preprogrammed effects. Plus, a strobe rate of 0–20Hz and true flicker-free operation ensure the fixture performs just as well on camera as it does on stage.

Compact, Linkable and Easy to Deploy

Compact and weighing just 3 lb., the FX Par 6 is easy to transport and mount in tight spaces. The 20-degree beam angle and 36-degree field angle provide focused yet even coverage, while power linking supports up to eight units at 120V or 12 units at 230V to reduce cable clutter. With auto-ranging 100–240V operation, a 13 mm bracket mounting hole and compatibility with the CHS-40 VIP Gear Bag, the CHAUVET DJ FX Par 6 is built for quick setup, reliable performance and streamlined event lighting.

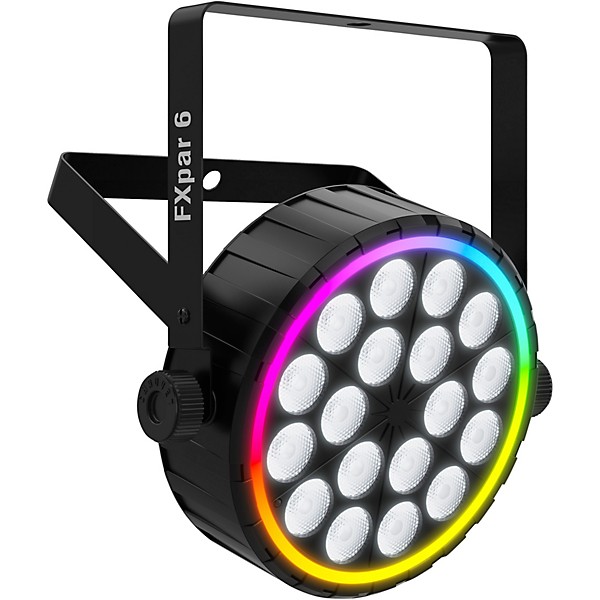

CHAUVET DJ FX Par 6 RGBW LED Par

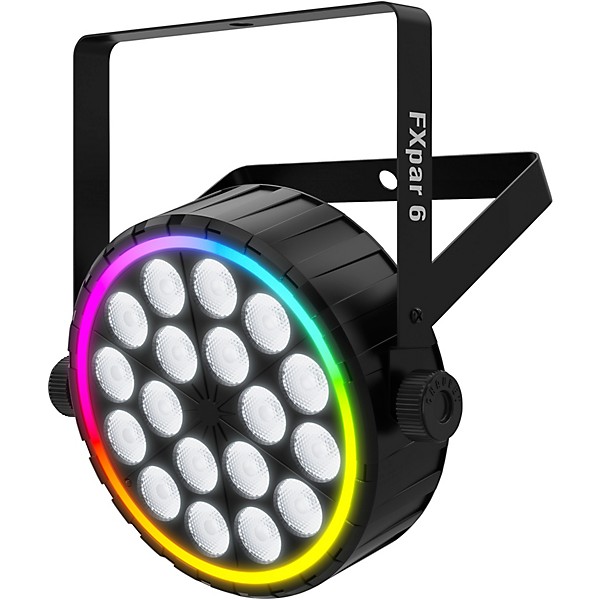

CHAUVET DJ FX Par 6 RGBW LED Par
CHAUVET DJ FX Par 6 RGBW LED Par

Features

  • Compact RGBW LED par with animated RGB ring for layered stage lighting effects
  • 18 quad-color RGBW LEDs deliver bright wash output and vivid color mixing
  • 51 outer-ring RGB LEDs add pixel-style motion and dynamic accent effects
  • Six control zones enable layered chases and animated lighting sequences
  • Built-in sound and auto programs generate energetic looks without DMX control
  • 3-, 6- and 11-channel DMX modes support simple setups or detailed programming
  • Flicker-free LED output ensures clean results for video and camera work
  • Power linking supports multiple fixtures while reducing cable clutter
  • Lightweight 3 lb. design allows easy transport and quick event setup
  • Compact 10.8" x 2.7" x 12" housing fits easily on crowded truss or stage rigs

Specs

General
  • Product type: LED wash fixture with RGB ring
  • Model: FX Par 6
  • Approvals: CE and RoHS
Light Source
  • Primary LEDs: 18 quad-color RGBW LEDs
  • Primary power: 52W 1A
  • Primary LED life: 50,000 hours
  • Ring LEDs: 51 RGB LEDs
  • Ring power: 6W 0.5A
  • Ring LED life: 50,000 hours
  • Illuminance: 5657 lux at 6.5'
  • Lumens: 3239
  • Beam angle: 20°
  • Field angle: 36°
Effects
  • Strobe rate: 0–20Hz
Control
  • DMX channels: 3, 6 and 11
  • DMX connectors: 3-pin XLR
  • Optional controller: IRC-6
Power
  • Voltage: 100–240V 50/60Hz auto-ranging
  • Power consumption at 120V: 63W 0.9A
  • Power consumption at 230V: 62W 0.6A
  • Power linking: 8 units at 120V and 12 units at 230V
Construction
  • Bracket mounting hole: 13 mm
Dimensions
  • Dimensions: 10.8" × 2.7" × 12"
  • Weight: 3 lb.

Warranty

All DMX products - 2 year limited warranty.
Special Effects controllers and fixtures - 1 year limited warranty.
"NV" products - 3 months limited warranty.
(All warranties are in effective from date of purchase.) No warranty on lamps, laser diodes, fuses, brushes, and belts.
