Description

The Smart Videohub 40x40 from Blackmagic Design is an advanced 40 x 40 multi format SD, HD and Ultra HD SDI router with built in video monitoring and spin knob control for visual routing so that you can quickly route your video by looking at it.Smart Videohub 40x40 fits 80 multi rate 6GSDI connections in a compact two rack unit size.

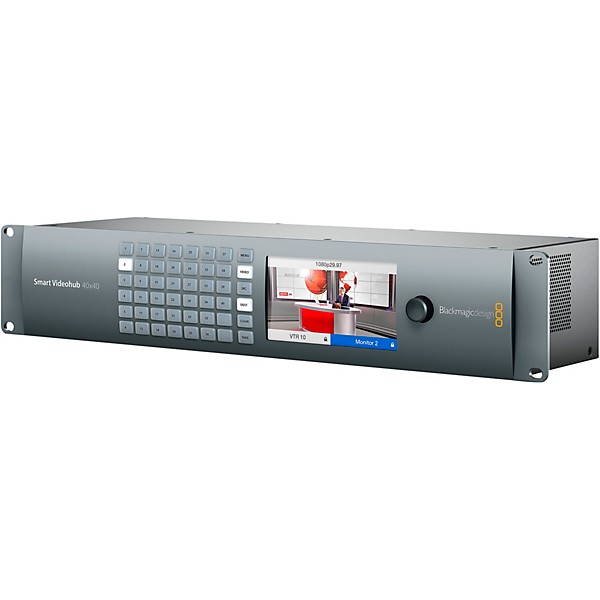

Blackmagic Design Smart Videohub 40x40

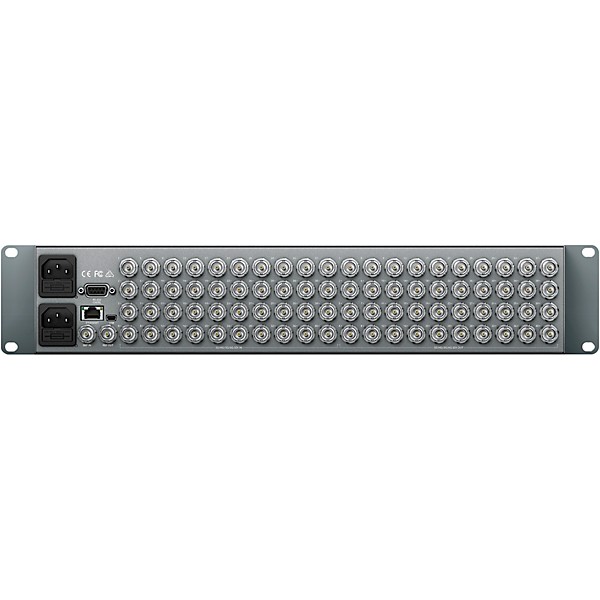

Blackmagic Design Smart Videohub 40x40
Blackmagic Design Smart Videohub 40x40

Features

  • Built in control panel with 40 buttons for local control of Videohub with 6 buttons and scroll wheel for menu control
  • 2.2" color control panel display
  • Includes Blackmagic Videohub software external control panel for Mac and Windows
  • Router control included free for Windows and Mac
  • Internal software upgrade via included updater application
  • Built in 5" LCD display for video and menu settings
  • Smart Videohub 40x40 and SD card with software and manual included

Specs

  • SDI Video inputs: 40 x 10-bit SD-SDI, HD-SDI and 6GSDI
  • SDI Video outputs: 40 x 10-bit SD-SDI, HD-SDI and 6GSDI
  • SDI Rates: DVB-ASI, 270Mb, 1.5G, 3G, 6G
  • SDI Reclocking: On all SDI outputs, auto switching between standard definition, high definition or 6G-SDI video
  • Reference input: Tri-Sync or Black Burst
  • Reference output: Reference terminating loop output
  • Control panel connection: Ethernet
  • Serial control connection: DB-9 RS-422
  • Multi rate support: Auto detection of SD, HD or 6G-SDI, simultaneous routing of 4K, HD, SD video and DVB-ASI
  • Updates: USB
  • Router control: 40 buttons for local control of Videohub, 6 buttons and scroll wheel for control of LCD display or RJ45 Ethernet
  • Router configuration: Via front panel LCD or RJ45 Ethernet, USB for firmware updates and IP address setting only
  • RS-422 Router control: 1 x input for controlling router crosspoint switching
  • Power supply: 2 x Internal 90-240V AC, IEC power cables required
  • Power consumption: 58 W
  • Length: 18.97"
  • Depth: 6.29"
  • Height: 3.46"
  • Weight: 9.92 lb.
