Description

The Smart Videohub 12G 40x40 from Blackmagic Design is an advanced 12G-SDI video router that supports any SD, HD or Ultra HD SDI format on the same router at the same time. The Smart Videohub 12G 40x40 features 40 inputs and 40 outputs and includes video reference, redundant power connections and an elegant machined metal front panel with large full HD LCD for monitoring and routing label display. Routing can be performed by direct button selection and the spin knob controller. 12G-SDI technology supports all SDI video standards up to 2160p60.

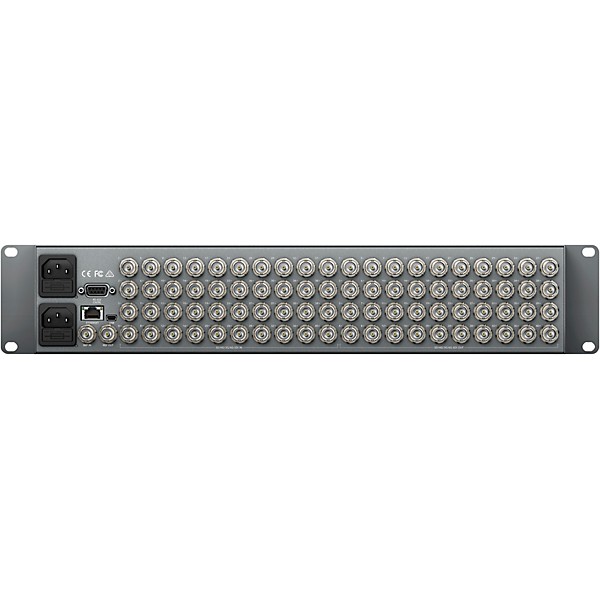

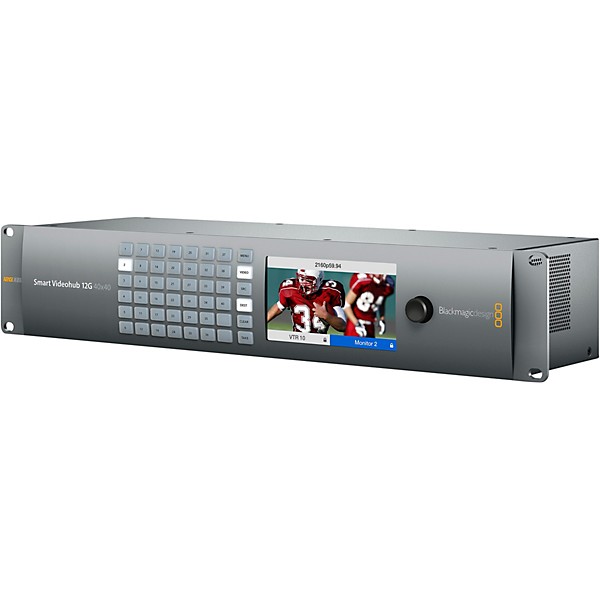

Blackmagic Design Smart Videohub 12G 40x40
Blackmagic Design Smart Videohub 12G 40x40
Blackmagic Design Smart Videohub 12G 40x40

Features

  • 40 Buttons for local control of Videohub with 6 buttons and scroll wheel for menu control
  • 5" LCD Color display on built in control panel for video and menu settings
  • Includes Blackmagic Videohub software control panel for Mac and Windows
  • Router control included free for Windows and Mac
  • Internal software upgrade via included updater application
  • Smart Videohub 12G 40x40 and SD card with software and manual included

Specs

  • SDI Video inputs: 40 x 10-bit SD-SDI, HD-SDI and 12G‑SDI
  • SDI Video outputs: 40 x 10-bit SD-SDI, HD-SDI and 12G‑SDI
  • SDI Rates: DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G
  • SDI Reclocking: On all SDI outputs
  • Reference inputs: Tri-Sync or Black Burst
  • Reference outputs: Reference terminating loop output
  • Control panel connection: Ethernet
  • Serial control connection: DB-9 RS-422
  • Multi rate support: Auto detection of SD, HD or 6G-SDI, simultaneous routing of 4K, HD, SD video and DVB-ASI
  • Updates: USB
  • Front panel router control: 40 buttons for local control of Videohub, 6 buttons and scroll wheel for control of LCD display or RJ45 Ethernet, RS-422
  • Router configuration: Via front panel LCD or RJ45 Ethernet
  • RS-422 Router control: 1 x input for controlling router crosspoint switching
  • Power supply: 2 x Internal 90-240V AC, IEC power cables required
  • Length: 18.97"
  • Depth: 6.29"
  • Height: 3.46"
  • Weight: 9.92 lb.
