beyerdynamic

Description

Beyerdynamic is one of few microphone manufacturers worldwide that still produce ribbon microphones. One of them is the legendary M 130. The M 130's unique double ribbon element has a superb transient response, creating a highly detailed sound with unequaled accuracy and transparency. The bidirectional figure eight polar pattern effectively suppresses unwanted interference from the sides. The M 130's balanced, uncolored sound handles a wide variety of applications. In conjunction with the hypercardioid M 160, the M 130 is ideal for creating an authentic stereo image through the use of the MS (Mid-Side) technique.

The M 130 gives excellent results when the Mid-Side technique is used to record or broadcast a true stereo image. Its rugged Design handles the demands of remote recording/broadcast sessions as easily as those of the studio. Alone, the M 130 allows the recording of background audience noise and concert hall ambience without unwanted resonances. In the recording studio it is effective with backing vocal groups, percussion and mounted toms.

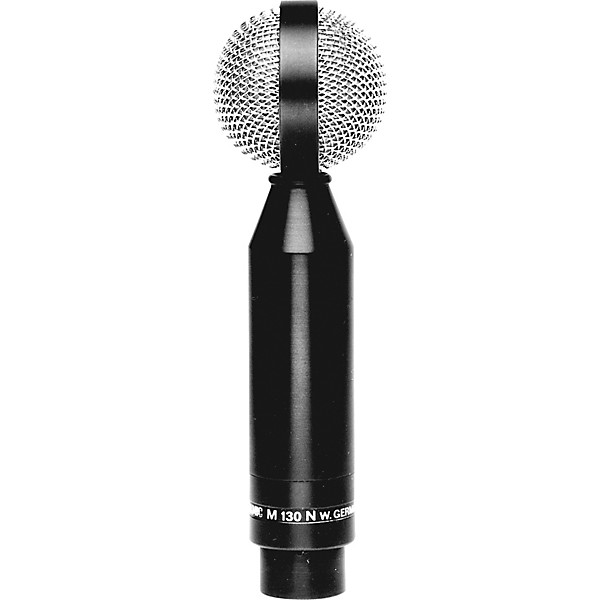

beyerdynamic M 130 Dynamic Double Ribbon Microphone - Figure Eight Pattern

Features

  • Double ribbon microphone
  • Consistent figure-eight polar pattern throughout frequency response
  • Superb transient response
  • Compact and rugged design
  • Characteristically warm and natural sound
  • Applications; studio recordings, instruments, overhead, and ambience recordings

Specs

  • Transducer type: Dynamic
  • Operating principle: Pressure gradient
  • Frequency response (distant miking): 40 - 18,000 Hz
  • Polar pattern: Figure-eight
  • Side attenuation: > 25 dB at 110 degrees
  • Open circuit voltage at 1 kHz (0dB = 1V/Pa): 1.0 mV/Pa _ -60 dBV
  • Nominal impedance: 200 ohms
  • Load impedance: ‰ 1000 ohms
  • Diaphragm: Pure aluminum
  • Case/finish: Brass
  • Connector: 3-pin XLR male
  • Length: 128 mm
  • Shaft diameter: 23 mm
  • Head diameter: 38.5 mm
  • Weight without cable: 150 g
