Description

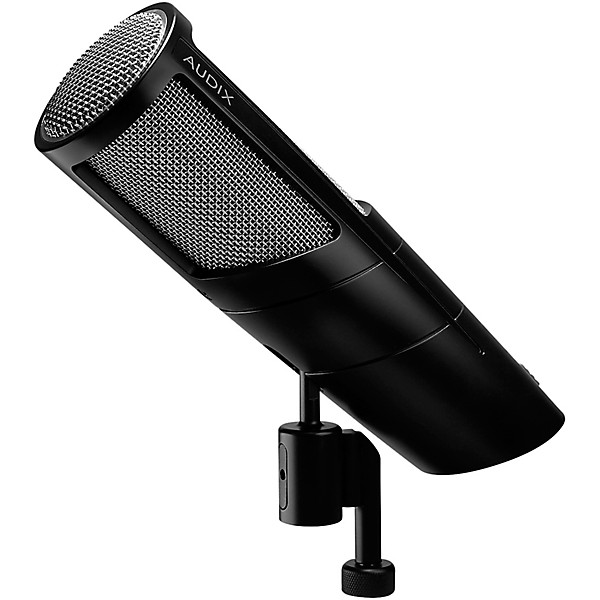

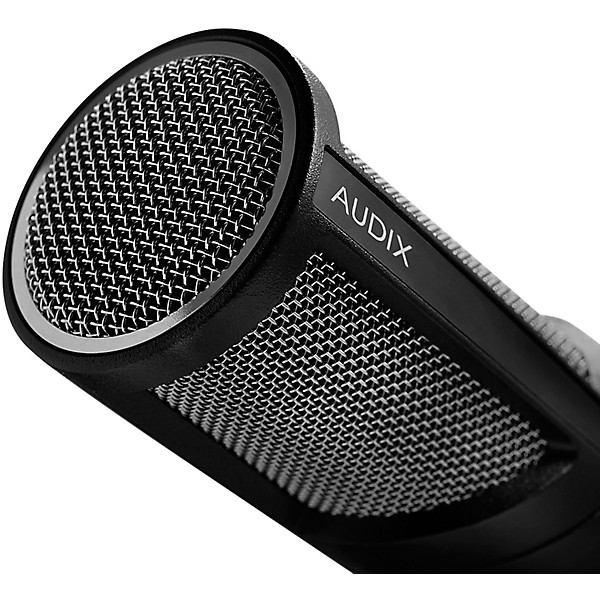

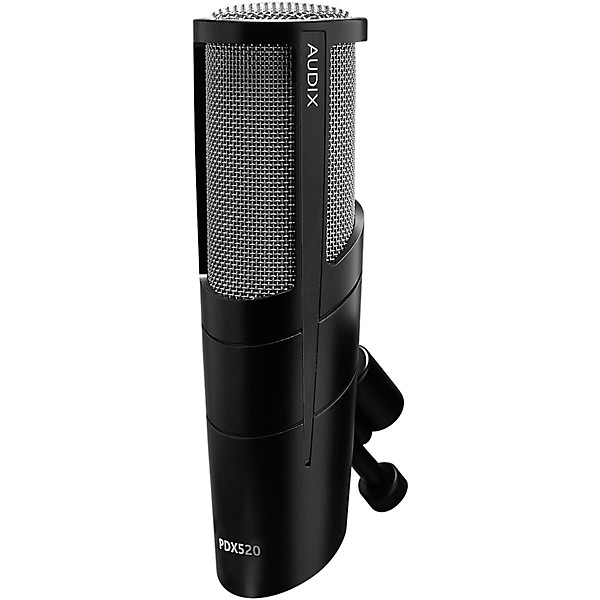

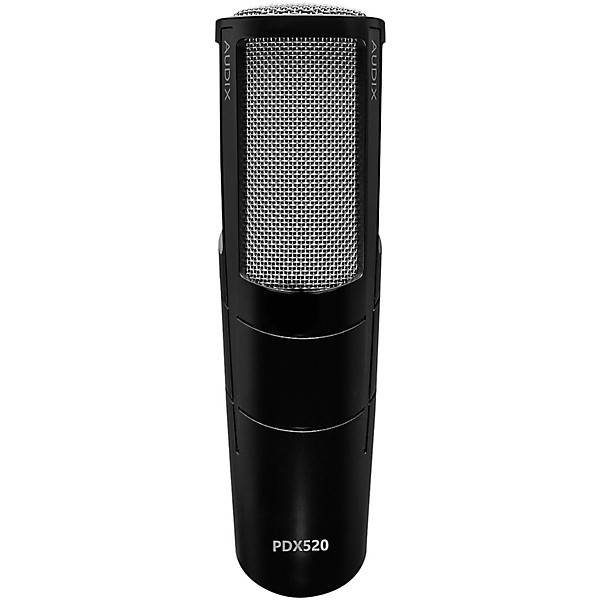

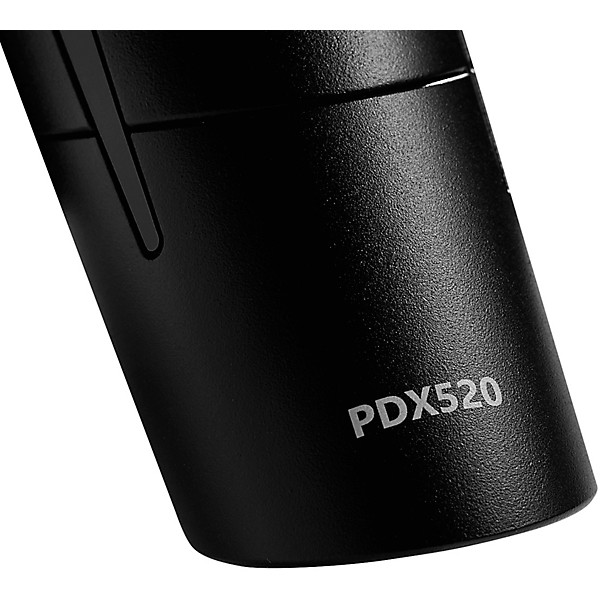

The AUDIX PDX520 is a premium dynamic microphone meticulously crafted for broadcast, podcasting, and studio applications, delivering true-to-life voice capture with a warm, natural tone. Designed for long-format content, it ensures intelligibility and auditory comfort while minimizing background noise with its cardioid polar pattern. Its thoughtful design includes built-in gain optimization, eliminating the need for preamp boosts and dual 2-position switches for effortless sound tailoring with low-cut and presence-boost options. With a solid metal body, integrated attachment arm and advanced internal vibration dampening inspired by the PDX720, the PDX520 is both robust and versatile. Proudly designed and built in the USA, it's a microphone engineered for professionals seeking exceptional audio performance.

Audix PDX520 Black
Audix PDX520 Black
Audix PDX520 Black
Features
  • Cardioid polar pattern ensures isolation in sub-optimal acoustic environments

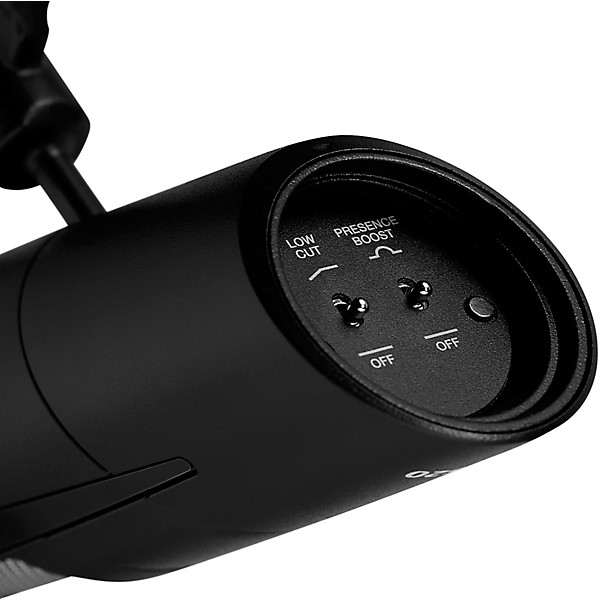

  • Two 2-position switches for adjusting low cut and presence boost on-the-fly
  • Vibration dampening capsule system housed in solid metal body for durability
  • True-to-life, full and accurate spoken voice capture for broadcast/podcasting
Specs
  • Transducer Type: Dynamic
  • Frequency Range (-6dB): 40Hz–16kHz
  • Polar Pattern: Cardioid
  • Output Impedance: 280 ohms
  • Sensitivity: 1.6 mVrms / Pa @ 1kHz / @ 0.5 Meter
  • Capsule Technology: VLM
  • Maximum SPL: >144dB SPL
  • Power Requirements: None

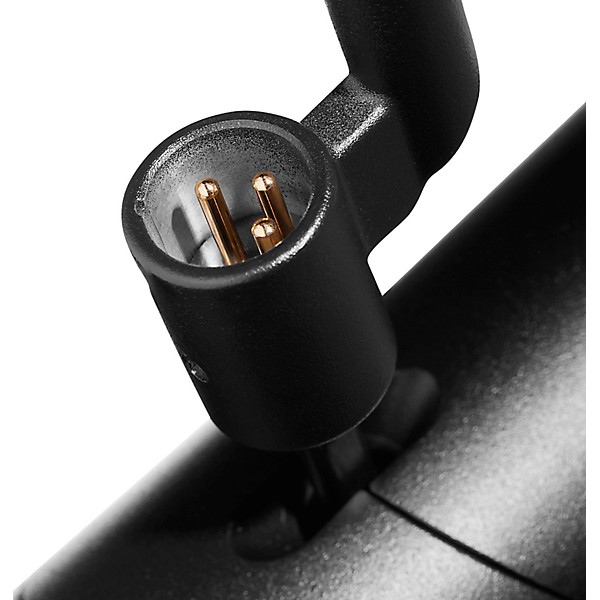

  • Connector: 3-pin XLRm
  • Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
  • Materials / Finish: Aluminum, Black finish, Nickel
  • Weight: 30.7 oz
  • Length: 8.4"
Warranty
One year parts and labor warranty (if no signs of abuse) on all mics.
