American Audio

Description

The XSP-12A powered speaker boasts a 12", 2-way active loudspeaker and a 300W biamplifier system encased in a lightweight cabinet. It features a 1.75" compression driver, time-aligned crossover, XLR and RCA balanced inputs, a built-in mixer, and an ABS nylon fiber cabinet with handle and full grille.

American Audio designed the XSP-12A speaker for use in both portable and permanently installed systems. The speaker includes a polemount slot and rubber feet on the bottom for portable applications. Rigging points on the top, bottom, and rear are provided and flight installations.

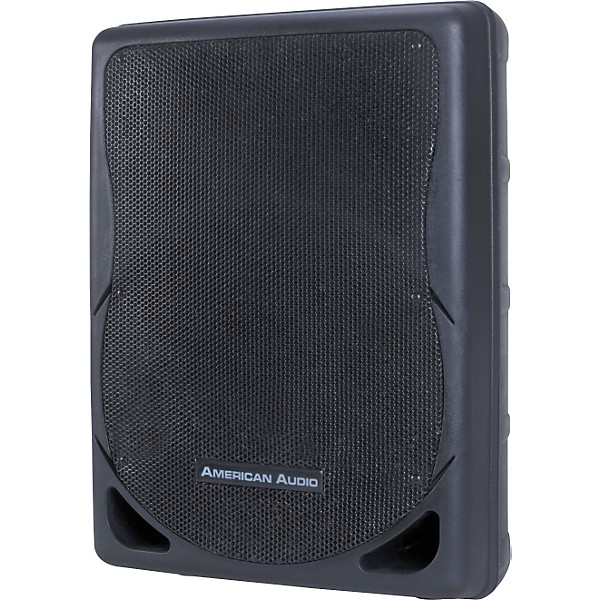

American Audio XSP-12A Powered Speaker

Features

  • 12-inch, 2-way powered speaker
  • 300W built-in, biamplifier system
  • Neodymium components
  • 1.75" compression driver
  • Time-aligned electronic crossover
  • Built-in mixer with: 1 line input, 1 mic input, treble and bass Control, channel and master volume
  • Built-in RCA inputs
  • 1/4" XLR through output
  • XLR and RCA balanced inputs
  • Separate Microphone Volume Controls
  • ABS nylon fiber cabinet with handle
  • Flyable or stand-mountable
  • Full grill

Specs

  • Dimensions: 23" H x 16" W x 12" D
  • Weight: 44 lb.
    • Speaker Specifications:
    • Frequency Response: 20Hz ” 20kHz
    • Crossover: 3.8k
    • Nominal Dispersion: 90 x 50 (HXV)
    Amplifier Specifications:
    • Power consumption: 12 Watts
    • Line: -20dB(100mV)
    • Microphone: -40dB(10mV)
    • Output Sensitivity: 97.4 ± 2dB/m/w
