collapse expand iconDescription

The API ASM164 is a 16-channel analog summing mixer that brings the company's legendary analog summing performance to your professional studio in a convenient 19" rackmount format. You'll experience the renowned API sound through its proprietary 2510 input and 2520 output op-amps that deliver a transparent signal path from inputs to outputs. With comprehensive rear panel connections offering balanced inputs/outputs and DB-25 connectors, the ASM164 seamlessly integrates into your existing studio setup. Flexible routing lets you assign each channel to the two stereo program busses (Mix-A and Mix-B) for versatile summing workflows.

The API ASM164 gives you precise level control with 31-detented steps and continuously variable panning with center detent. Comprehensive metering with 4-segment LED meters on each channel and analog VU meters on the main outputs ensures precise level monitoring. Backed by API's reputation for rugged, studio-grade construction and an external power supply, the ASM164 brings the iconic analog summing sound to your professional productions in a space-efficient package.

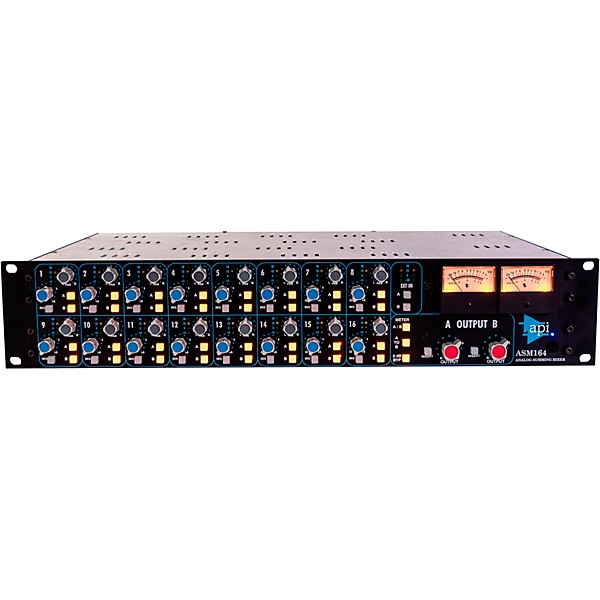

API ASM164 16-Channel Rackmount Analog Summing Mixer

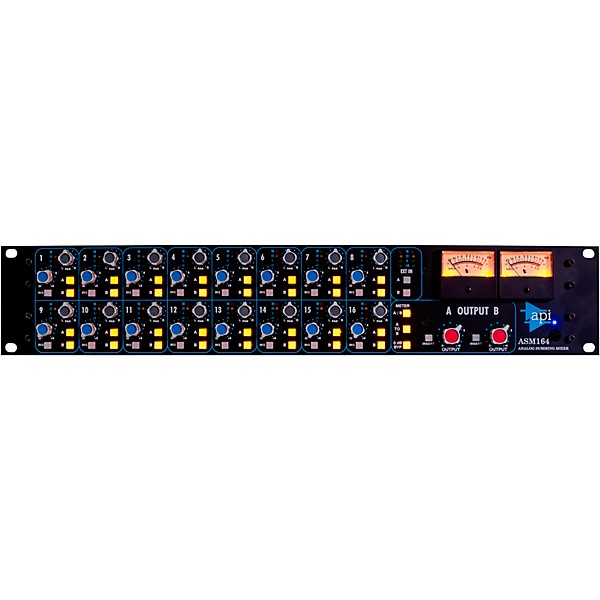

API ASM164 16-Channel Rackmount Analog Summing Mixer

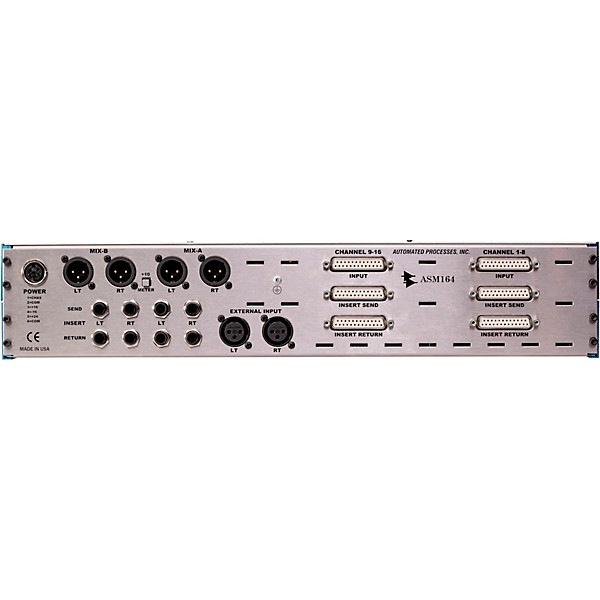

API ASM164 16-Channel Rackmount Analog Summing Mixer

collapse expand iconFeatures

  • 16 analog summing channels: Balanced line-level DB-25 connectors, API 2510 input op-amps
  • Two stereo program busses Mix-A and Mix-B: Assignable channels with variable panning
  • Signature API 2520 op-amps and proprietary output transformers for legendary API sound
  • 4-segment LED meters, 31-step detented level control, insert send/return per channel

collapse expand iconSpecs

  • Analog Summing Channels: 16
  • Connections: Balanced, Line-Level, DB-25 Connectors
  • Channel Level Control Bypass: Global 0dB Channel Level Control Bypass
  • OpAmps: Proprietary API 2510 Input OpAmps
  • Insert Points: Insert Send/Return on Each Channel
    • Meters
    • 4-Segment LED Level Meters for each channel
    • Analog Stereo Output Level VU Meters
    Mix Buses
    • Two Stereo Program Buses: Mix-A and Mix-B
    • Each Channel Assignable to Mix-A and/or Mix-B
    Controls
    • Continuously Variable Panning with Center Detent
    • 31-Step Detented Level Control
    • External Input: Balanced Stereo External Input (Assignable to Mix-A and/or Mix-B)
    • Output Stage: Signature API 2520 OpAmps and Proprietary Output Transformers
    • Rear Panel Connections: Comprehensive Rear Panel Connections with Balanced In/Out
    • Power Supply: External Power Supply
