Description

The Yorkville Elite EL18S 18" powered subwoofer delivers high-output low-frequency performance for live sound, mobile DJs and installed systems that demand consistent, controlled bass. Powered by a 3200W peak amplifier and an 18" driver with a 4" voice coil, the EL18S extends down to 35Hz, producing deep, articulate lows that support modern music, live bands and full-range PA systems. A rugged birch plywood enclosure and steel grille are built for repeated transport and demanding stage environments, while integrated handles, casters and pole-mount options simplify setup. Designed for dependable performance under pressure, the EL18S provides the low-end foundation needed to keep mixes balanced and impactful in a variety of venues.

High-Output Low-End Performance

The EL18S combines a high-power amplifier with an 18" driver to deliver deep, controlled bass across live sound applications. Its extended low-frequency response enhances kick drums, bass instruments and electronic content without sacrificing clarity. Whether supporting full bands or DJ systems, the subwoofer maintains consistent output and punch at higher volumes.

Flexible Connectivity and System Integration

Dual XLR inputs and high-passed outputs allow straightforward integration with tops and additional subwoofers. Output level control and onboard limiting help maintain clean performance, while status LEDs provide quick visual monitoring during setup and performance. These features make the EL18S adaptable to a variety of system configurations.

Rugged Birch Cabinet Construction

A 15 mm birch plywood enclosure provides durability and reduced vibration during high-output performance. The textured finish and steel grille help protect internal components, making the subwoofer suitable for touring, rental and installed applications where reliability matters.

Portable Design for Fast Setup

Integrated side and top handles, along with rear-mounted casters, make transport easier between venues and staging areas. Pole-mount capability supports satellite speaker setups, while the compact footprint allows flexible placement in tight spaces. From mobile rigs to permanent installations, the Yorkville Elite EL18S delivers dependable low-end performance with practical portability.

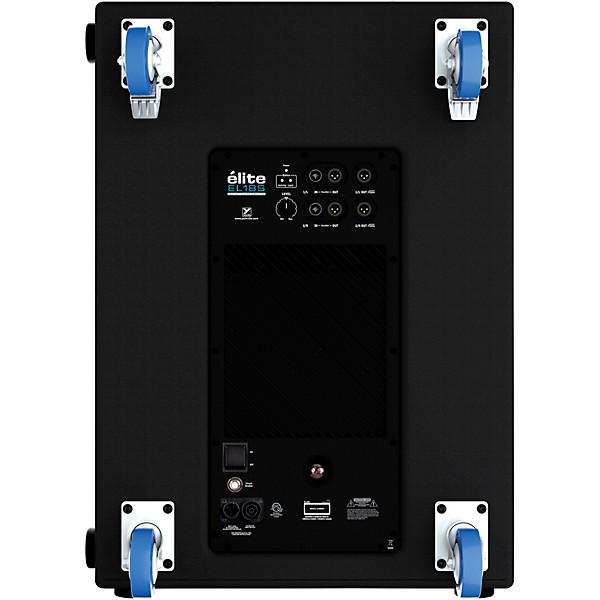

Yorkville Elite EL18S 18" Powered Subwoofer

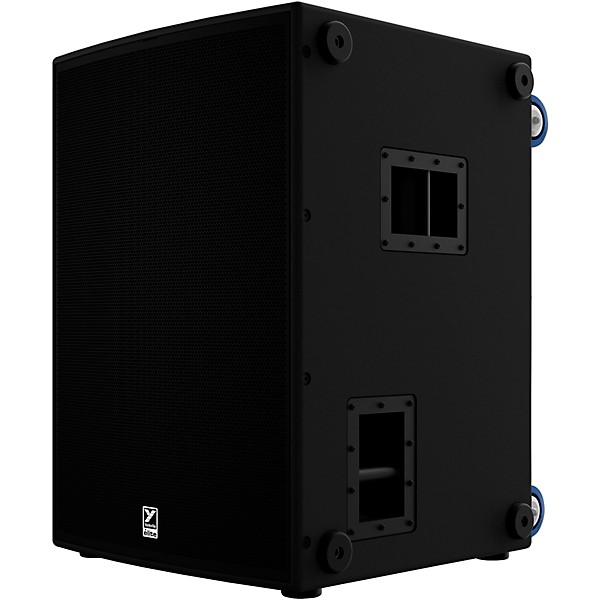

Yorkville Elite EL18S 18" Powered Subwoofer

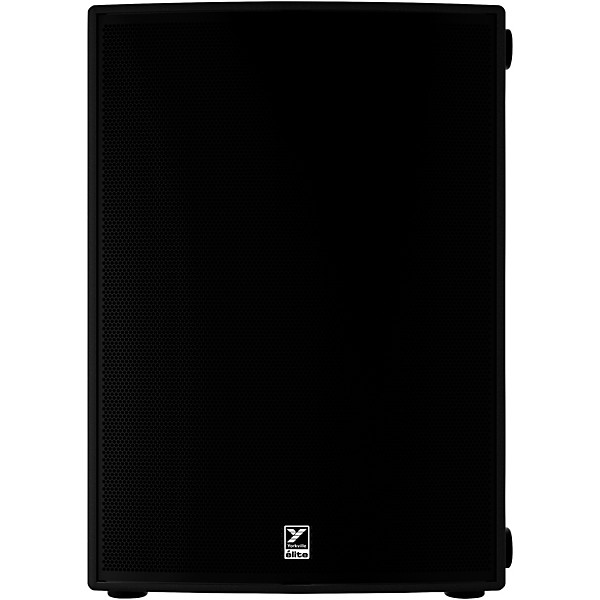

Yorkville Elite EL18S 18" Powered Subwoofer

Features

  • 3200W powered subwoofer delivers forceful low-end impact
  • 18” woofer reaches down to 35Hz for deep bass extension
  • Onboard limiter protects against overload during high SPL sets
  • Dual XLR inputs and parallel outputs simplify stage routing
  • High-passed XLR outs allow separate sub and main feeds
  • Bar handles and four casters make transport manageable for crews
  • Pole mount adapters let you stack mains or monitors with ease
  • Rugged birch cabinet stands up to heavy touring demands
  • PowerCON TRUE1 connectors ensure secure power in live environments

Specs

General
  • Product type: Powered subwoofer
  • Series: Elite
  • Model: EL18S
Audio Performance
  • Frequency response: 35Hz–100Hz
  • Maximum SPL: 140dB peak (134dB continuous)
  • Crossover frequency: 100Hz
Components
  • Low frequency driver: 18" woofer with 4" voice coil
Amplifier
  • Peak power: 3200W
  • Program power: 1600W
Controls
  • Level control: Output level
Connectivity
  • Inputs: 2 × XLR/TRS
  • Outputs: 2 × XLR high-pass, 2 × XLR full-range link
Indicators
  • LED indicators: Power, activity, protection
Power
  • Power connection: powerCON TRUE1 in/out
  • Power consumption: 4A typical, 10A max
Construction
  • Cabinet material: 15 mm birch plywood
  • Finish: Textured paint
  • Grille: Powder-coated steel
  • Handles: 2 top, 4 side, 2 bottom
  • Pole mount: 1 top, 1 side (1 3/8")
  • Wheels: 4 swivel casters (rear)
Dimensions
  • Dimensions: 24.8" × 25.7" × 35.7"
  • Depth with casters: 29.8"
  • Weight: 176 lb.
