Description

The PMC-05ProIII DX is a DJ mixer that advances beyond the great PMC-05Pro. With additional input/output connections, the PMC05Pro III DX mixer can work with DJ software via audio interfaces, and offers simple setup in clubs and other venues. With this Vestax mixer DJs can switch their gear easily with other DJs. USB connection is an option simply by installing the TUB-1 USB board to the PMC05ProIII DX mixer's front panel. The audio mixer's CF monitor control and Master level fader are near the top to free up more battle space around the crossfader for dynamic scratches and moves.

The Vestax PMC-05ProIII DX DJ mixer's main control section is designed for operability and reliability. The monitor sound can be selected from MASTER and CUE, useful when monitoring the mix before going on stage and practicing scratches on your own, with the Monitor Select Switch.

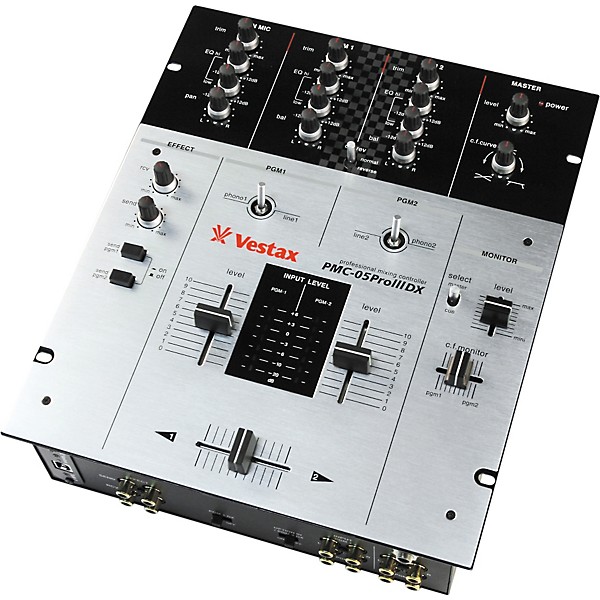

Vestax PMC-05ProIII DX 2-Channel DJ mixer

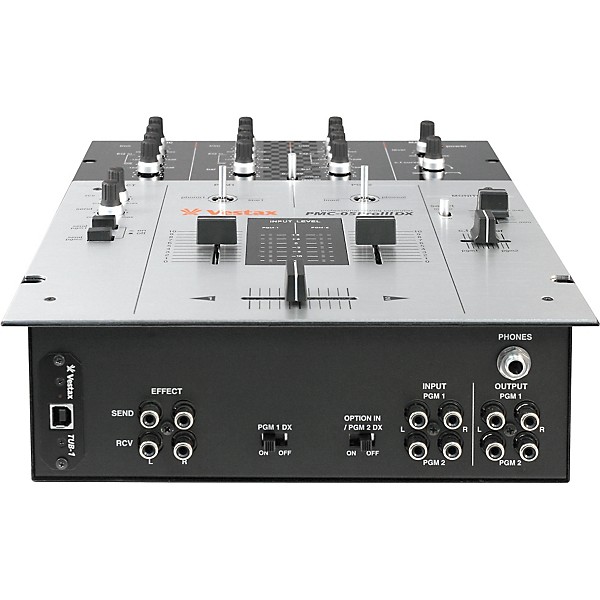

Vestax PMC-05ProIII DX 2-Channel DJ mixer

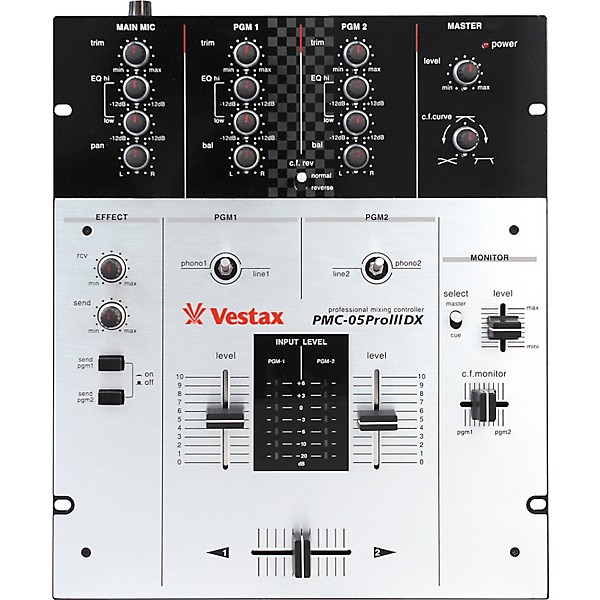

Vestax PMC-05ProIII DX 2-Channel DJ mixer

Features

  • 2 PGM (phono and line, with switch) and 1 mic channel
  • 2-band EQ per channel
  • Trim
  • Balance/pan and master level control
  • Level fader per channel
  • PGM on/off switches
  • Crossfader (with crossfader curve control)
  • Crossfader and fader level monitor controls
  • 2 stereo phono and 2 stereo line and 2 mic inputs
  • Effects loop
  • Stereo PGM and RCA line and headphones outputs

Specs

  • INPUT (REAR)
  • Line In: -10dBV(RCA L/R) x 2
  • Phono In: -42dBV(1KHz) (RCA L/R) x 2
  • Mic In: -54dBV x 2
  • INPUT (FRONT)
  • Effect RCV: -10dBV(RCA L/R) x 1
  • PGM 1 DX In (RCA L/R) x1
  • PGM 2 DX In (RCA L/R) x 1
  • OUTPUT (REAR)
  • Master Out: -10dBV(RCA L/R) x 2
  • Line Out: -10dBV(RCA L/R) x 2(PARA)
  • OUTPUT (FRONT)
  • Effect Send: -10dBV(RCA L/R) x 1
  • PGM 1 DX Out (RCA L/R) x 1
  • PGM 2 DX Out (RCA L/R) x 1
  • EQ
  • PGM CH: 2-BAND, MIC CH :2-BAND
  • FADER
  • CF-PCV
  • IF-05PCV
  • Size / Weight
  • 262(W) x 106(H) x 320(D)mm / 4.0kg
  • POWER
  • AC-14
