Toft Audio Designs

Description

The Toft Audio Designs ATC-2 is a high-quality microphone preamp with selectable 48-volt phantom power, direct instrument input and selectable line input. It features classic V.U. metering, extremely musical 4-band EQ, 50Hz low pass filter, compression, and more.

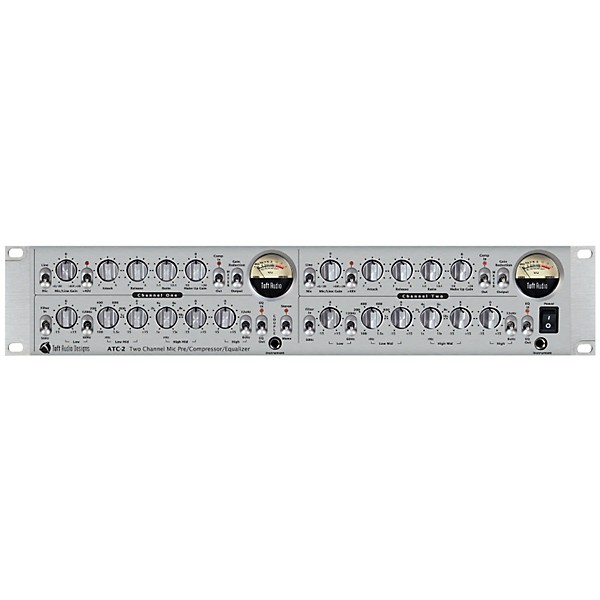

Toft Audio Designs ATC-2 Dual Channel Microphone Preamp, EQ, FET Compressor

Features

  • High-quality mic preamp with selectable 48 volt phantom power, direct instrument input and selectable line input
  • Classic F.E. ratio. V.U. metering shows gain reduction and output level
  • Extremely musical 4-band equalization with shelving high and low frequencies having selectable turnover points
  • 2 individual swept mid ranges and 50Hz low pass filter
  • Stereo link facility for the 2 compressors means they can operate individually or as a stereo pair
  • Compact 2U rackmounting unit effectively provides 2 feature-packed recording channels in one conveniently sized rack unit
  • Balanced XLR input for mic, balanced XLR and jack for line inputs
  • 1/4" thick anodized aluminum sculptured front panel and solid construction
  • Extremely competitive price.

Specs

  • Microphone Impedance: >1.2kOhm balanced
  • Line Impedance:
    >15kOhm electronically balanced
  • Instrument Impedance:
    >100kOhm unbalanced
  • Microphone Gain: 60dB
  • Line Gain: -20 to +20dB
  • Instrument Gain: 36dB
  • Output Impedances: XLR:
    <100 ohm electronically balanced Jack: <100 ohm unbalanced
  • Microphone Input Noise: Microphone: <-128dBu ref 150 ohm (20Hz-20kHz)
  • Line Input Noise: Line: <-75dBu (Eq. In, 20Hz-20kHz) <-70dBu (Compressor In, 20Hz-20kHz)
  • Maximum Mic Levels: Mic Input: <+24dBu at all frequencies (Compressor out)<+15dBu at all frequencies (Compressor in
  • Maximum Line Levels: Line Input: <+24dBu at all frequencies (Compressor out) <+15dBu at all frequencies (Compressor in)
  • Maximum Instrument Levels: Instrument Input: <+24dBu at all frequencies (Compressor out) <+15dBu at all frequencies (Compressor in)
