Description

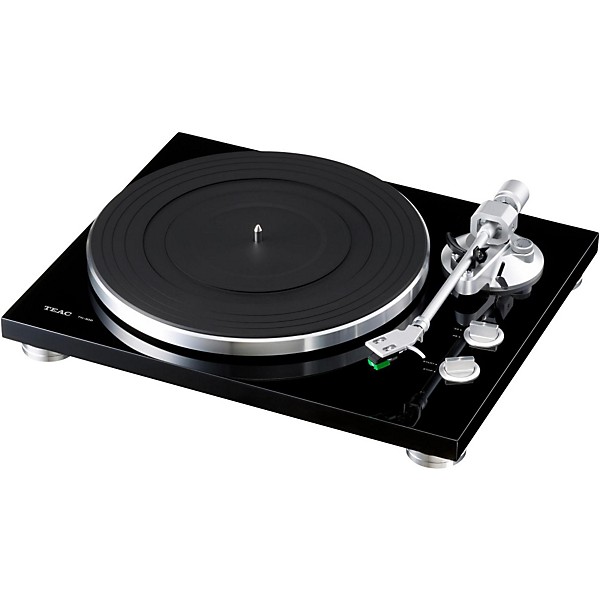

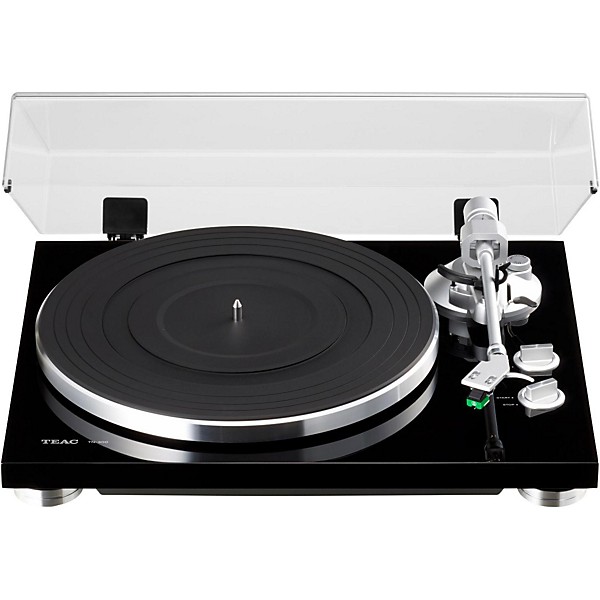

The TN-300 belt-drive analog turntable is housed in a stylish chassis, containing an MM Phono equalizer amplifier with USB output. Both Phono and Line outputs are supplied, which allows you to play vinyl into powered speakers or a stereo without a Phono input. Transfer music from vinyl records to your Mac or PC using the USB digital output. CD quality digital archiving via USB preserves your vinyl collection for use on a smartphone or Digital Audio Player.

With the included audio-technica AT95E VM cartridge, the TN-300 sounds great right out of the box. An aluminum, die-cast, High inertia platter is also included. The TN-300 is the perfect turntable for any music lover from first time users to audiophiles, with high-quality sound and sturdy yet stylish design.
TEAC TN-300 Analog Record Player with Phono EQ and USB Black
TEAC TN-300 Analog Record Player with Phono EQ and USB Black
TEAC TN-300 Analog Record Player with Phono EQ and USB Black

Features

Turntable section
  • Drive System: Belt Drive
  • Motor: DC Motor
  • Speed: 33 1/3 RPM, 45 RPM
  • Rotation Speed Variation: +/–2%
  • Wow and Flutter: 0.20%
  • Signal-to-Noise Ratio: 67dB or higher (A-weighted, 20kHz LPF)
  • 60dB or higher (unweighted, 20kHz LPF):

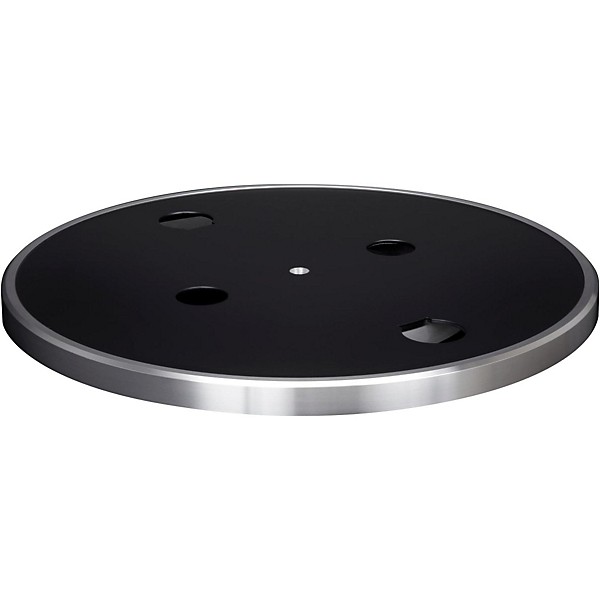

  • Platter: Aluminum Die-cast
  • Diameter of Platter: 12", 30cm
Tonearm section
  • Type: Static Balance, Straight
  • Effective Arm Length: 8.8", 223mm
  • Stylus Pressure Range: 0 to 5g
  • Supported Cartridge Weight: 3.5 to 6.5g
  • Anti-skating Adjustment: Supported

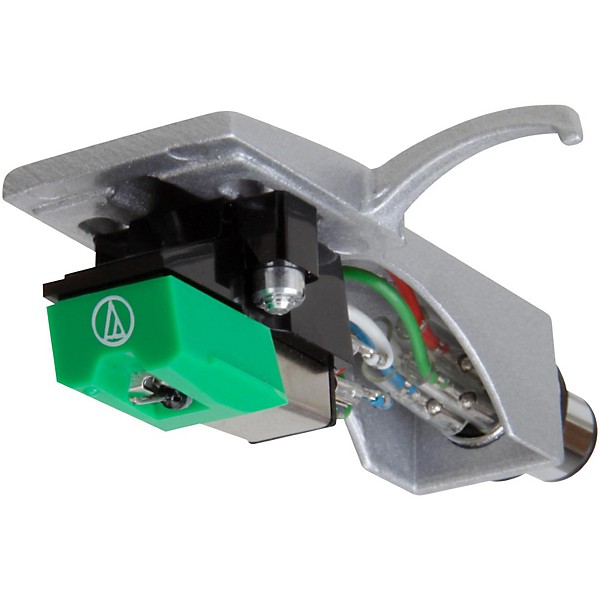

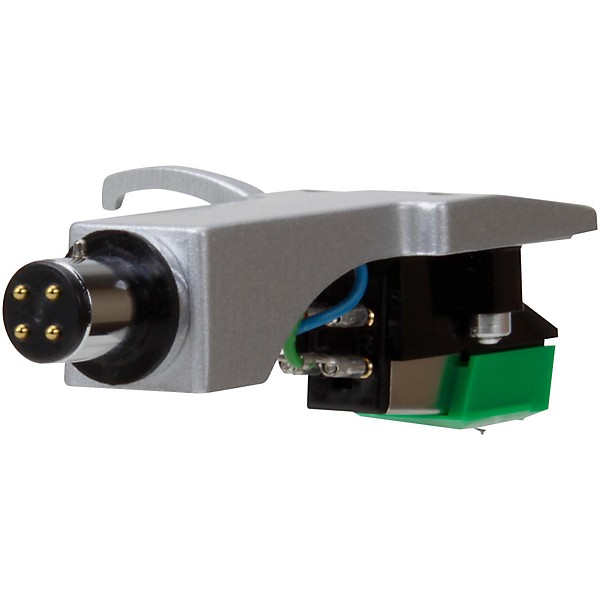

Cartridge section
  • Type: MM type (audio-technica AT95E factory installed)
  • Stylus Shape: Elliptical
  • Stylus Construction: Bonded Round Shank
  • Mount: Half inch
  • Frequency Response: 20Hz to 20kHz
  • Channel Separation: 20dB at 1kHz
  • Channel Balance: 2.0dB
  • Tracking Force: 1.5 to 2.5g
  • Vertical Tracking Angle: 20 degrees
  • Supported Load Impedance: 47k ohms
  • Output Voltage: 4.5mV +/–3dB
  • Stylus Pressure: 2.0g +/–0.5g
  • Cartridge Weight: 5.7g +/–0.5g
  • Head-shell Weight: 10g (including Screws, Nuts and Wires)
  • Replacement Stylus: audio-technica ATN95E
Phono Equalizer Amplifier
  • Type of Amplifier: MM type (On/Thru switchable)
Analog Output
  • Connector: RCA Pin jack (Gold-plated)
  • Output Voltage: Phono/Line switchable
  • Phono Output: 4.5mV +/–3dB
  • Line Output: 120mV (–13dBV)
USB Output section
  • Connector: USB B type
  • Output Signal: PCM 48kHz/16-bit
  • Supported OS: Windows 7, Windows 8, Windows 8.1, Windows 10
  • OS X Lion(10.7), OS X Mountain Lion(10.8), OS X Mavericks(10.9):
Power
  • : AC 100 to 240V, 50/60Hz
Power Consumption
  • : 1.5W (less than 0.5W at Standby)
Overall Dimensions
  •
  • (W x H x D): 16.5" x 4.6" x 14.0", 420 x 117 x 356 mm
Weight
  • : Approx. 10.8 lbs.  4.9 kg
Accessories
  • : Rubber Sheet, EP Adapter, Counter Weight,  Head-shell (audio-technica AT95E), Platter, Dust Cover, Rubber Feet fro Dust Cover x2, Hinge x2, RCA Audio Cable, AC Adapter (GPE053A-120050-Z), Owner's Manual (including Warranty Card)

Reviews

3

2 Reviews

100%

of respondents would recommend this to a friend

Filters
Describe Yourself
  1. Practical1
  2. Technically Challenged1
Pros
  1. Durable1
  2. Easy To Set Up1
  3. Great Sound1
  4. Simple Controls1

Reviewed by 2 customers

  • Don't Buy. Discontinued.

    1

    Verified Buyer

    submitted8 years ago

    byDAN

    fromundisclosed

    Very disappointed and was not a fan that this was discontinued. I didn't want to deal with trying to find parts. I returned it and got an Audio-Technica turntable that I am very satisfied with.

  • Christmas present for 60's "geezer"

    5

    Verified Buyer

    submitted9 years ago

    byYvonne

    fromYorba Linda, Ca

    My husband absolutely loves this turntable. He is now recollecting all the albums we gave away years ago! The sound is great and I love listening as well. Thanks to Guitar Center for helping with this purchase.

  • Previous
  • 1
  • Next

Q&A

Have a question about this product? Our expert Gear Advisers have the answers.

  • submitted6 years ago

    asked byGOPI

    from-- US/Canada Only --

    How would you rip music from your vinyls into your PC using the USB output port which is at the back end of the turntable? Thank you.

    Open Reply - Gear-Head
    This would record into your audio software.
