Description

The TASCAM 202mkIV rackmount dual cassette player is ideally suited for both dubbing and continuous-looping playback applications. Two twin-head cassette decks recorder in a durable rack-mount housing can be used separately or in tandem during recording and playback. Additional features include dual recording speeds, computerized program search and other functions that make editing tapes quick and easy.

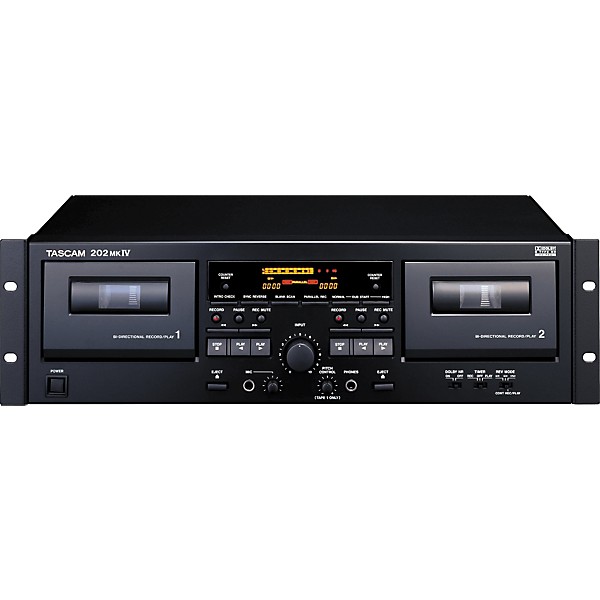

TASCAM 202MKIV Professional Dual-Well Cassette Deck

Features

  • Dual Auto Reverse
  • +/-12% Pitch Control on Deck 1
  • Front Mic input with Level Control
  • Dolby B Noise Reduction
  • Power on Play and Record
  • 3-U Rack-mountable
  • Continuous Recording
  • Synchro Reverse Dubbing
  • Both Decks Record for Simultaneous Masters
  • Blank Scan, Intro Check, and Timer Playback
  • Normal and High Speed Dubbing

Specs

  • Tape: Compact cassette tape C-60/90 (Normal and High Position, Metal: playback only)
  • Track Format: 4-track, 2-channel
  • Head Configuration: Record/repro combination rotary head x 1 (TAPE I & TAPE II), Erase head x 1 (TAPE I & TAPE II)
  • Motor: DC servo motor x 1 (TAPE I & TAPE II)
  • Tape Speed: 4.76 cm/sec
  • Pitch Control: approx. +/- 12%
  • Line Input: RCA
  • Nominal Input Level: -18dBV (0.1V)
  • Input Impedance: 50k ohm
  • Line Output: RCA
  • Nominal Output Level: -6.7dBV (0.46V)
  • Output Load Impedance: 50k ohm
  • Frequency Response: 30 Hz to 18 kHz +/-3dB (High Position), 30 Hz to 17 kHz +/-3dB, (Normal)
  • Signal-to-Noise Ratio: 58 dB (with Dolby off), 69 dB (with Dolby on)
  • Wow and Flutter: 0.09% (WRMS)
  • Fast Winding Time : 110 sec. (approx.) with C-60 cassette
  • Headphone: 1/4" stereo phone jack, 1 mW x 2 (32ohm)
  • Power Requirement: 120 V / 230V, 50-60Hz, 230 V 50 Hz
  • Consumption: 22 W
  • Dimensions (W x H x D): 483 mm x 127 mm x 292 mm
  • Weight: 4.1kg
